LaboPad
Tablet microscope camera system

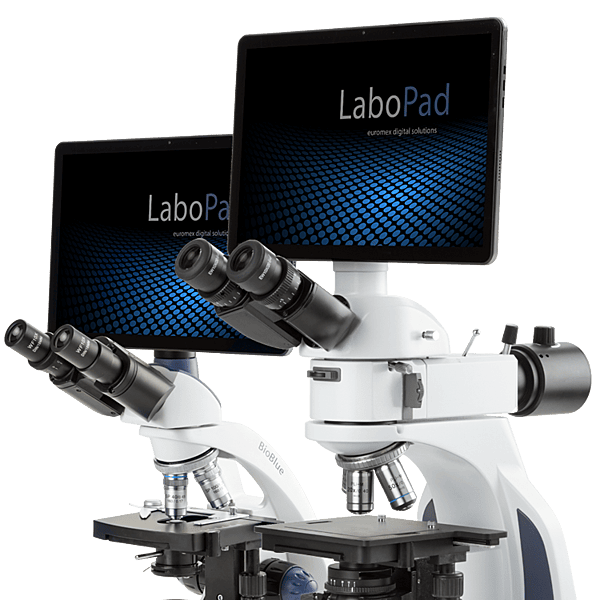

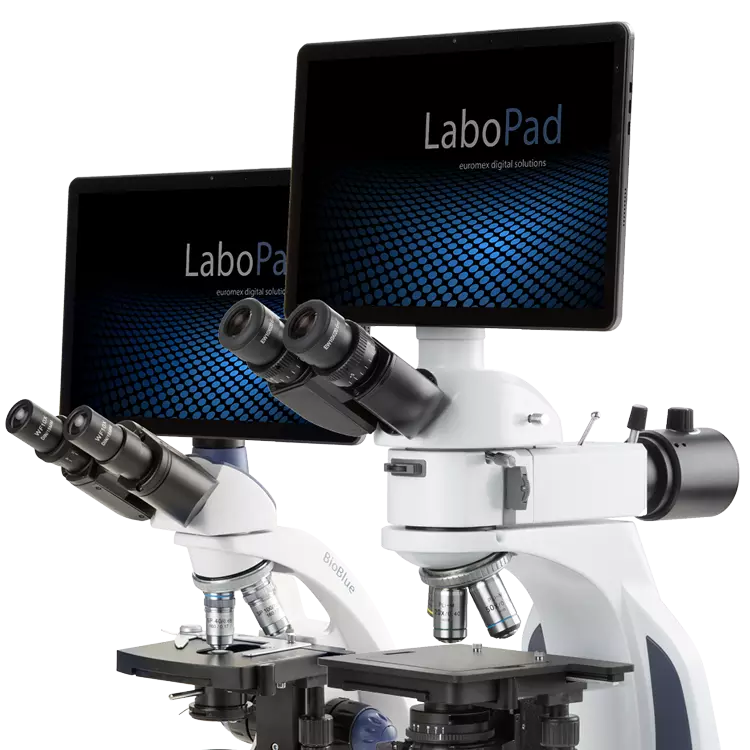

Discover the LaboPad – a versatile tablet microscope camera system that can easily be mounted onto your microscope. Capture stunning images and videos, then edit and analyze them with powerful ImageFocus software. The LaboPad can be detached for use as a regular tablet, offering flexibility in and out of the lab. An optional attachable keyboard adds even more functionality, making it the perfect all-in-one solution for modern microscopy
- 12.1” Tablet with microscope camera
- 2.1, 5.1, 12.0 or 4.0 MP camera
- 2160 x 1440 pixels HD touch screen
- Windows 11
- ImageFocus Plus software for PC
- IF Alpha for WiFi enabled PC, Android and iOS
- Tablet can be fully detached from camera
- Optional keyboard
ProPad tablet
All LaboPads have ImageFocus preinstalled
The WiFi model connects to the pad via USB or WiFi, but allows use of the ImageFocus apps (IOS/Android)
All LaboPad models are supplied with a C-mount objective that fits the standard 23.2 mm trinocular tubes
PROCESSOR
Quad Core max 3.3 GHz HD graphics processor
SCREEN
12.1 inch IPS 2160*1440 / 3:2
MEMORY
12 GB
STORAGE
512 GB Flash HDD, micro SD/SDHC slot for cards up to 64 GB
WEBCAM
2 MP front and 5 MP rear camera
CONNECTIVITY
2x USB-C, WiFi 6 and Bluetooth 4.0
AUDIO
Stereo with 3.5 mm audio jack, internal microphone and speaker
BATTERY
Lithium, 38Wh, 5000mA
WEIGHT
0.8 KG (tablet) 4.8 kg (complete)
SYSTEM
Windows 11
SOFTWARE
LaboPad USB camera works with ImageFocus Plus software and LaboPad with WiFi camera works with ImageFocus Alpha. The WiFi camera can also be operated using IOS or Android apps
Model and appearance of the tablet can be subject to change without notice
