iScope infectious diseases

• LED illumination for long lifespan
• High-resolution optical system
• Rugged, field-ready design
• Ergonomic viewing and intuitive controls
• Objectives 40x and 100x without coverglass correction (with coverglass correction optional)
• Medical device IVDR
• Optional wooden case
• Optional (solar) battery pack (only with a new microscope)
• Optional mirror attachment

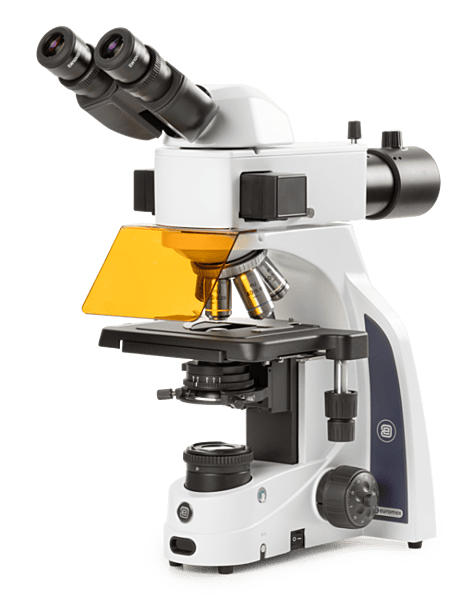

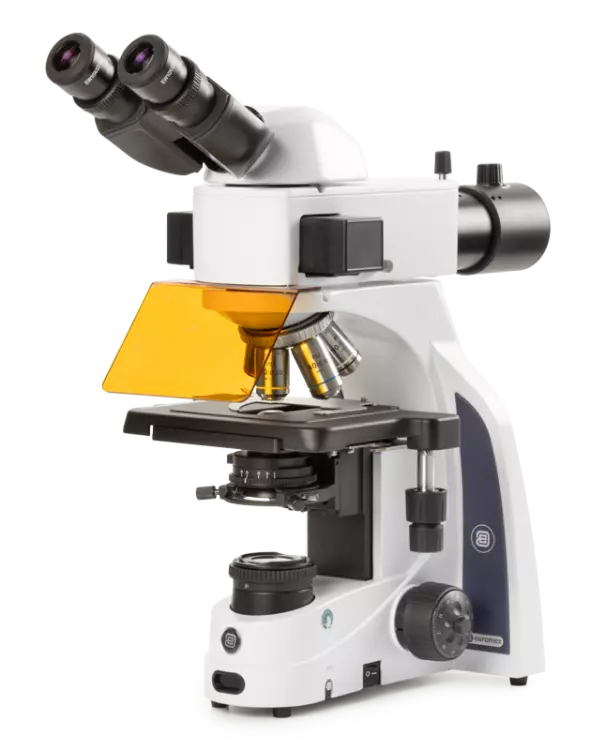

ISCOPE FOR TB SCREENING
Fluorescence
Designed for the detection of Mycobacterium tuberculosis, this model features a powerful LED fluorescence illumination system optimized for Auramine O staining techniques. Its high-contrast optics and ergonomic build support long hours of screening with minimal fatigue, making it ideal for labs and decentralized testing programs

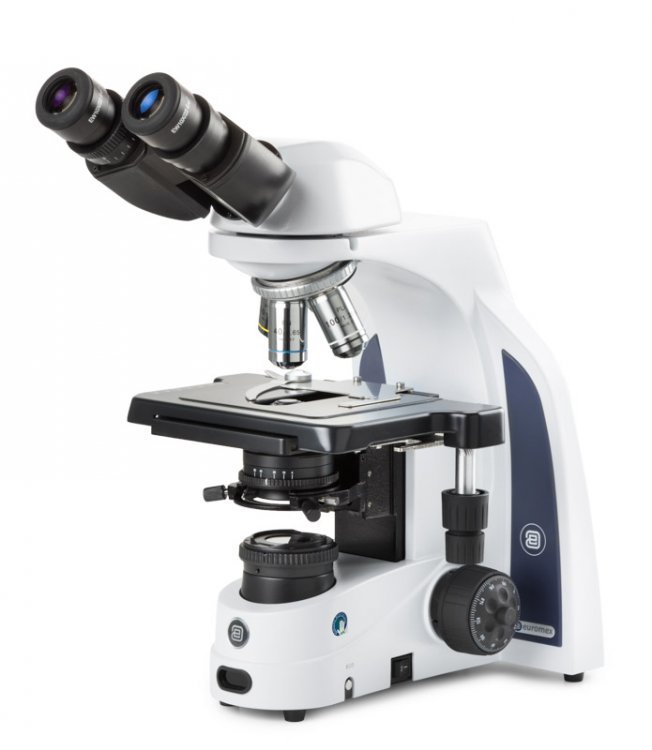

ISCOPE FOR MALARIA SCREENING
Ziehl-Neelsen (ZN) microscopy
Purpose-built brightfield microscope for Giemsa-stained and Ziehl-Neelsen smear examination and general lab use. This edition of the iScope ensures accurate detection of Plasmodium parasites at every developmental stage. It equally does the same outstanding job for Ziehl-Neelsen microscopy. Acid-Fast Bacilli (AFB) stained samples using ZN allow quick diagnoses in a reliable set-up

HEAD

• Binocular and trinocular Siedentopf type heads with 30° inclined tubes. Interpupillary distance from 48 to 76 mm.
• The trinocular head of the Plan infinity corrected models has an optical path selector (100:0 / 50:50) and ± 5 diopter adjustments on both Ø 30 mm tubes
• A unique rotating system allows the ergonomic positioning of both tubes in a high (431 mm) and in a low position (397 mm)
• The trinocular head comes with a Ø 23.2 mm photo port

ERGONOMIC TILTING HEAD
Optional ergonomic 5 to 35° tilting head supplied with EWF 10x/22 mm eyepieces, interpupillary distance 48-75 mm and optional photo attachment with standard Ø 23.2 mm tube (only infinity corrected models)

To order an iScope® with tilting head use reference IS.1158-xxx
To order an iScope® with tilting head and photo tube attachment use reference IS.1159-xxx

OBJECTIVES - 45 MM PARFOCAL
These iScope microscopes are supplied with plan infinity corrected objectives 4x, 10x, 40x, and 100x oil immersion. The 40x and 100x PLI objectives are designed for use without cover glass. Alternatively, the same objectives with cover glass correction are available upon request. For optional objectives, see “Accecories”

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

NOSEPIECE
Revolving quintuple reversed nosepiece for max. five objectives

STAGE
187/230 x 140 mm rackless stage equipped with double slide holder and integrated 79 x 52 mm X-Y mechanical stage. The iScope® rackless stage has no protruding parts, enables more smooth movements and is safer

CONDENSER FOR BRIGHTFIELD
The standard height adjustable Abbe N.A. 1.25 condenser for brightfield accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/S100x oil immersion IOS objectives for economical phase contrast. With magnification indication. A slider with a simple dark stop for darkfield up to 400x magnification is also available

FOCUSING
Coaxial coarse and fine adjustments, 200 graduations, 1 μm per graduation, 200 μm per rotation, total travel range is approximately 24 mm. Supplied with an adjustable rack stop to prevent damage to sample and objectives. The coarse adjustments are equipped with friction control

NEOLED™ ILLUMINATION

• 3 W adjustable Köhler NeoLED™ diascopic illumination with internal 100-240 V power supply
• The innovative NeoLED™ design offers larger apertures, allowing the optical system of the  iScope® microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics. Other benefits of the NeoLED™ is the low energy consumption, no heating and a long operating life span
• The Köhler illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving power of the optics. Also available for other models as option

normal LED

NeoLED™

ILLUMINATION FOR FLUORESCENCE
single position blue LED fluorescence attachment designed for Auramine stained samples:

• Blue LED illumination for epi-fluorescence with peak in the auramine bandwidth
• LED peak wavelength and bandwidth includes the auramine band 429-435 nm for maximum efficiency

Auramine fluorescence filter curve

ICARE SENSOR
The unique iCare Sensor is developed to avoid unnecessary loss of energy. The illumination of the microscope automatically switches off shortly after microscopists step away from their position

CSS – CABLE STORAGE SYSTEM

• iScope® allows users to easily insert the power cable into the back of the instrument, which enables easy storage
• The integrated carrying grip at the back of the microscope ensures safe transportation of the microscope

APL (Antimicrobial Protection Layer)
APL is a revolutionary paint treatment applied to the most critical parts of our products. A microscope with APL will restrict the growth of micro-organisms, including bacteria and mold

OPTIONAL BATTERY POWER SUPPLY
These versions of iScope are equipped with a power input that allows the use of optional rechargeable (solar) battery packs. This feature enables cordless operation, providing greater flexibility for fieldwork, mobile applications, or locations without direct access to mains power

PACKAGE CONTENT

• Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil for models with S100x objective
• All packed in a polystyrene box
