Electrolab

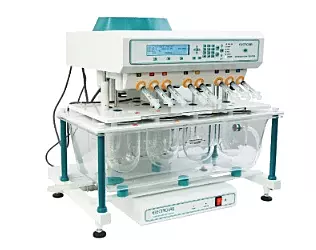

Inspire 8 Manual Syringe Sampling
| LCD display of 40 characters and 4 lines for user friendly operation |
| Multilevel security with password |
| Alphanumeric data entry of product and user details |
| Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products |
| Complies with USP, IP, Ph. Eur. and JP specifications |
| Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods |
| Easy Snap-Fit shaft locking mechanism for positive engagement and wobble free operation |
| Clear water bath with metal top-plate |
| Precise individual vessel centering system |
| Adjustable leveling of instrument |
| Vibration free smooth motorized lift movement |
| Isolated water circulating pump for precise temperature control of the water bath |
| 20 programmable protocols |
| 24 programmable sampling intervals |
| Easy to empty and clean water bath with bottom drainage |
| Designed to minimize routine validation |
| Report for online validation of test, monograph, error log during the test |
| Programmable wake-up for temperature control |
| Programmable sample volume from 1 mL to 20 mL |
| Audio-visual indicators for system status |
| Power failure detection facility |
| Individual temperature probe for monitoring temperature of each vessel |
Non-returnable
SKU - Inspire-08 Manual Syringe Sampling
Out of stock
Share:
Product Details
| Model | Inspire-08 Manual Syringe Sampling |
| Speed range | Variable speed from 20 to 300 RPM |
| Speed accuracy | ±1 RPM |
| Temperature range | 20◦C to 40◦C |
| Temperature accuracy | ±0.1◦ C |
| Display | 40 x 4 character backlighted LCD |
| No. of protocols | 20 maximum |
| Sample interval | Maximum 24 of 1 min to 23 hrs, 59 min |
| Printer interface | Serial port |
| Printer supported | 80 column Dot Matrix printer |
| Bath | Clear acrylic molded water bath |
| Heater | 1 kW/230 VAC, material 5.5. 304 with sensor |
| Vessel capacity | 150 ml, 250 ml, 500ml, 1 L |
| Electrical power | 220/ 230 VAC, 50/60 Hz, 1.3 kW/6 Amp 110 VAC, 50/60 Hz,1.3 kW/10 Amp |
| Dimensions ( W x L x H) | 517 x 712 x 665 |
| Weight | 68 KG |
