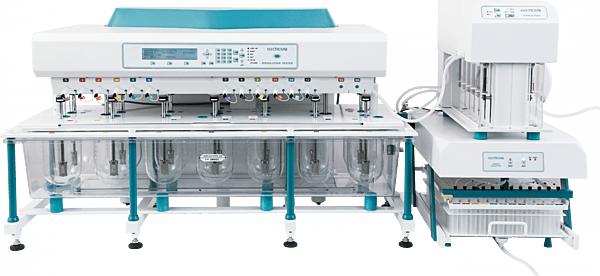

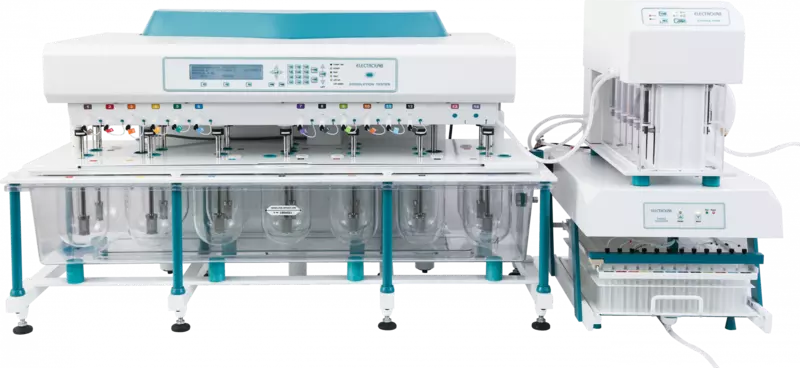

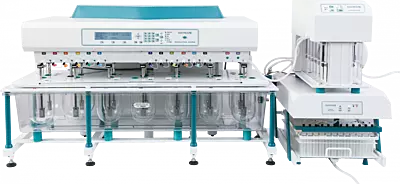

Inspire-14 with Sample Collector (Dc)
Non-returnable
0.00SAR
Out of stock
| LCD display of 40 characters and 4 lines for user-friendly operation. |
| Multilevel security with password. |
| Alphanumeric data entry of product and user details. |
| Unique TimeAction™ function allowing media changeover and infinity test run, ideal for sustained and controlled release products. |
| Complies with USP, IP, Ph. Eur., and JP specifications. |
| Automatic stirrer height positioning for USP 1, 2, 5, 6 intrinsic test methods. |
| Easy Snap-Fit™ shaft locking mechanism for positive engagement and wobble-free operation. |
| Clear water bath with a metal top plate. |
| Precise individual vessel centering system. |
| Adjustable leveling of the instrument. |
| Vibration-free smooth motorized lift movement. |
| Isolated water circulating pump for precise temperature control of the water bath. |
| 20 programmable protocols. |
| 16 programmable sampling intervals. |
| Easy to empty and clean water bath with bottom drainage. |
| Designed to minimize routine validation. |
| Report for online validation of test, monograph, and error log during the test. |
| Programmable wake-up for temperature control. |
| Programmable sample volume from 1 ml to 20 ml. |
| Audio-visual indicators for system status. |
| Power failure detection facility. |
| Split rinse to avoid carryover. |
| Replenishment. |
| Individual vessel temperature monitoring. |
Product Details
| Model | Inspire-14 with DC |
| Speed range | Variable speed from 20 to 300 RPM |
| Speed accuracy | ±1 RPM |
| Temperature range | 20° C to 40° C (Extended range 10°C to 40°C & 20°C to 55°C optional) |
| Temperature accuracy | ±0.1°C |
| Display | 40 x 4 character backlighted LCD |
| No. of protocols | Maximum 16 of 1 min to 23 hrs, 59 min |
| No. of samples | Serial port |
| Sample interval | 80 column Dot Matrix printer |
| Printer interface | RS 485/RS 232 |
| Printer supported | 150ml, 250ml, 500mL, 1L |
| Interface port | One piece moulded clear bath |
| Vessel capacity | Heater : 1kW, SS 316 with thermal protection |
| Water bath | Sensor : RTD |
| Temperature controller | 220/230 VAC, 50/60 Hz,1.3 kW/6 Amp |
| Electrical power | 110 VAC, 50/60 Hz,1.3 kW/10 Amp |
| Dimensions (W x L x H) | 521 x 1672 x 663 mm |
| Weight | 212 kg |
