temperature range from 10°C above ambient to 100°C
characterized by noiseless operation and fine air flow in the usable space
high operation comfort, precise temperature control and short chamber temperature equalization times after the door opening
high-quality and safe drying, heating and tempering of common laboratory materials in laboratory and industrial areas, suitable for safe processing of microbiological cultures
standard version with microprocessor control system Fuzzy logic, controls placed on a foil keyboard, process information displayed on LED display
wide selection of optional equipment and accessories
output for connecting a printer or PC
possibility of validation (IQ, OQ)

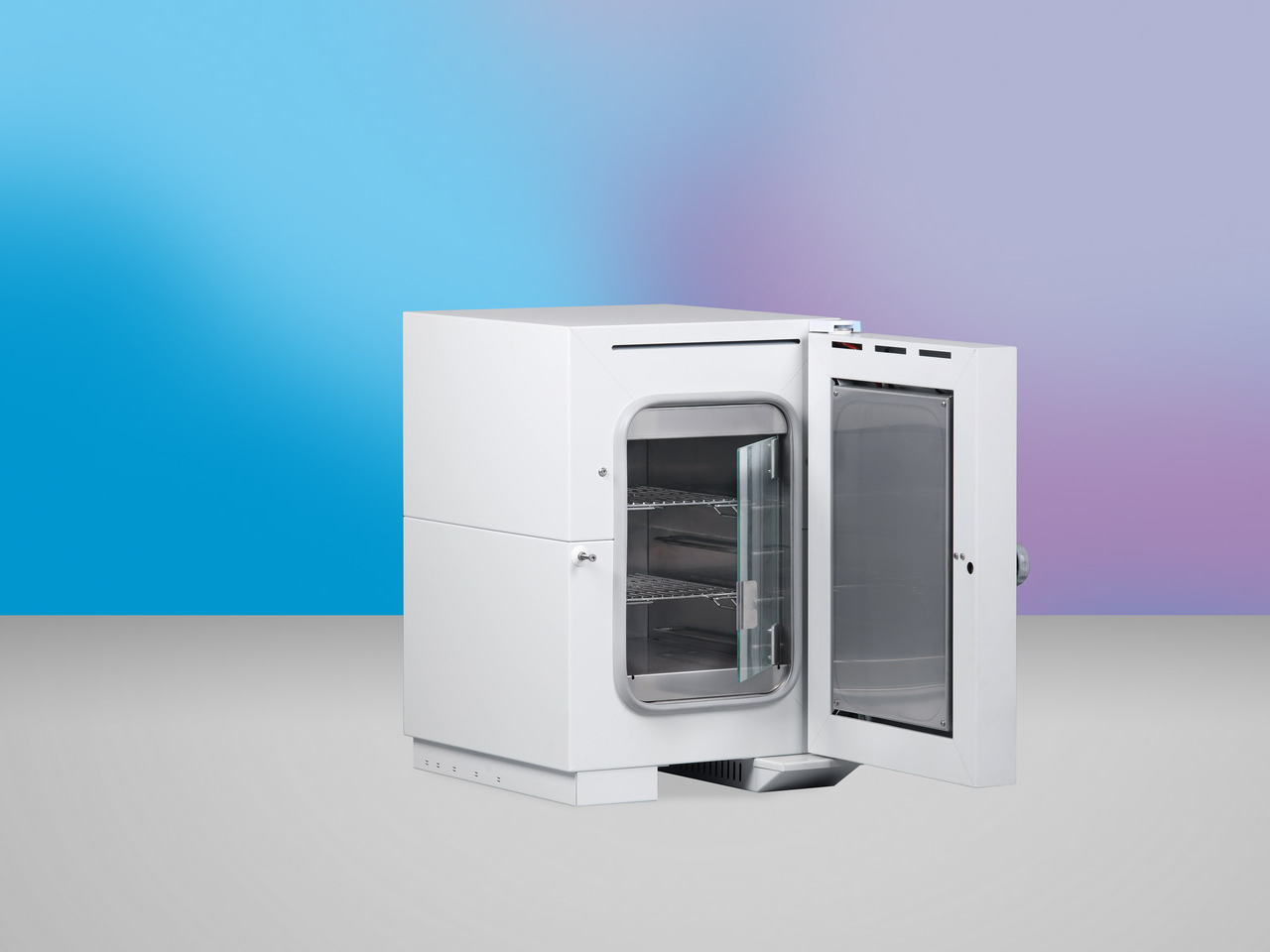

Interior of stainless steel material No. 1.4301
volume
22 l
width
240 mm
height
300 mm
Tray
standard equipment
2 pcs
storage area (w × d)
185 × 265 mm
racks
4 max. number
distance between guide rails
60 mm
Maximal weight of the load *)
inside the oven
25 kg/oven
per tray
10 kg/tray
Door
1 pcs
External dimensions (including door and handle)
depth
560 mm
diameter of the air branch outer/inner
52/49 mm
width
406 mm
610 (N)
Package dimensions (three layers carton)
depth
720 mm
width
500 mm
depth
810 mm
Weight
brut
36 kg
nett
31 kg
Working temperature (beginning of the regulation)
from 10 °C above ambient temp. to:
100 °C
Temperature accuracy according to DIN 12 880 T2 at working temperature with closed air flap and door
time variation cca (±)
0,1 °C
space deviation cca (±)
0,4 °C
Time required to reach 37 °C with closed air flap and voltage 230 V
80 min
Heat emission at 37 °C
70 W
Air exchange speed at 37 °C
45 per hour
Electricity - mains 50/60 Hz
max. power
0,96 kW
nominal voltage
230 V
current
4,2 A
power by stand by
5 W
*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber. Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.
Changes in the design and make reserved. The values may differ depending on specific charge and media parameters.
