High-Speed Amino Acid Analyzer

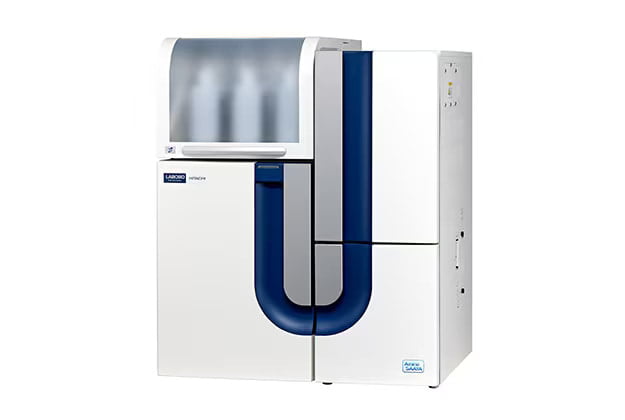

High-Speed Amino Acid Analyzer LA8080 AminoSAAYA
Ergonomic Design
Designed from the perspective of the user, the AminoSAAYA’s daily workflow, movements, and operational requirements are extremely simplified.
The height of the reagent setup unit accommodates better accessibility. Daily tasks such as reagent replacement, sample setup, and maintenance are made easy and can all be done from a standing position (the work requiring a half-sitting position has been minimized).
Space-saving compact design
This new design resulted in a unit with a footprint that is 30% less than the previous models. In addition, this unit is designed to be placed on a standard laboratory benchtop.
The use of Hitachi’s highly reliable and stable post-column Ninhydrin method ensures compatibility with methods run on previous models (L-8800/L-8900).
The reliability and stability cultivated over many years have been maintained in this new system. The analysis methods are inherited from previous models, and the basic analytical conditions, columns (packing materials), and reagents that have been in use can also be used without making any changes.
Select the analysis method (column, reagent, and analytical conditions) depending on your required analysis (Protein Hydrolysates (PH) or Physiological Fluids (PF)).
Commercially available buffer solutions and reaction reagents (dedicated reagents) can be used without preparation.
Unstable Ninhydrin reagents usually require refrigeration. However, with the Hitachi amino acid analyzer, the two solutions are mixed immediately before the derivatization reaction. Therefore, there is no need for refrigeration.
Data
Analysis Example: STANDARD ANALYSIS COLUMN (Protein Hydrolysate analysis method)
Amino Acid Analyzer
- Analysis timeApprox. 30 minutes (Net)
- ResolutionThr-Ser、Gly-Ala、Ile-leu, more than 1.2
- Reproductively of the peak retention timeRSD 0.5% or less (Ala peak) RSD 0.3% or less (Arg peak)
- Reproductively of the peak areaRSD 1.0% or less (Gly, His peak)
- Detection limit2.5 pmol (S/N = 2 at Asp peak)
- Analyzer ColumnSize: 4.6 mm ID × 60 mm* Resin: Hitachi custom ion exchange resin
- Analyzer Column ovenSystem: Peltier Temperature setting: 20 - 90 °C (in 1 °C steps)
- Reaction unitSystem: Electronic heating Temperature setting: 50 - 140 °C (in 1 °C steps)
- DetectorSpectrophotometer: Aberration-corrected concave diffraction grating Wavelength: 570 nm, 440 nm
- Dimensions (excluding PC)700 (W) × 600 (D) × 850 (H) mm
- Temperature range15 - 35 °C
- Power supply100, 115, 220, 230, 240 V ± 10 V, 800 VA, 50 or 60 Hz
- Nitrogen gasNitrogen gas source must be prepared.
