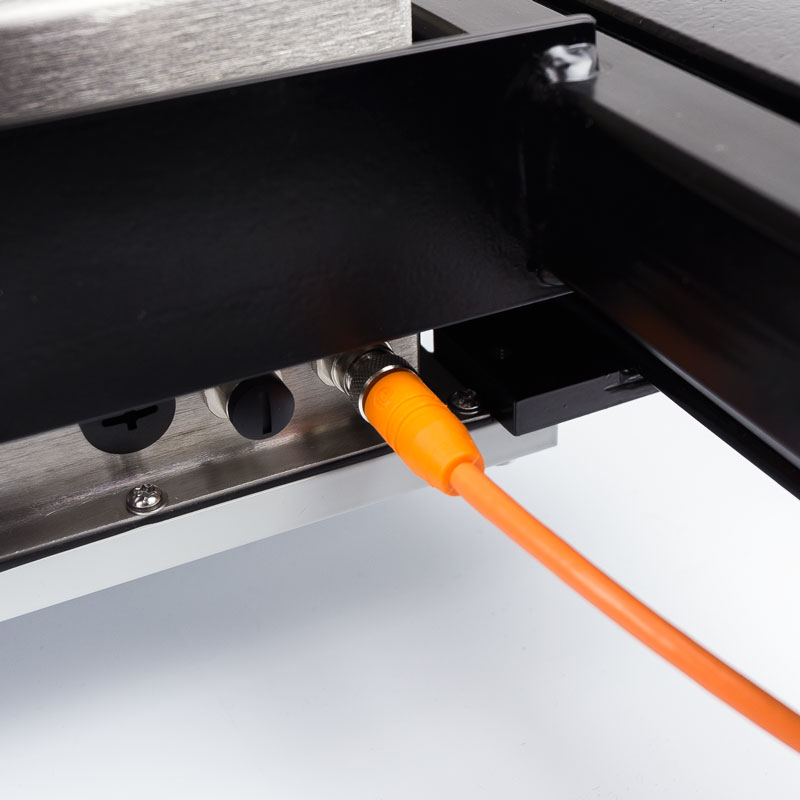

High Resolution Scales Max: 10kg d: 0,02g
0.00SAR

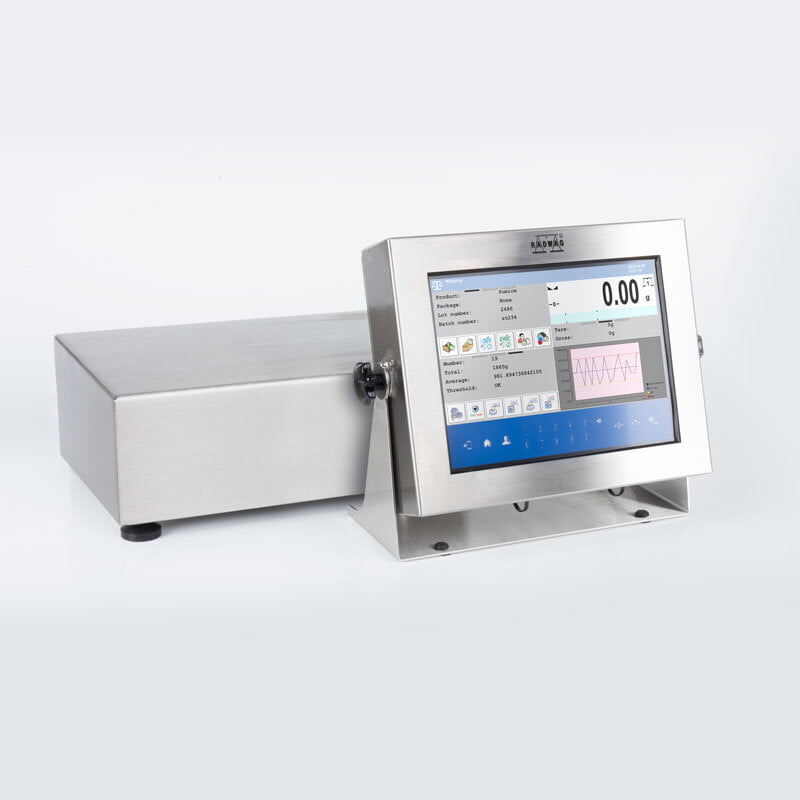

HY10.10.HRP High Resolution Scale
Maximum capacity [Max]: 10 kg
Readability [d]: 0.02 g
Product Details
Specifications
Fast and Stable Measurement
The scale displays the final result even in one second.
High Maximum Capacity and Accuracy in a Single Device
On the large weighing pan of an HRP scale, you can weigh a load of 150 kg with a readability of 1 g and impressive repeatability.
Minimum Eccentricity Error Over the Entire Range
On the HRP scales, you can also weigh irregularly shaped items with a centre of gravity significantly displaced from the weighing pan axis.
Parameter Stability Over Time and After Transport
Retain the correct metrological parameters even after prolonged, intensive use and transport of the scale due to its resistant and robust mechanical design.
Weighing Pan Dimensions Adapted to the Accuracy of the Balance
Weigh with the highest readability of 0.02 g on the 360 x 280 mm weighing pan and with a readability of 20 g on the 1,250 x 1,000 mm weighing pan.
Maximum Robustness
IP 67 platforms with additional sealing elements to protect against dust, dirt and moisture and can be cleaned with a pressure washer.
New HRP Platform HY10 terminal is a constructional component of industrial multifunctional load cell scales, it connects with RADWAG high resolution platforms and weighing modules. Readability of 0.01 g at 10 kg maximum capacity and 0,2 g at 120 kg maximum capacity ⋅ Repeatability down to 0.01 ⋅ Higher resistance to changes in ambient conditions. ⋅ The platforms are so robust that they can be cleaned with a pressure washer, ⋅ Transport protection that stiffens the structure during transport, eliminating any unwanted stresses, ⋅ Platforms with a maximum capacity starting at 300 kg include transport handles, which makes them easy to move. ⋅ Platforms of IP 67 |
PUE HY10 Terminal HY10 terminal is a constructional component of industrial multifunctional load cell scales, it connects with RADWAG high resolution platforms and weighing modules. |
High Level of Protection HRP scales have additional sealing elements to protect them from dust, dirt and moisture. This allows them to be cleaned with a pressure washer. |
Industrial Scales
- Maximum capacity [Max]10 kg
- Minimum load5g
- Preload range4 kg
- Readability [d]0.02 g
- Tare range-10 kg
- Linearity±0.06 g
- Stabilization time2 s
- Adjustmentinternal (automatic)
- Display10.1” graphic colour touchscreen
- Weighing pan dimensions360×280 mm
- Net weight24.7 kg
- Gross weight28.7 kg
- Protection classIP 66/67 construction, IP 68/69 indicator
- Constructionaluminum
- Weighing pan materialStainless steel AISI304
- Communication interface2×RS232, 2×USB-A, Ethernet, 4 IN / 4 OUT (digital)
- USBx2
- Ethernetx1
- RS232x2
- Inputs/Outputs4IN / 4OUT
- Relative humidity40% — 80%
- Wi-Fi ® module (option)802.11 b/g/n
- RS485 module (option)1
- Profibus module (option)DP SLAVE
- PROFINET module (option)1 × RJ45
- Analog output module (option)4-20mA, 0-20mA, 0-10V
- Inputs/Outputs (option)12IN / 12OUT (IN – 5-24 VDC, OUT – max 30 VDC, 0.5 ADC)
- Power supply100 – 240 V AC 50/60 Hz
- Operating temperature+10 — +40 °C
