Applications

• Clinical, Microbiology and Pathology labs - media tempering, thawing & incubating samples
• University research - temperature control of spectrophotometers & refractometers and jacketed vessels
• Industrial labs - temperature probe calibration, water analysis, QC testing product, petrochemical testing, material testing, milk sample testing

About

Combine any of the four models with a Grant stainless steel bath or with a T-Clamp to attach to virtually any vertical sided tank. A cost-effective range of multi-purpose systems combining Grants legendary quality and reliability.

T100 & TC120 General purpose models

• Cooling/heating range 0°C to 100°C (T100) and -15°C to 120°C (TC120)
• Cooling achievable with optional immersion cooler (see accessory options)
• Simple, intuitive user interface: dial and two function buttons
• Clear, bright 4 digit LED display
• Visual alarm and low-liquid detection
• 2 point user calibration
• 3 temperature pre-sets

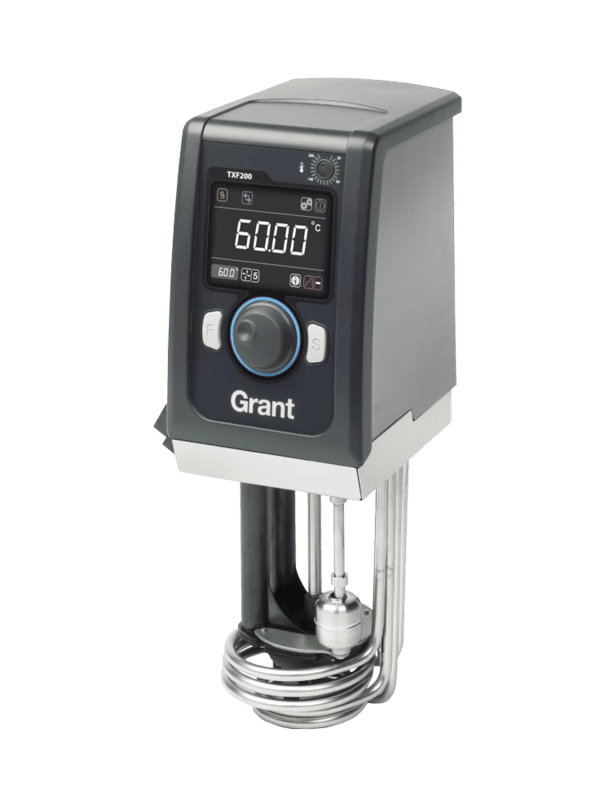

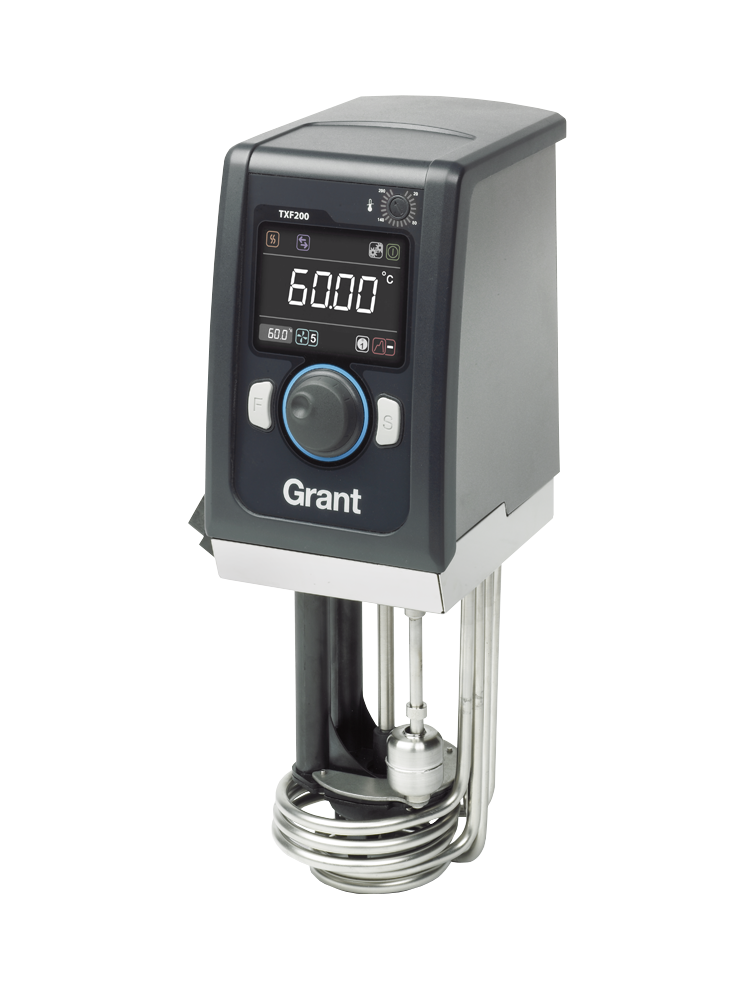

​TX150 & TXF200 Advanced models

• Cooling/heating range -15°C to 150°C (TX150) and -15°C to 200°C (TXF200)
• Cooling achievable with optional immersion cooler (see accessory options)
• Temperature programming directly through TXF200 interface
• Optional software package available for both TX150 and TXF200
• Icon driven home screen via dial and two function buttons
• Large, bright full colour display
• USB/RS232 interface for programming or data logging
• External probe socket
• 5 point user calibration
• Multi language options (EN,FR,DE,IT,ES)

‍

Products in the range

• T100 - 333mm x 172mm x 120mm
• TC120 - 333mm x 172mm x 141mm
• TX150 - 342mm x 172mm x 141mm
• TXF200 - 342mm x 172mm x 141mm



Specifications

• 	T100	TC120	TX150	TXF200
  Dimensions (h x d x w)	333mm x 172mm x 120mm	333mm x 172mm x 141mm	342mm x 172mm x 141mm	342mm x 172mm x 141mm
  Stability (DIN 12876) @70ºC	0.05±ºC	0.05±ºC	0.01±ºC	0.01±ºC
  Uniformity (DIN 12876) @70ºC	0.1±ºC	0.1±ºC	0.05 ±ºC	0.05±ºC
  Setting resolution	0.1ºC	0.1ºC	0.1ºC (0.01 with Labwise®)	0.1ºC (0.01 with Labwise®)
  Display	4 digit LED	4 digit LED	Full colour QVGA TFT	Full colour QVGA TFT
  Timer function	-	1 minutes to 99 hours 59 minutes	1 minutes to 99 hours 59 minutes	1 minutes to 99 hours 59 minutes
  No. of temperature presets	3	3	3	3
  Re-calibration points	2	2	5	5
  Socket for external probe (TXPEP, TXSEP)	-	-	•	•
  Communications interface	-	-	USB, RS232	USB, RS232
  Programmable	-	-	Remote via PC/laptop 1 program/30	Direct via user interface or remote via PC/ laptop 10 programs/ 100 segments
  Relays	-	-	1	1
  Safety - over temperature	Fixed	Adjustable cut-out	Adjustable cut-out	Adjustable cut-out
  Fluid level - float	•	•	•	•
  Language options	-	-	EN, FR, DE, IT, ES	EN, FR, DE, IT, ES
  Alarms (can be configured to switch a relay)	-	High (no relay)	High and low	High and low
  Heater power - 230V	1290W	1290W	1840W	1840W
  Heater power - 120V	1440W	1440W	1445W	1445W
  Electrical power - 230V	1400 (50-60Hz)	1400 (50-60Hz)	2000 (50-60Hz)	2000 (50-60Hz)
  Electrical power - 120V	1500 (50-60Hz)	1500 (50-60Hz)	1500 (50-60Hz)	1500 (50-60Hz)
  Height above tank rim	200mm	20mm	200mm	200mm
  Depth below tank rim	135mm	135mm	145mm	145mm
  Maximum pressure (water)	-	210mbar	310mbar	530mbar
  Maximum flow (water)	-	16L/min	18L/min	22L/min (adjustable flow rate)
  Pump connector	-	Fits 9mm inner diameter tubing	Fits 9mm inner diameter tubing	Fits 9mm inner diameter tubing
  Pump connector	-	Fits 15mm inner diameter tubing	Fits 15mm inner diameter tubing	Fits 15mm inner diameter tubing
  Weight	2.1kg	2.3kg	2.6kg	2.6kg
