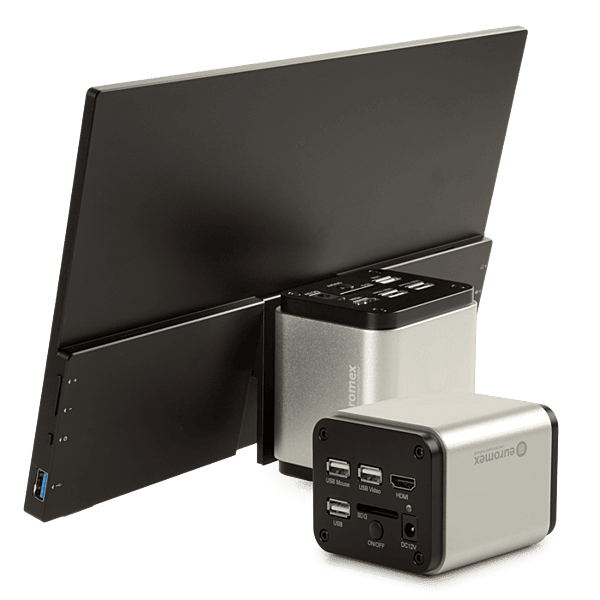

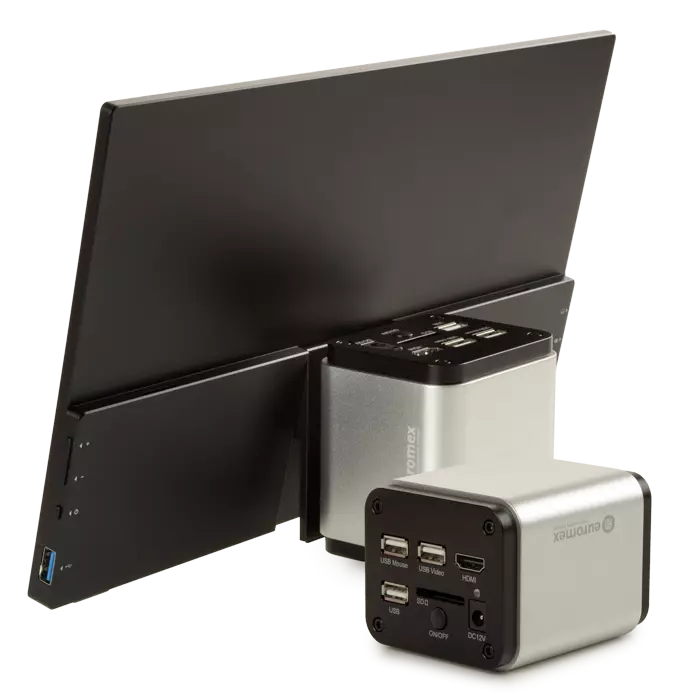

HD-Pro HDMI camera
HD-Pro HDMI camera
The real time images generated with this camera provide excellent color rendering at high frame rates, up to 60 frames per second on any direct connected HDMI screen or monitor. The HD-Pro high definition camera can be used in three modes: in a stand-alone with its embedded mouse-driven software, in a computer controlled mode or a combination of both
Connect the HD-Pro directly to a large TV or monitor, perform calibrated measurements, save images and videos all without need of a computer. The menu and controls are displayed on the TV and are controlled by a mouse, connected directly to the camera. More advanced analyses can be done by connecting the HD-Pro to a computer, where ImageFocus Alpha software allows for annotations, measurements, stacking, stitching and many more functions
- HD 1080p high definition video camera
- Available with 13” HD screen (VC.3039-HDS)
- Real time images directly on screen
- Stand alone or used via PC or simultaneous use
- Built-in mouse-driven software
- C-mount interface
- HDMI, USB-C and SD memory card
- Compatible with ImageFocus Alpha software
- HDMI 8.0 MP CMOS high sensitive sensor
HD-Pro HDMI camera
To compare this camera with other HD-models, see 'downloads' - 'Camera comparison'
* capture mode
** live view
TECHNICAL SPECIFICATIONS
Sensor
SONY CMOS EXMOR 8 MP
Format
1/2.8”, HDTV 1080p (50/60Hz)
Pixels
3840 x 2160 pixels (capture mode)
1920 x 1080 pixels (live view),
HDMI 60 fps, USB 26 fps
(Frame rates have been determined at optimal conditions)
Pixelsize
1.45 x 1.45 µm
Video
1080p recording mode, 30 fps, MP4, H264/H265
HD screen (VC.3039-HDS)
13”
VideoOutput
Digital HDMI, USB
Scanmode
Progressive scan, rolling shutter
Exposure
Automatic/manual 0.04 ~1000 ms
Whitebalance
Automatic/manual/ ROI
Sensitivity
300 mV with 1/30s
Noise
3D algorithm
Colorrendering
24
Signal/Noise (db)
38
Dynamic(db)
66
Interfaces
Digital HDMI, USB-C
Storage
High speed 32 GB SD card included (128 GB max)
Camerabuttons
On/ Off
Mounting
C-mount interface
Powersupply
DC 12V/1A Adapter
Operation
-10~ 50 C, 30~80% relative humidity
Storagetemperature
-20~ 60 C, 10~60% relative humidity
Software
Works with ImageFocus Alpha imaging and measuring software for Windows 10 and higher (32 and 64 bit configurations)Mac OS and Linux
PCrequirements
Equal to Intel Core 2, 2.8 GHZ or higher, memory: 2 GB, USB-C
EMBEDDED SOFTWARE
(displayed on TV, no need for computer)
• Capture images and videos to SD
• Playback images and videos from SD
• Measurements (like Angle, Line, Horizontal Line, Vertical Line, Rectangle, Circle, Ellipse, Annulus, Two Circles, Polygon, Curve, etc)
• Compare images
• Grids
• Digital zoom in/out
• Flip
• Pause
• Camera settings (white balance, color control etc.)
Suppliedwith
0.37x objective with C-mount, 30 mm and 30.5 mm adapters for stereo microscopes, 12 V/1 A power adapter, a 32 GB SD card, USB-C Synchronous cable 1.5 M, HDMI cable, USB mouse, 76 x 24 mm calibration slide (1mm/100), carton box
Model
VC.3039 / VC.3039-HDS
