HD-Mini color cameras

The real time images generated with these cameras provide excellent color rendering with high frame rates

STAND-ALONE
No need to open or start a computer or any computer knowledge to use these camera. Most camera settings are done automatically and therefore these cameras are very user friendly. This results in faster, more flexible and compact working conditions

Simply connect the camera to a high definition HD screen, TV-HD or HD-beamer with an HDMI input and the system is ready to go. The mouse-driven built-in software of the cameras enables capturing 1920 x 1080 pixels jpg images on the integrated SD memory card

The embedded software of the cameras features functions like

• image and video capture
• white balance
• auto/manual exposure
• zoom in/out
• horizontal/vertical flip
• video freeze/cancel video freeze
• grid
• display/hide camera control panel
• color adjustment (sharpness / de-noise / saturation / gamma / contrast)
• Wide array of measurment functions

These key properties make the cameras ideal for real time inspections, educational purposes and live demonstrations

TECHNICAL SPECIFICATIONS
Sensor
HDMI 2.0 Mega pixels CMOS high sensitive sensor (Sony)

Format
1/2.8 inch, HDTV 1080p

Pixels
1920 x 1080 pixels (capture mode)
1920 x 1080 pixels (live mode)
HDMI 60 fps
(Frame rates have been determined at optimal conditions)

Scanmode
Progressive scan

Pixelsize
2.9 x 2.9 μm

Noise
3D Noise reduction function

Sensitivity
1300mv/lux-sec

Colorrendering
12 Bits

Signal/Noise (db)
42

Dynamic(db)
69

Whitebalance
Automatic/manual/ROI

Interface
HDMI

Storage
VC.3023: Images are saved to a standard high speed 32 Gb SD memory card (Recommend using SD card of class 4 or higher and max.128 Gb)
VC.3024-HDS: Images are saved to a standard high speed 32 GB USB flash drive (Max. 128 GB)

Mounting
C-mount interface

Powersupply
DC 12V/ 1A adapter

Operation
-10~ 50 Celsius, 30~80%RH

Storage
-20~ 60 Celsius, 10~60%RH

Suppliedwith
HDMI cable, DC 12V/ 1A power supply, 32 GB SD Card, USB mouse, 0.37x c-mount adapter, 23.2~30.0/ 30.5mm adapter rings

Powersupply
DC 12V/ 1A adapter

Features included in the on-screen software
Image and video Capture, White balance, Auto/ Manual exposure, Zoom In/ Out, Horizontal/ Vertical Flip, Video Freeze/ Cancel Video Freeze, Grid, Display/ Hide Camera Control Panel, Color Adjustment (Sharpness/ Denoise/ Saturation/ Gamma/ Contrast), measurment functions

Compatibility
Suitable for all HDMI screens, monitors and beamers

PACKAGING

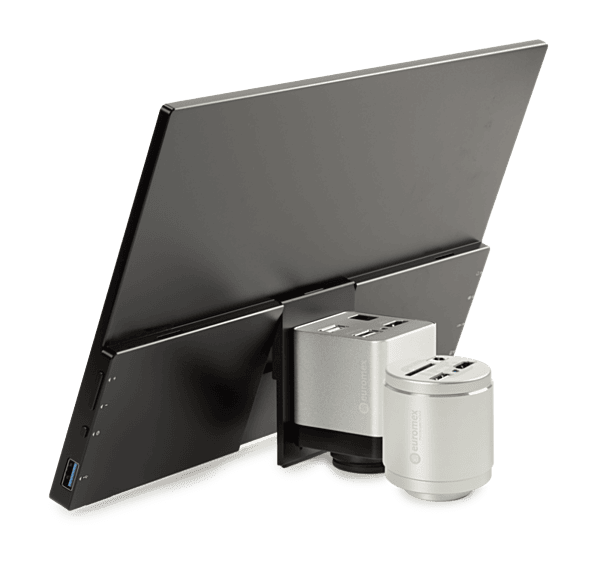

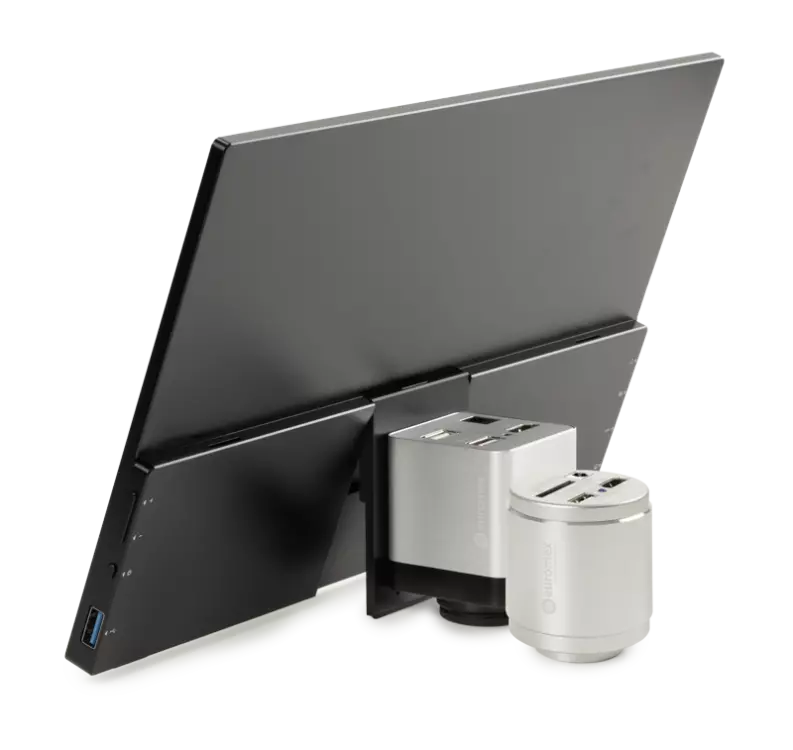

The HD-Mini VC.3023 1080p camera is supplied with a mouse, a 0.37x C-mount adapter for 23.2 mm tubes, 30.0 and 30.5 mm conversion adapters (for use with stereo microscopes), external 12V /1A power supply, 10/100 calibration slide, a 32 GB SD-card, HDMI cable and product manual. The HD-Mini VC.3024-HDS is, apart from the above, also equipped with an 13" HD screen
