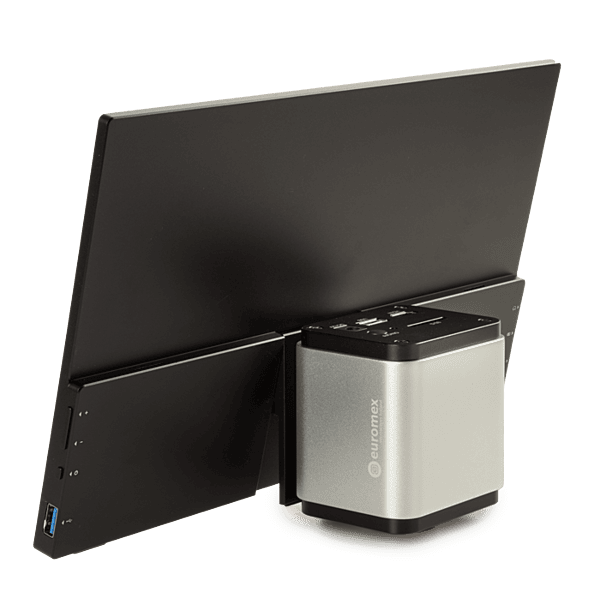

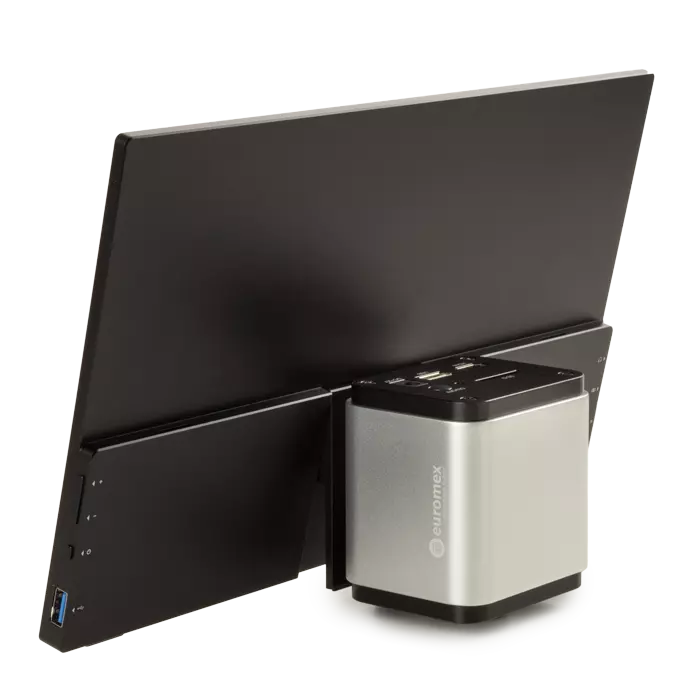

HD-Autofocus camera
The Euromex HD-Autofocus camera offers the perfect solution to modern microscopy for education, industry and laboratories where real time images are needed. The autofocus function eliminates the need of re-focusing when changing subjects or while scanning objects that are different in height. Ideal for all sorts of quality control set-ups! This HD image quality camera can be used for stereo, biological and metallurgical microscopes
Automatic focusing high definition CMOS color camera
with HDMI interface, WiFi and on-screen measurement function
The real time images generated with this stand-alone camera provide excellent color rendering at high frame rates, up to 60 frames per second
The HD-Autofocus high definition camera is a stand-alone system, no need for computer (knowledge). With embedded mouse-driven software and measurement function. Images and videos are saved to included SD-Card. A WiFi dongle is provided to connect the camera to the computer (ImageFocus Alpha software), should you wish to do so
Camera is easily mounted into the eyepiece tube or on the trinocular port, using the included c-mount objective
- HD 1080p high definition video camera
- Available with 13” HD screen (VC.3034-HDS)
- Autofocus system
- Real time images directly on TV, monitor or beamer (HDMI)
- Stand alone system
- Built-in mouse-driven software
- HDMI and WiFi
MODEL
To compare this camera with other HD-models, see 'downloads' - 'Camera comparison'
* live view and capture mode
TECHNICAL SPECIFICATIONS
Sensor
SONY IMX185 2.0 Mega Pixels CMOS high sensitive sensor
Format1/1.9”, HDTV 1080p (50/60Hz)
Pixels
1920x1080 pixels (capture mode)
1920x1080 pixels (live view)
HDMI 60 fps, WiFi mode 25 fps
(Frame rates have been determined at optimal conditions)
Pixel size
3.75 x 3.75 um
Video
1080p pixels video recording mode
HD screen (VC.3034-HDS)
13", 1080p
Scan mode
Progressive scan, rolling shutter
Noise
De-noise function supported
Senitivity
1120 mv with 1/30s
Exposure
Automatic/ manual
White balance
Automatic/ manual
Dynamic range
65 dB
S/N Max
50 dB
Interfaces
Digital HDMI, WiFi
Storage
High speed 32 GB SD Memory card
(larger capacity SD cards are optional)
Camera buttons
On/ Off
Mounting
C-mount interface
Power supply
DC 12V/1A Adapter
Operation
-10~ 50 ° Celsius, 30~80 % humidity
Storage temperature
-20~ 60 70° Celsius, 10~60%RH
Measurement
Supported
Suppliedwith
0.5x objective with C-mount, a 32 GB SD-card, 30 and 30.5mm adapters for stereomicroscopes, 12V/1A power adapter, HDMI cable, USB mouse, WiFi dongle, 76x24mm calibration slide (1mm/100) in carton box
Product number
VC.3034 / VC.3034-HDS
