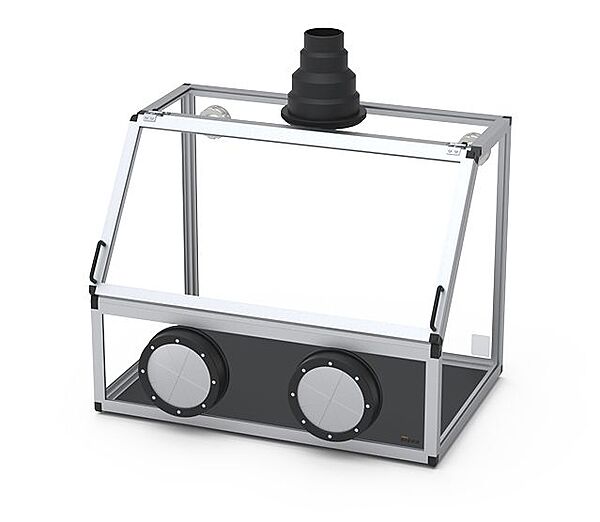

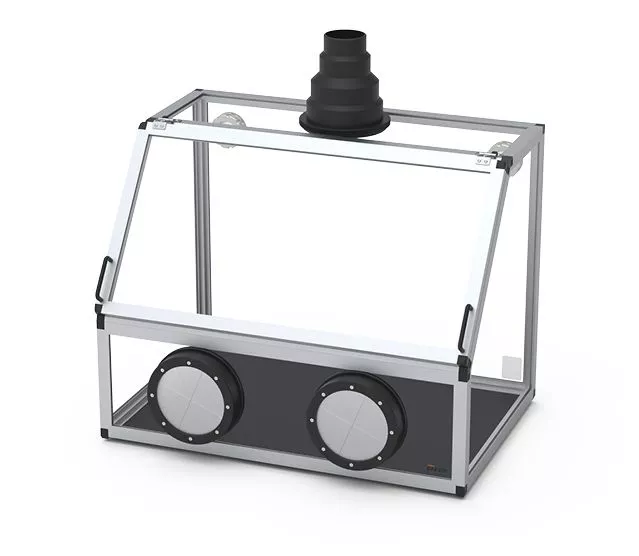

Glove box for Exhaustion | SICCO
Product description
Aluminium frame with panels made of acrylic glass. Base panel, integrated connector for exhaust system and closing lid made of polyethylene. Iris-Ports and cable lead-ins made of polyethylene and silicone. Two lead-ins for cable on the back side (upper left and upper right). Two crosswise slotted silicone discs each in the openings and cable lead-ins. They are staggered mounted so that the overlapping segments at the same time allow easy access to the interior space and close the openings at non-use. The Iris-Ports ensure pressure compensation through air streaming when the exhaust system is switched on. Connection to exhaust system through an integrated connector on the top panel. This connector is graded for tubes with inner diameters 100, 120, 160 and 180 mm. When working without exhaust system the opening can be closed with a lid.
Product advantages
» Robust and light-weight aluminium construction
» Superb all-round visibility
» Non-slip rubber feet
» Cable lead-ins for electric devices
» Large front opening
» Superb all-round visibility
» Non-slip rubber feet
» Cable lead-ins for electric devices
» Large front opening
Non-returnable
SKU - V1988-08
Out of stock
Share:
Product Details
| Material: | PMMA |
|---|---|
| Panels: | clear |
| Stand: | rubber feet |
| Temperature resistance: | from -20°C to +70°C |
| Use: | normal pressure |
apacity
[Liters]290Connector for exhaust system
[Ø in mm, graded]100, 120, 160, 180Distance between openings
[mm]390Hinged lid opening
[W x H mm]850 x 425Maximum all-over load
[kg]40Opening for gloves
[mm]Ø 170Overall dimensions
[W x H x D mm]890 x 700 x 600Usable interior space
[W x H x D mm]850 x 650 x 540Weight
[kg approx.]16
[Liters]290
[Ø in mm, graded]100, 120, 160, 180
[mm]390
[W x H mm]850 x 425
[kg]40
[mm]Ø 170
[W x H x D mm]890 x 700 x 600
[W x H x D mm]850 x 650 x 540
[kg approx.]16
