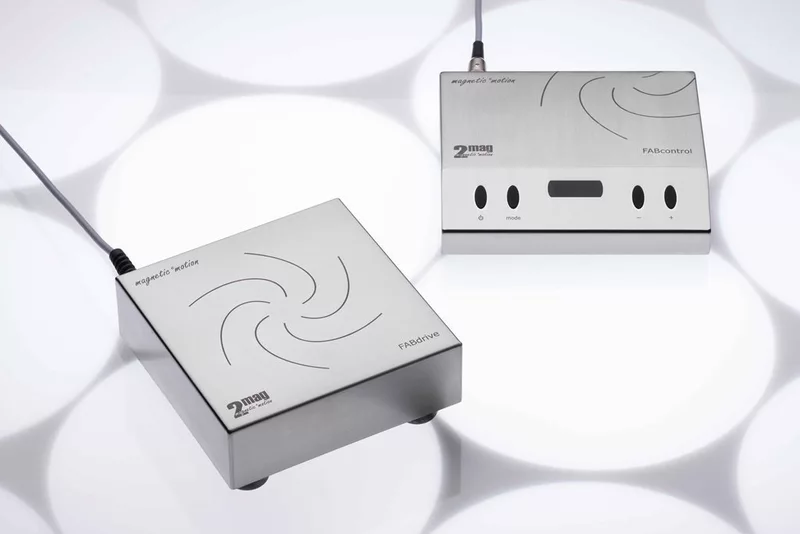

(FABdrive) Industrial stirrers
Unbeatably powerful 2mag magnetic stirrer with very compact housing dimensions, up to 1,000 liters stirring volume, also suitable for highly viscous media.
Very strong magnetic coupling, therefore predestined for magnetic power transmission over wide distances (up to <150 mm), for thick vessel bottoms or for double-coat vessels, ideal for the integration into process engineering systems and industrial processing.
Maintenance-free 2mag-motor-drive with large speed range from 80 up to 990 rpm. Fully encapsulated and tight stainless steel housing, IP64, extremely robust construction and performance, easy to clean under running water and maximum firm. Individual measurements on request.
Up to 1000 litres stirring volume For industrial processes Stirring speed from 80 up to 990 rpm Stirring over wide distances Compact dimensions Footprint 18 x 18 cm Ideal for highly viscous media Outstanding long-life quality Developed and made in Germany
Product Details
| Type | FABdrive |
| Stirring points | 1 |
| Stirring volume/stirring point | 1 – 1,000 liters |
| Stirring power (max.) | 100 W |
| Housing material | Stainless steel |
| Permitted operation conditions | -10 up to+50 °C (at 95% humidity) |
| Operating voltage (max.) | 24 VDC |
| Dimensions (WxDxH) | 180 x 180 x 75 mm |
| Protection class | IP64 |
| Shipping weight (gross) | approx. 4.8 kg |
| Order no. | 50101 |
