Electrolab

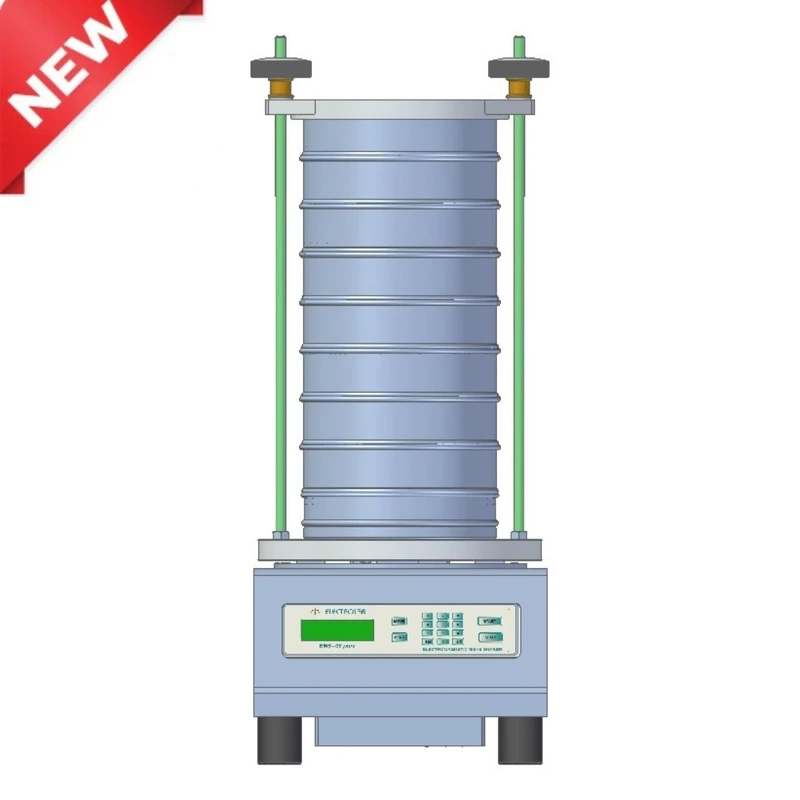

Electromagnetic Sieve Shaker EMS-08 Monitor
| The Instrument produces tri-dimensional movement combining a vertical movement with a solution of the material to be sifted on the surface of the sieve |
| Continuous |
| Intermittent the helps to clear blocked apertures) |
| Instrument is powered by an electromagnetic drive which has no rotating parts, making it mainte- nance free and quiet in operation |
| Non-metallic springs and anti-vibration mountings are fitted to isolate vibrations from work surfaces and reduce noise levels |
| The instrument is powered by an electromagnetic drive which has no rotating parts, making it mainte- nance free and extremely quiet in operation |
| Programmable shake time from 1 min to 99 mins |
| The vibratory action produced by the power unit moves the sample all over the sieve in a unique way producing faster and more efficient sieving |
| 16 x 2 character alphanumeric display |
| Intermittent and continuous shifting motion with 15 programmable levels of amplitude |
| The top plate of the sieve shaker has clearly marked calibrated lines to aid visual inspection of the ampli- |
| tude The instrument is fitted with a special clamping device that ensures that the sieves are held firmly and |
| allows them to be quickly removed and replaced |
| Suitable for dry and wet sieving |
| The display shows the amplitude level. |
Non-returnable
Out of stock
Share:
Product Details
| Model | EMS-08 Monitor | |
| Product code | 230 Volts M.S. :520100 S.S. :540100 | 110 Volts M.S.: 510100 S.S.: 530100 |
| Dry sieving | Standard | |
| Mode of operation | Continuous and intermittent | |
| Intermittent operation | At intervals (0.5 sec) | |
| Capacity | Up to 16 sieves of 100 mm dia x 25 mm h | |
| Shake time | Programmable from 1 min to 99 min | |
| Product Category | Particle Size Analyzer | |
| Amplitude level | Monitor the amplitude through the display. | |
| Power level | Programmable (from 5 to 20) | |
| Noise level | <61 dB without sieves at maximum amplitude <71 dB with sieves and material at maximum amplitude | |
| Power | 220/230V AC, 50 Hz, 600 VA | |
| Dimensions (WxHxD) | 312 mm x 339mm x 270 mm | |
| Weight | 50 Kgs (without sieves) |
