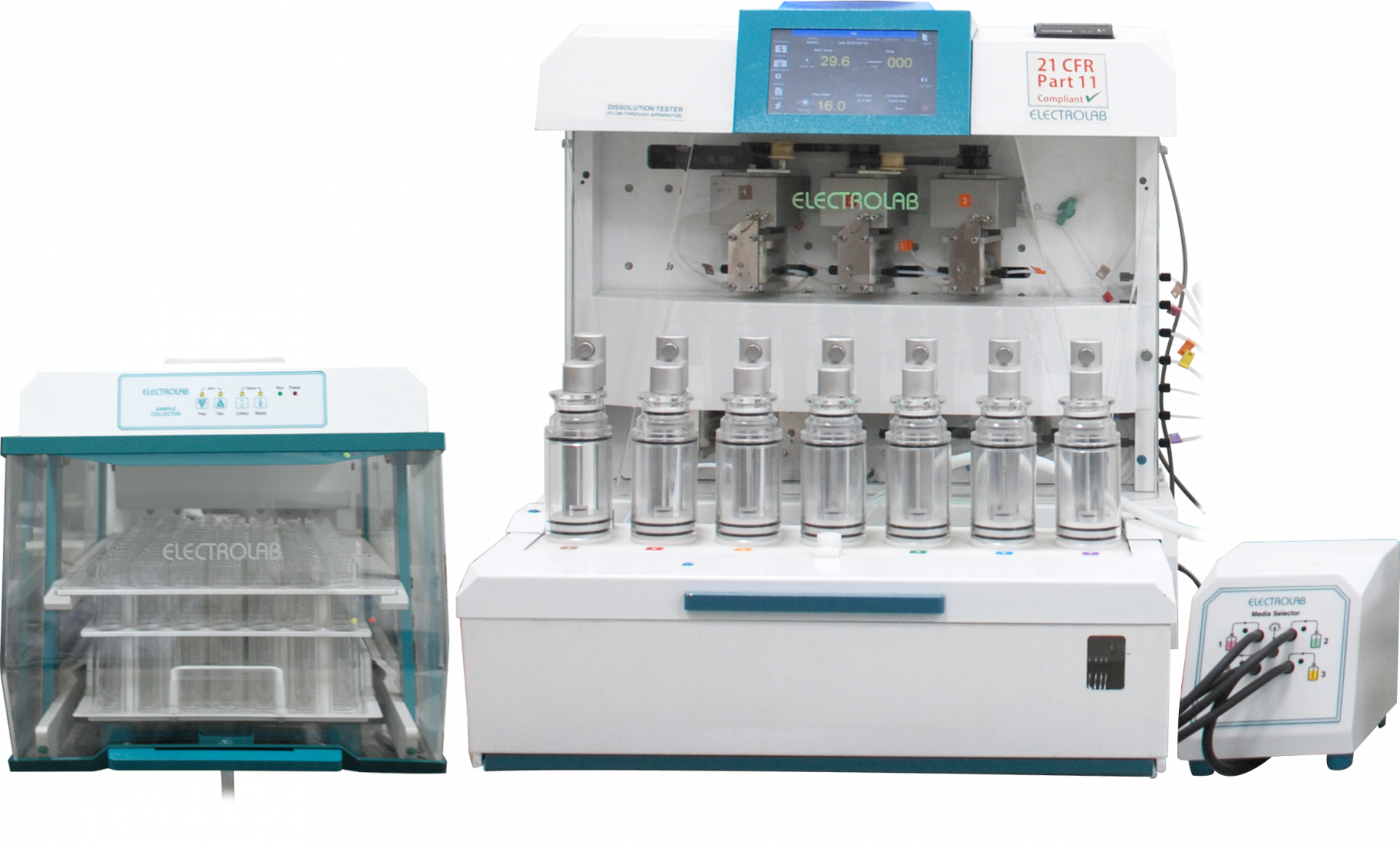

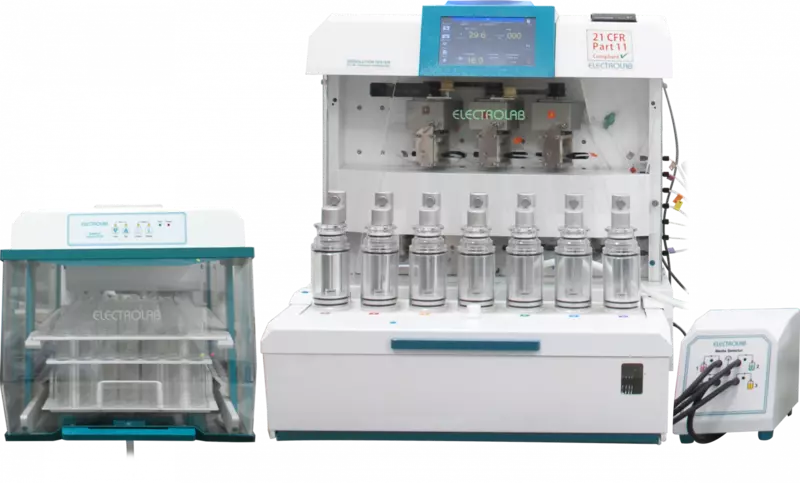

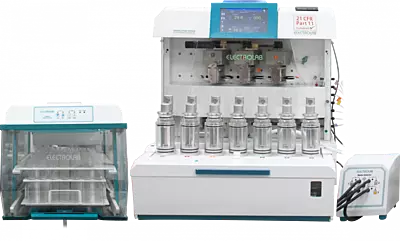

EFD-07 Open loop auto sampling with Media Selector
Non-returnable
0.00SAR
Out of stock
| Complies with USP and Ph. Eur. Specifications |
| Valveless ceramic pump heads |
| Seven flow through cell stations |
| User friendly intuitive touch screen interface |
| 1000 programmable protocols |
| Automatic flow rate adjustment for individual channels |
| Program support for gravimetric flow validation and calibration of individual channel |
| Individual cell temperature monitor |
| Isolated water circulating pump for precise temperature control of the water bath |
| Embedded printer for printing reports |
| Ideal for dissolution testing of tablets, capsules, implants, suspensions, drug-eluting stents, ointments, creams, microspheres and other sustained release dosage forms implants, suspensions, drug-eluting stents, ointments, creams, microspheres and other sustained release dosage forms |
| Visual indication of status : Idle Run Error |
| Automatic tray identification and detection |
| Smooth and noise free movement of arm |
| Completely covered to prevent contamination and air drafts which cause excess evaporation of the collected samples |
| Ergonomically designed to save bench space |
| Self test mode for checking all features. |
| Split in two trays for easy handling of samples |
| Split ratio is managed by EFD-07 depending on the set volume to be collected |
| Up to 21 sample time-points can be collected for extended release tests |
| 4 position media selector for 4 different media |
| Automatically controlled by EFD-07 |
| Indicator for respective position |
| Ideal for modified release drugs |
Product Details
| Model | EFD-07 |
| Touch screen display | 7" |
| Bath temperature | 20.0° C to 45.0° C (Extended temperature range from 10°C to 65°C) |
| Bath temperature accuracy | ±0.1° C |
| Piston pump stroke rate | 120 strokes/min |
| Piston pump stroke rate accuracy | ± 1 stroke |
| Programmable flow rate for individual channel | 2 ml/min to 32 ml/min |
| Accuracy of flow rate | ±5% |
| Sample volume | 1ml to 70 ml |
