ecocool Refrigerated Circulating Baths /-20 to 100
0.00SAR

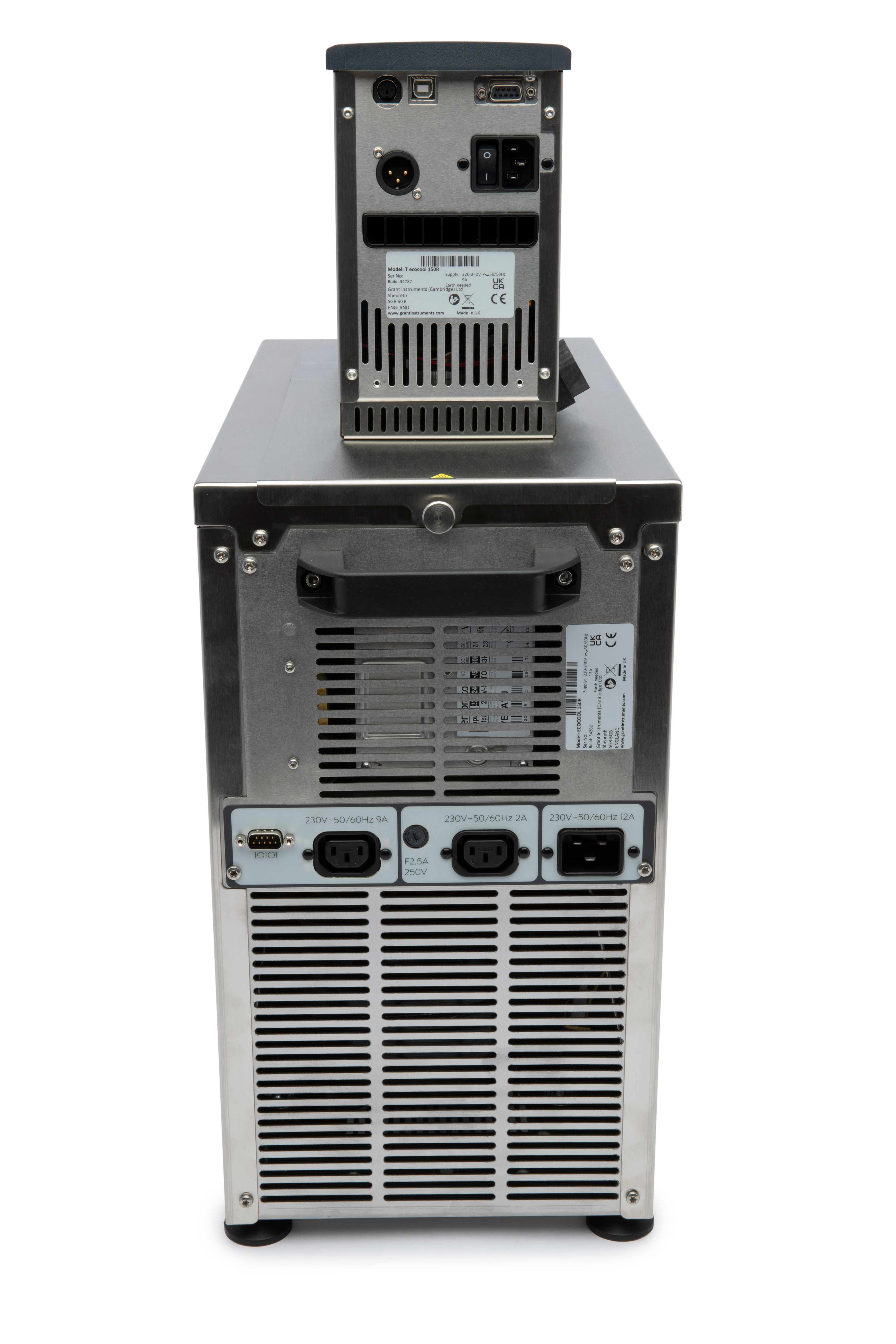

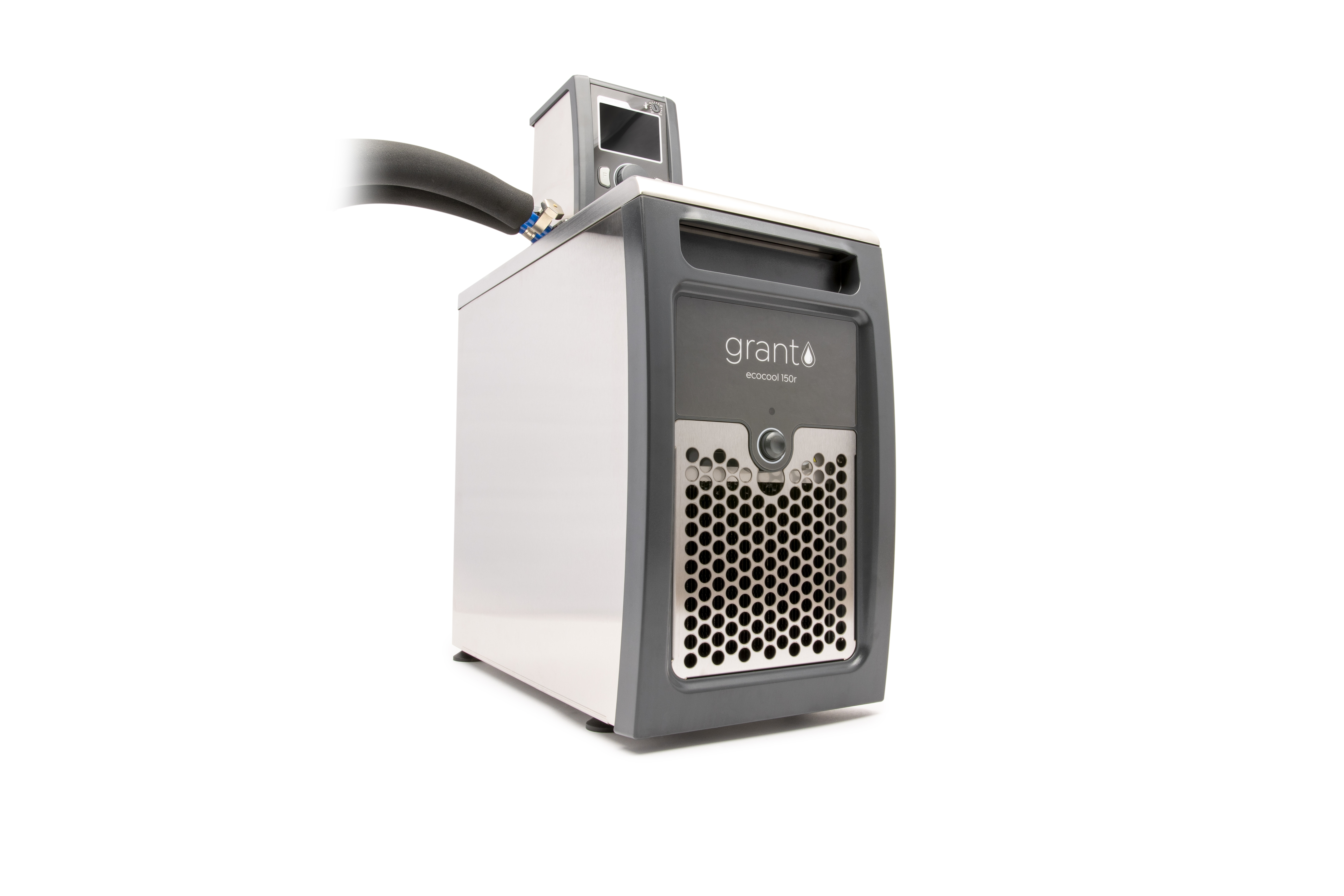

ecocool Refrigerated Circulating Baths
Product Details
Specifications
A new range of innovative, eco-friendly, refrigerated and heating circulating baths offering significant running cost savings whilst delivering powerful cooling.
Applications
- Pharmaceutical - mini pilot plant reactors
- Education - rotary evaporator cooling, replacement of running tap water cooling, immersing small samples, photometry, chromatography systems
- Industrial - QC testing, sample preparation, general cooling, reaction chemistry, temperature control, semi-conductor manufacturing, rheometry
- Food - refractometry
- Life-science - electrophoresis cooling
- High temperature cooling - active up to 150ºC
- Pharmaceutical - mini pilot plant reactors
- Education - rotary evaporator cooling, replacement of running tap water cooling, immersing small samples, photometry, chromatography systems
- Industrial - QC testing, sample preparation, general cooling, reaction chemistry, temperature control, semi-conductor manufacturing, rheometry
- Food - refractometry
- Life-science - electrophoresis cooling
- High temperature cooling - active up to 150ºC
About
Consisting of two models, all products in the ecocool range are supplied assembled as ready to use kits, complete with accessory hosing, clips and connectors as standard.
- Choice of two models, temperature range -30°C to 150°C (model dependent)
- 3 year warranty with Grant renowned service and support, no registration required
- Active cooling through the whole temperature range
- True energy saving of up to 80% against standard compressor units
- Built in Britain to the highest specifications
- Thermostat and chiller work in harmony, neither will operate alone, eliminating any danger of overheating or freezing
- Single front switch for user convenience
- Modern, sleek, attractive design
Refrigerated Circulating Bath
- Dimensions (h x d x w)630 x 490 x 240
- Capacity4,5
- Temperature range-20 to 100
- RefrigerantR290
- Min/Max liquid level105/140
- Cooling power (typical) @20ºC250
- Cooling power (typical) @0ºC0W200
- Cooling power (typical) @-10ºC100
- Cooling power (typical) @-20ºC50
- Relay control (of refrigeration system or external device)-
- Tank opening120 x 150mm
- Display4 digit LED
- Electrical power (max) W2160/2070 (60/50 Hz)
