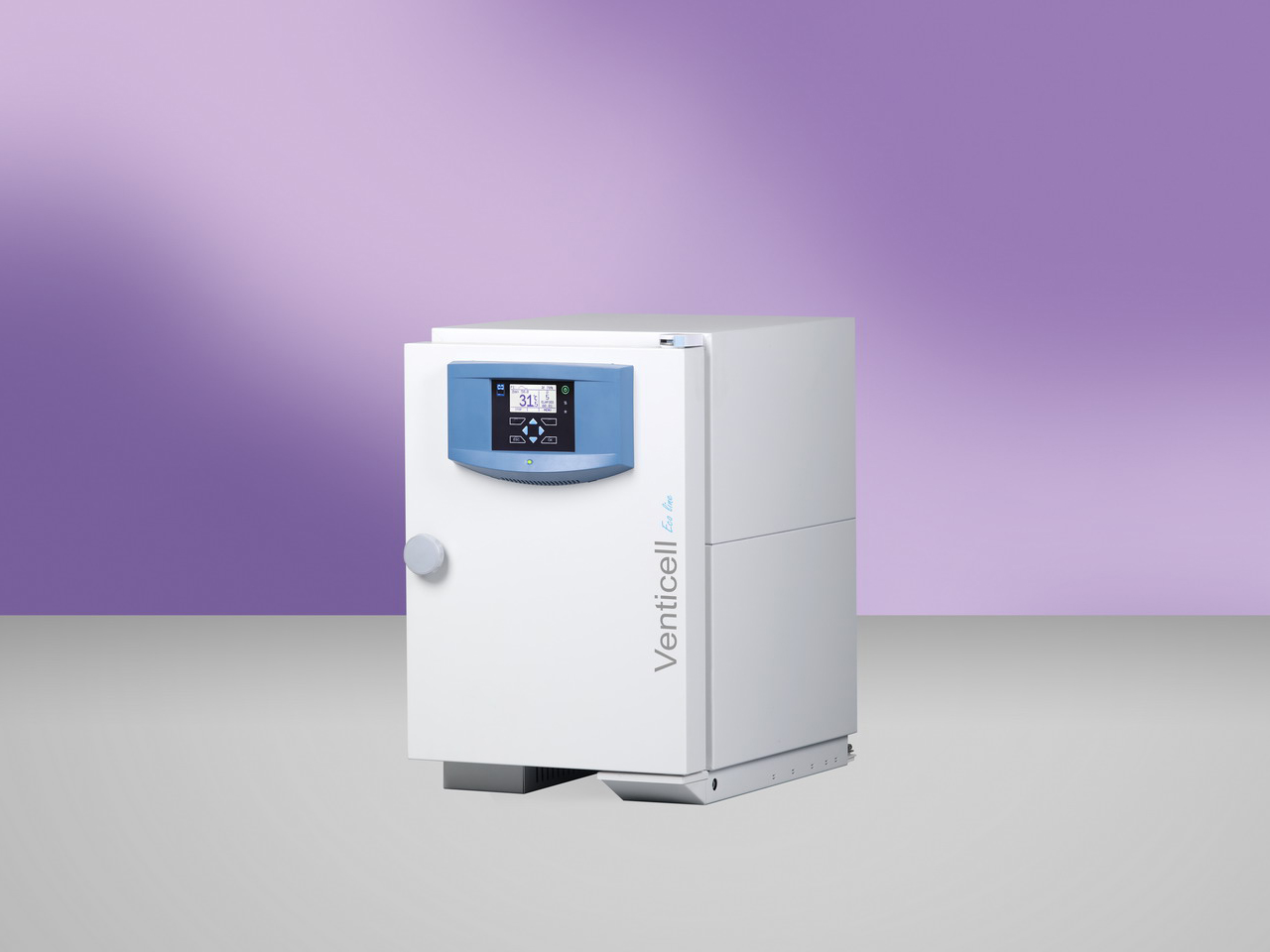

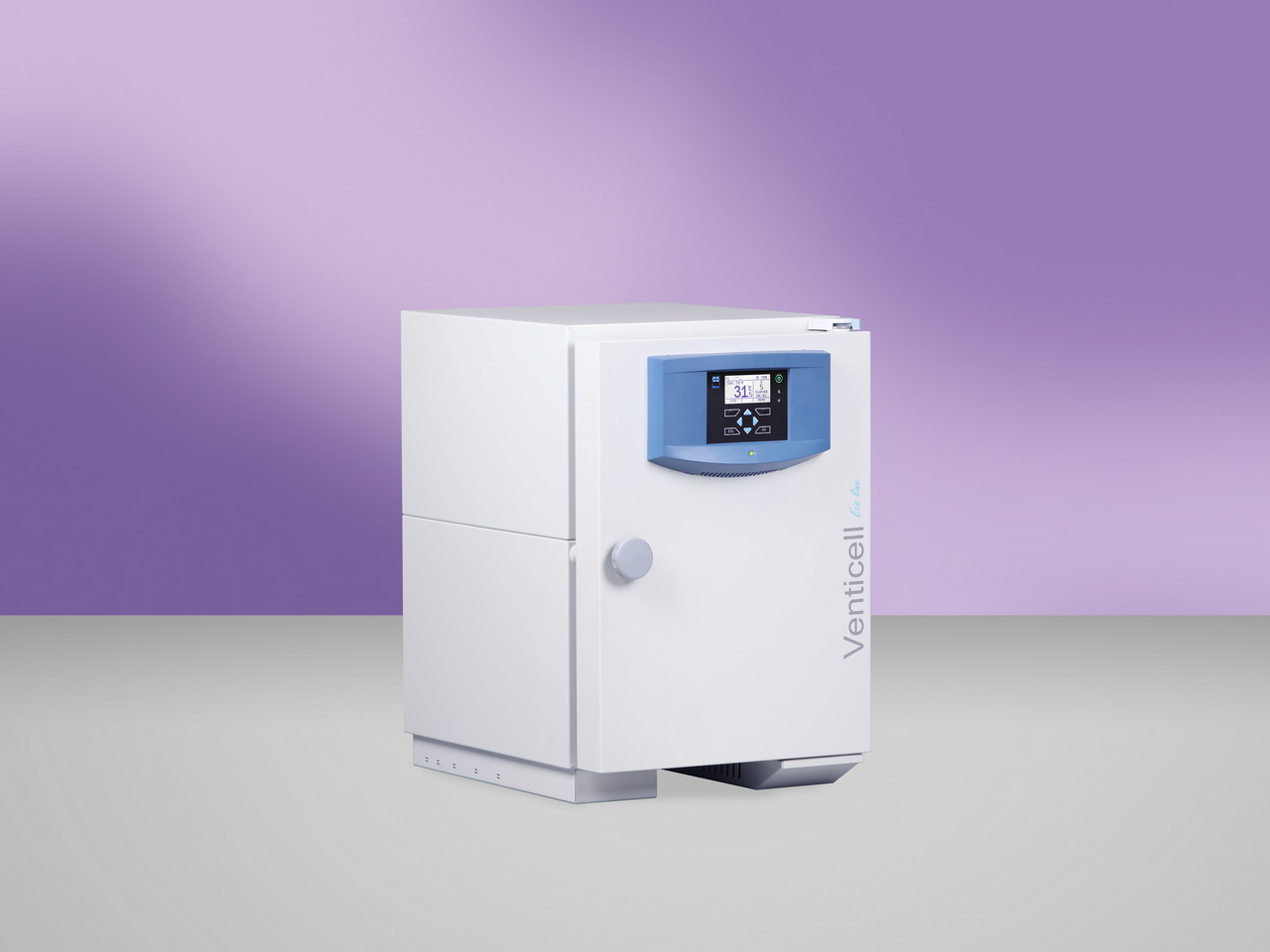

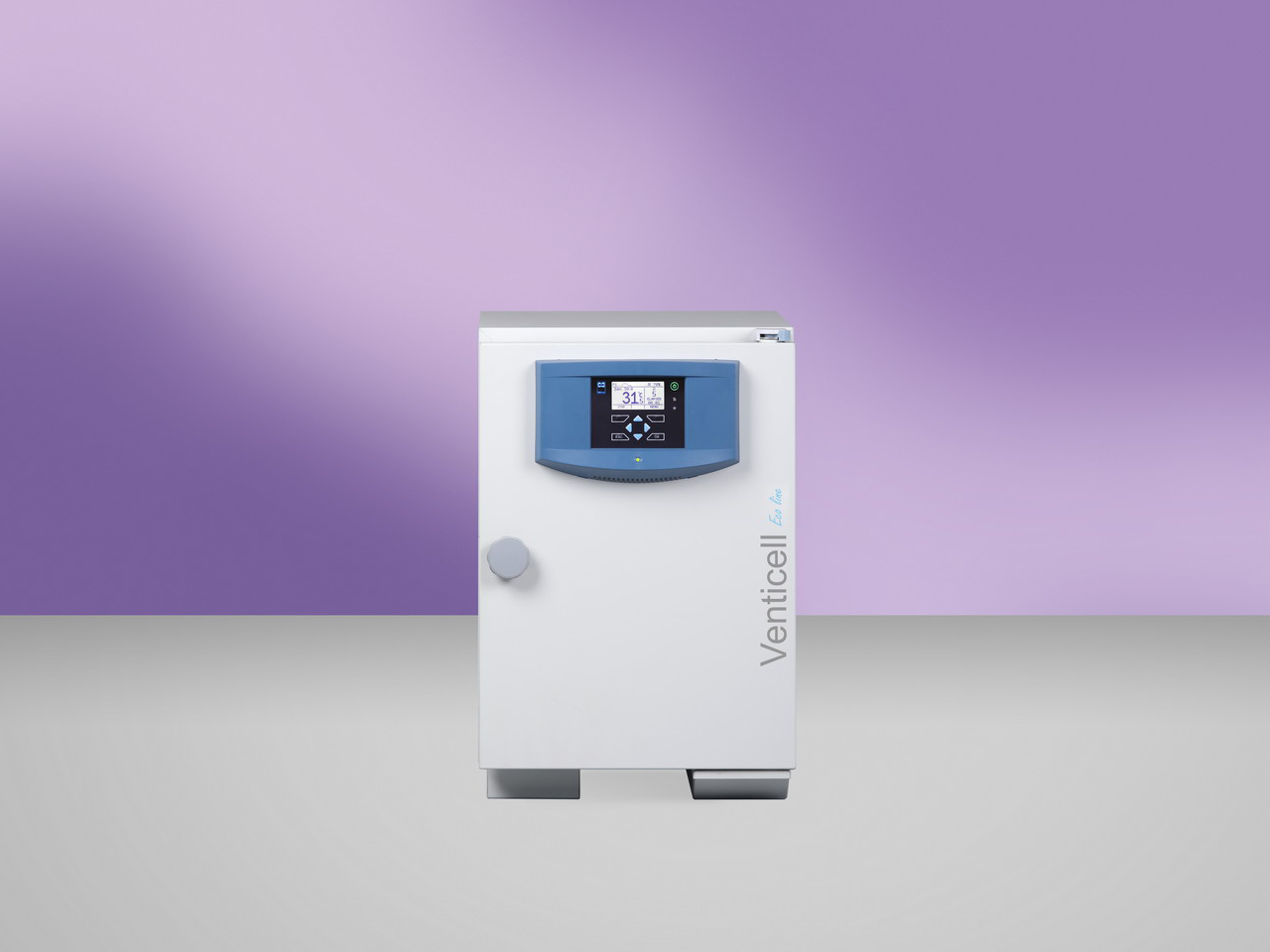

VENTICELL 22 - ECO line
0.00SAR
Product Details
- precise and fast laboratory drying oven
- chamber volume 22 litres
- temperature range from 10°C above ambient to 250/300°C
- forced air circulation system in the chamber guarantees homogeneous temperature distribution in all the processes of drying, heating and sterilization of materials in laboratories
- high operation comfort, precise temperature control and short chamber temperature equalization times after the door opening
- higher speed and accuracy of all the tempering procedures ensures economical operation, especially suitable for high humidity materials, for demanding and accurate tests and processes
- wide selection of optional equipment and accessories
- output for connecting a printer or PC
- possibility of validation (IQ, OQ)
- precise and fast laboratory drying oven
- chamber volume 22 litres
- temperature range from 10°C above ambient to 250/300°C
- forced air circulation system in the chamber guarantees homogeneous temperature distribution in all the processes of drying, heating and sterilization of materials in laboratories
- high operation comfort, precise temperature control and short chamber temperature equalization times after the door opening
- higher speed and accuracy of all the tempering procedures ensures economical operation, especially suitable for high humidity materials, for demanding and accurate tests and processes
- wide selection of optional equipment and accessories
- output for connecting a printer or PC
- possibility of validation (IQ, OQ)

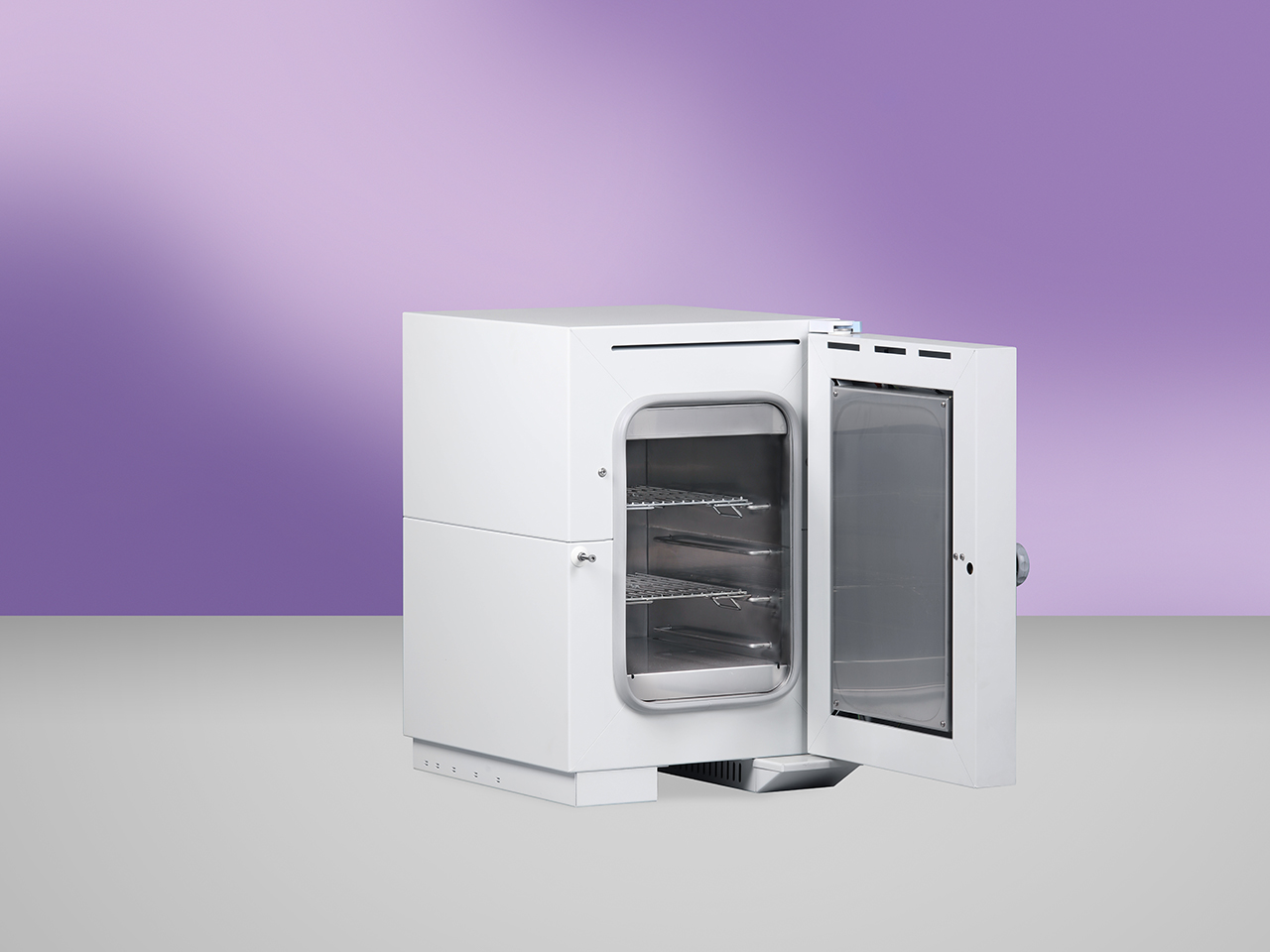

Interior of stainless steel material No. 1.4301
volume 22 l depth 320 mm width 240 mm height 300 mm
| volume | 22 l |
| depth | 320 mm |
| width | 240 mm |
| height | 300 mm |
Tray
standard equipment 2 pcs storage area (w × d) 185 × 265 mm racks 4 max. number distance between guide rails 60 mm
| standard equipment | 2 pcs |
| storage area (w × d) | 185 × 265 mm |
| racks | 4 max. number |
| distance between guide rails | 60 mm |
Maximal weight of the load *)
inside the oven 25 kg/oven per tray 10 kg/tray
| inside the oven | 25 kg/oven |
| per tray | 10 kg/tray |
Number of doors
1 pcs
| 1 pcs |
External dimensions (including door and handle)
depth 560 mm diameter of the air branch outer/inner 52/49 mm width 406 mm height (inclusive foots - N) 610 (N) mm
| depth | 560 mm |
| diameter of the air branch outer/inner | 52/49 mm |
| width | 406 mm |
| height (inclusive foots - N) | 610 (N) mm |
Package dimensions (three layers carton)
depth 720 mm width 500 mm depth 810 mm
| depth | 720 mm |
| width | 500 mm |
| depth | 810 mm |
Weight
brut 36 kg net 31 kg
| brut | 36 kg |
| net | 31 kg |
Working temperature **) (beginning of the regulation) - VENTICELL / VENTICELL plus
from 10 °C above ambient temp. to 250 °C
| from 10 °C above ambient temp. to | 250 °C |
Temperature accuracy according to DIN 12 880 T2, at working temperature with closed air flap and door, > 50 °C
time variation cca (±) 0,3 °C space deviation (±) % cca (±)% of the reached temperature 1,1 %
| time variation cca (±) | 0,3 °C |
| space deviation (±) % cca (±)% of the reached temperature | 1,1 % |
Time required to reach 250 °C with closed air flap and voltage 230 V
28 min
| 28 min |
Heat emission at 250 °C
420 W
| 420 W |
Air exchange speed at 250 °C
45 cca/hour
| 45 cca/hour |
Electricity - mains 50/60 Hz
max. power input 0,96 kW nominal voltage 230 V current 4,2 A stand by 5 W
*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber.Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.
Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
| max. power input | 0,96 kW |
| nominal voltage | 230 V |
| current | 4,2 A |
| stand by | 5 W |
*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber.Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.
Changes in the design and make reserved.The values may differ depending on specific charge and media parameters.
