AUTOPOL® I 100MM POLARIMETER WITH TEMPTROL® (S3)

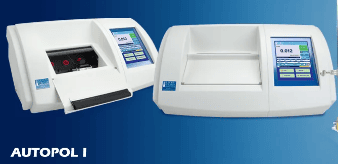

Sugar Polarimeter – AUTOPOL® I

The AUTOPOL® I is Rudolph’s most economical automatic polarimeter designed for education.  It is also a food as well as sugar polarimeter and can be used in less demanding applications where the budget is critical, but quality is still important. The Rudolph Autopol I Automatic Sugar Polarimeter is designed for:

• University – Education Labs
• Select API’s
• Vitamins – Nutraceuticals
• Starch Analysis
• Lactose in Milk
• Flavors – Fragrances
• Chemicals
• Natural Product Research from
• Invert Sugar
• Sugar Polarimeter

Autopol® I Sugar Polarimeter Standard Features:

• 0.01° Arc Accuracy.
• 589nm fixed wavelength.
• Built in thermoprobe for temperature measurement.
• Windows Embedded OS for direct connection to the network server and flexible USB Printing.

Optional Features:

• TempTrol™ Automatic Electronic Heating & Cooling 15° – 40°C ±0.2°
• AP Accuracy Option: 0.004° Arc Optical Rotation
• AP Resolution Option: 0.01, 0.001° Arc Selectable.
• USR Resolution Option: 0.01, 0.001°Arc Selectable

Quality Components – Sugar Polarimeter

Rudolph manufactures its entry-level automatic polarimeter with the same high quality optics as its more expensive instruments. While other manufacturers in this price range use Polaroid Plastic Dichroic Sheet Polarizers, Rudolph does not. Instead, Rudolph uses the same high quality Glan Thompson Calcite Polarizers used in its high accuracy models (Figure A).

Why are high quality polarizing prisms important? Because prisms are two of the most critical optical components in the polarimeter. Polaroid prisms are made of a polymeric plastic where the molecules are stretched and oriented in a specific direction so as to linearly polarize light. These types of plastic sheet polarizers are very inexpensive ($50.00 USD) and are vulnerable to heat, warp over time, deteriorate from moisture, and also have greater light absorption than Calcite Polarizers.

In many cases, the plastic polarizers must be replaced in 3- 5 years. Glan Thompson Calcite Polarizers are comprised of a carbon crystalline structure similar to diamond and have excellent light transmission characteristics. The quality of these prisms is so good, Rudolph guarantees its prisms over the life of the sugar polarimeter.

Polarimeter Sample Temperature

As shown in Figure B, the Autopol I comes with a Temperature Probe so that sample temperature can be displayed and printed. However, If you need to control temperature, The Autopol I-T, should be selected as this has Rudolph’s Patented and exclusive TempTrol®  Temperature Control System.

Optional Accessories

The Autopol® I is a Single Wavelength Instrument operating at 589nm. The 589nm wavelength is often referred to as the Sodium D-Line. The Autopol® I includes a 100mm or 200mm glass sample cell. A full range of optional sugar Polarimeter accessories are available as shown in Figure C.

Increase workflow with Laboratory Automation, our high yield lab automation will allow your employees extra free time to complete other tasks.

All Rudolph Instruments carry our exclusive 20 Commitment to service your instrument.

Rudolph Research Analytical offers a comprehensive range of Preventive Maintenance and Service Programs. Rudolph has demonstrated a commitment to its customers by keeping installed instruments operational, not only for 20 years, but in some cases for over 40 years. This long-term commitment to keeping our instruments running makes the cost of ownership, over the life of a Rudolph Sugar Polarimeter, one of the lowest in the laboratory market segment. At the date this document was published, there is no other laboratory instrument manufacturer guaranteeing service and technical support for 20 years. View the entire 20 Service Guarantee.
