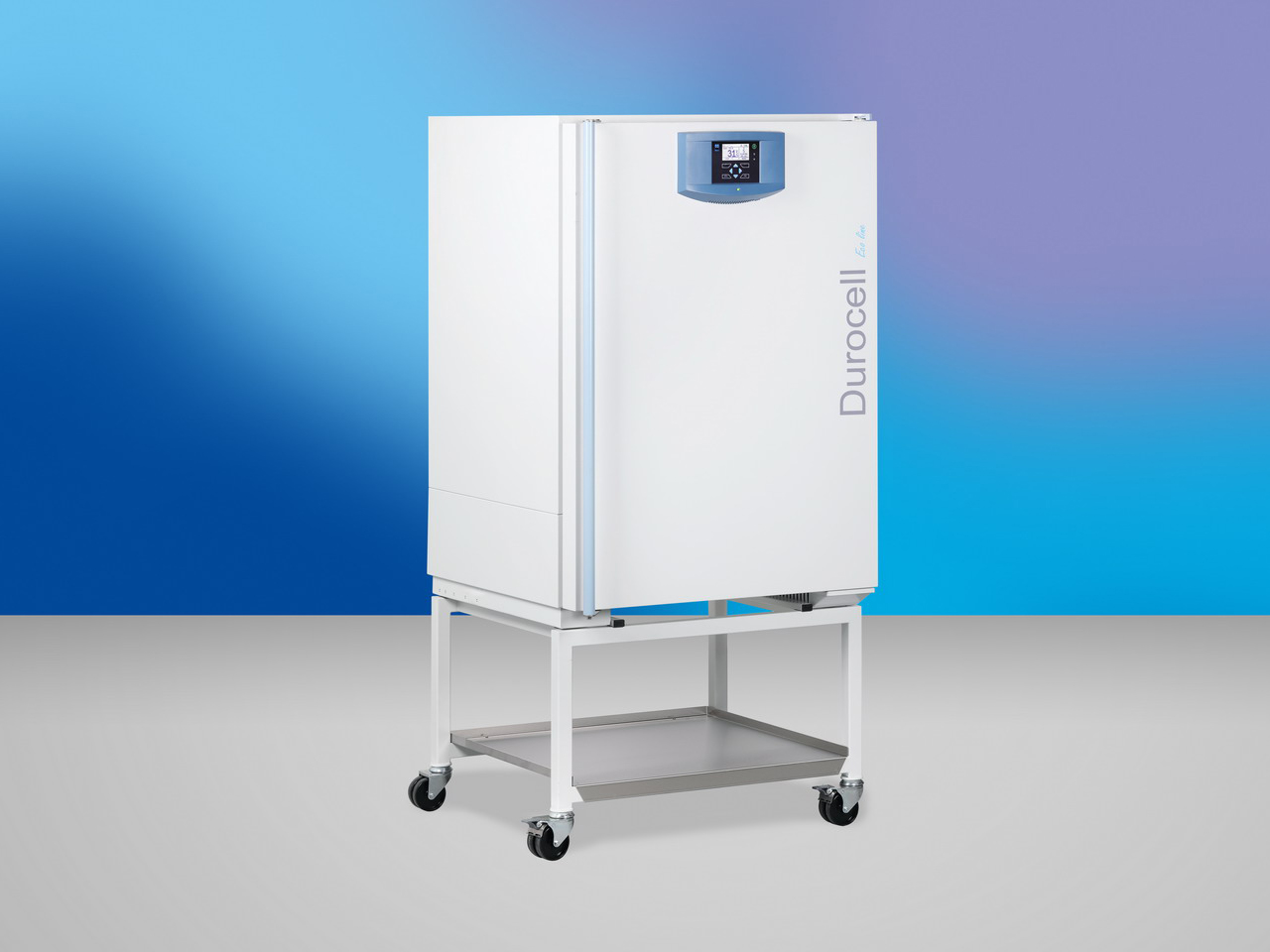

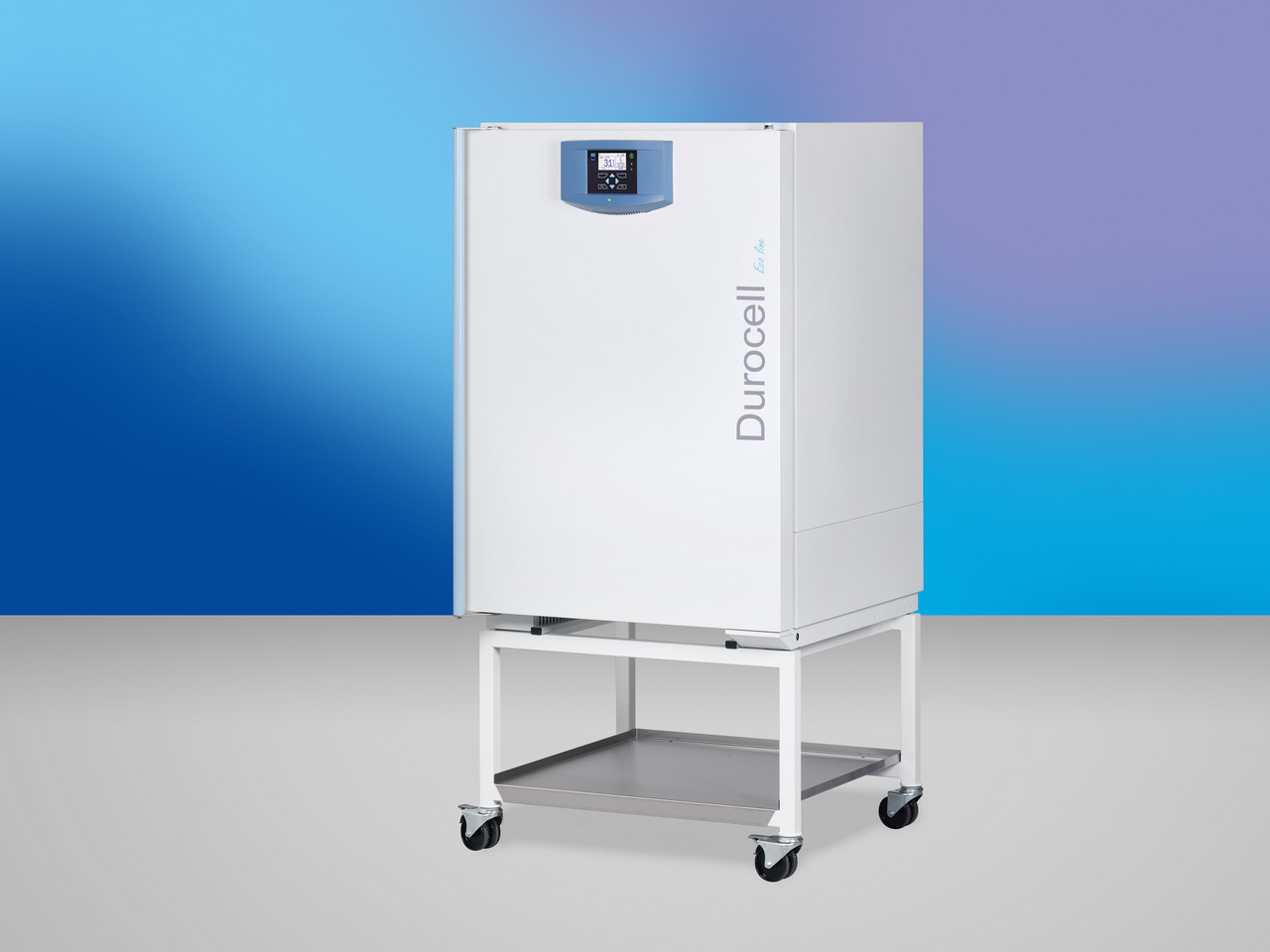

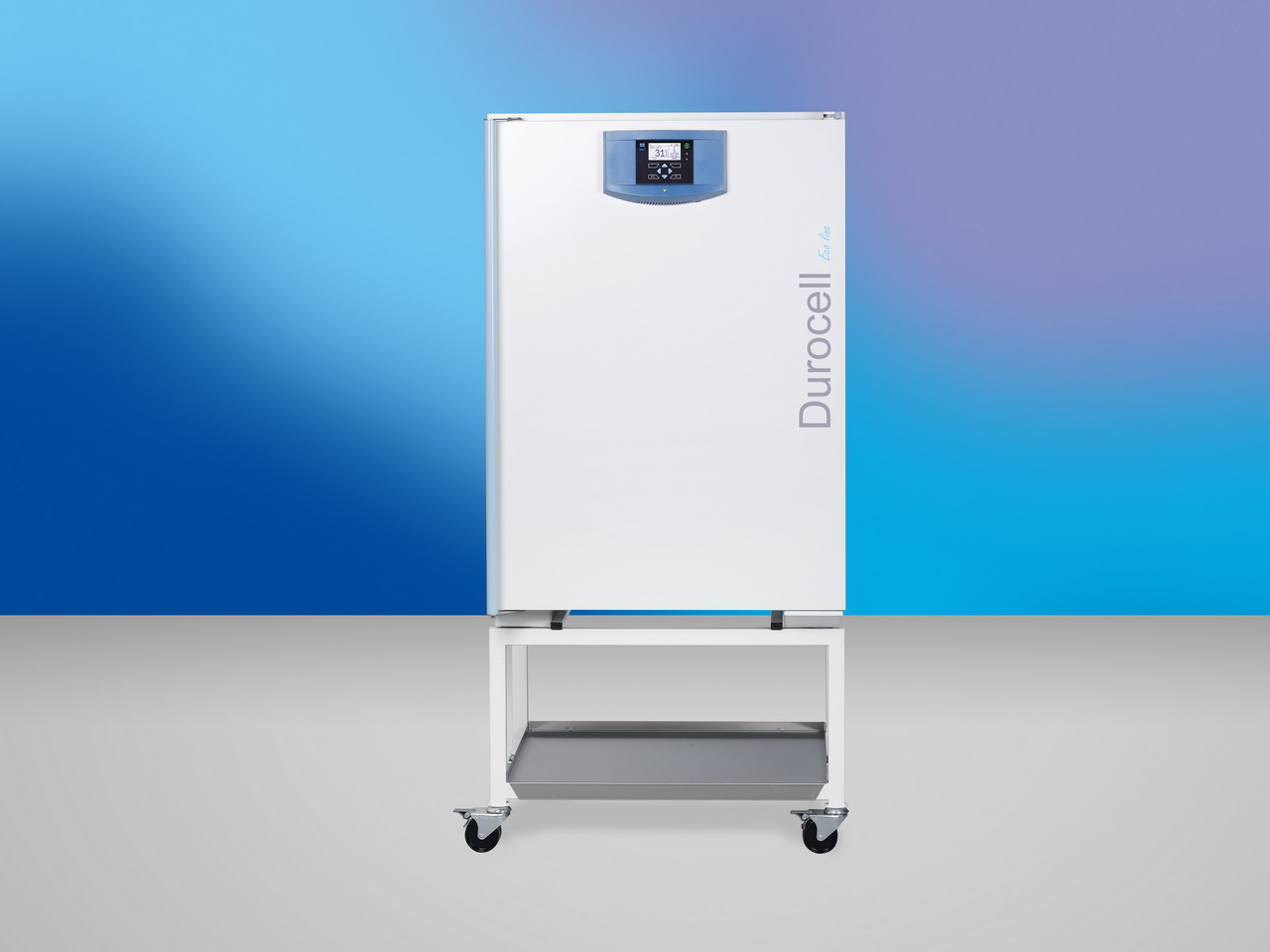

DUROCELL 222 - ECO line

• highly resistant laboratory drying oven
• chamber volume 222 litres
• temperature range from 5°C above ambient to 125°C
• natural fine airflow in the work area, noiseless operation
• high-quality and safe drying, heating and tempering of laboratory materials in the laboratory and industrial areas
• high operation comfort, precise temperature control and short chamber temperature equalization times after the door opening
• wide selection of optional equipment and accessories
• output for connecting a printer or PC
• possibility of validation (IQ, OQ)

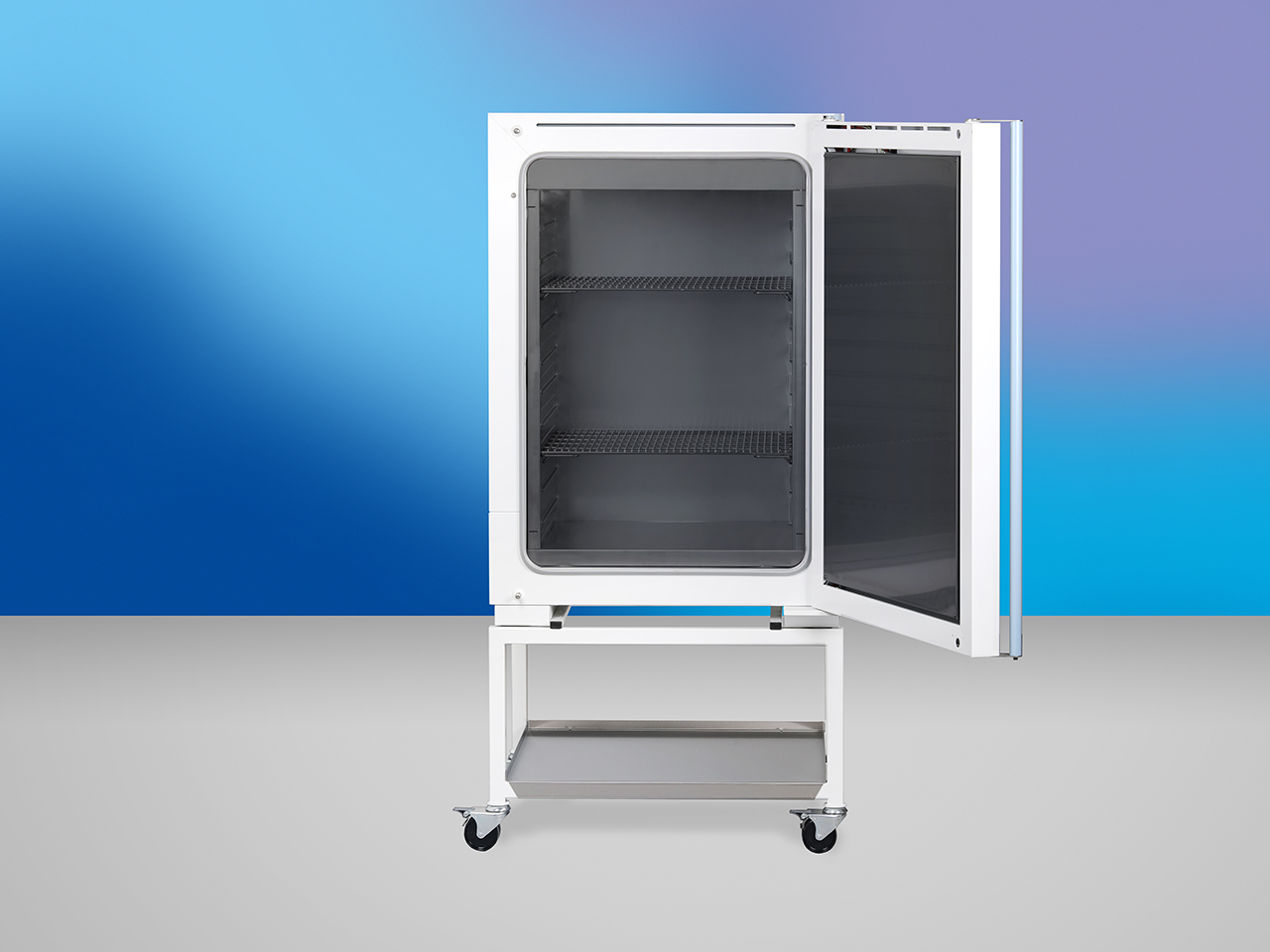

Interior of stainless steel material No. 1.4301

volume	222 l
depth	520 mm
width	540 mm
height	760 mm

Trays

standard equipment	2 pcs
storage area (w × d)	520×485 mm
racks	10 max. no
distance between guide rails	70 mm

Maximal weight of the load*)

inside the oven	70 kg/oven
per tray	30 kg/tray

Door

1 pcs

External dimensions (including door and handle)

depth	830 mm
diameter of the air branch outer/inner	52/49 mm
width	760 mm
height (inclusive foots - N)	1090 (N) mm

Package dimensions (three layers carton)

depth	890 mm
width	820 mm
depth	1260 mm

Weight

brut	116 kg
nett	100 kg

Working temperature (beginning of the regulation)

from 5 °C above ambient temp. to:

125 °C

Temperature accuracy according to DIN 12 880 T2, at working temperature with closed air flap and door

time variation cca (±)	0,8 °C
space deviation cca (±) % of the reached temperature	2 %

Time required to reach 100 °C with closed air flap and voltage 230 V

50 min

Heat emission at 100 °C

630 W

Air exchange speed at 100 °C

5 per hour

Electricity – mains 50/60 Hz

max. power input	1,8 kW
nominal voltage	230 V
current	7,8 A
input in stand by mode	5 W

Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.

Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
