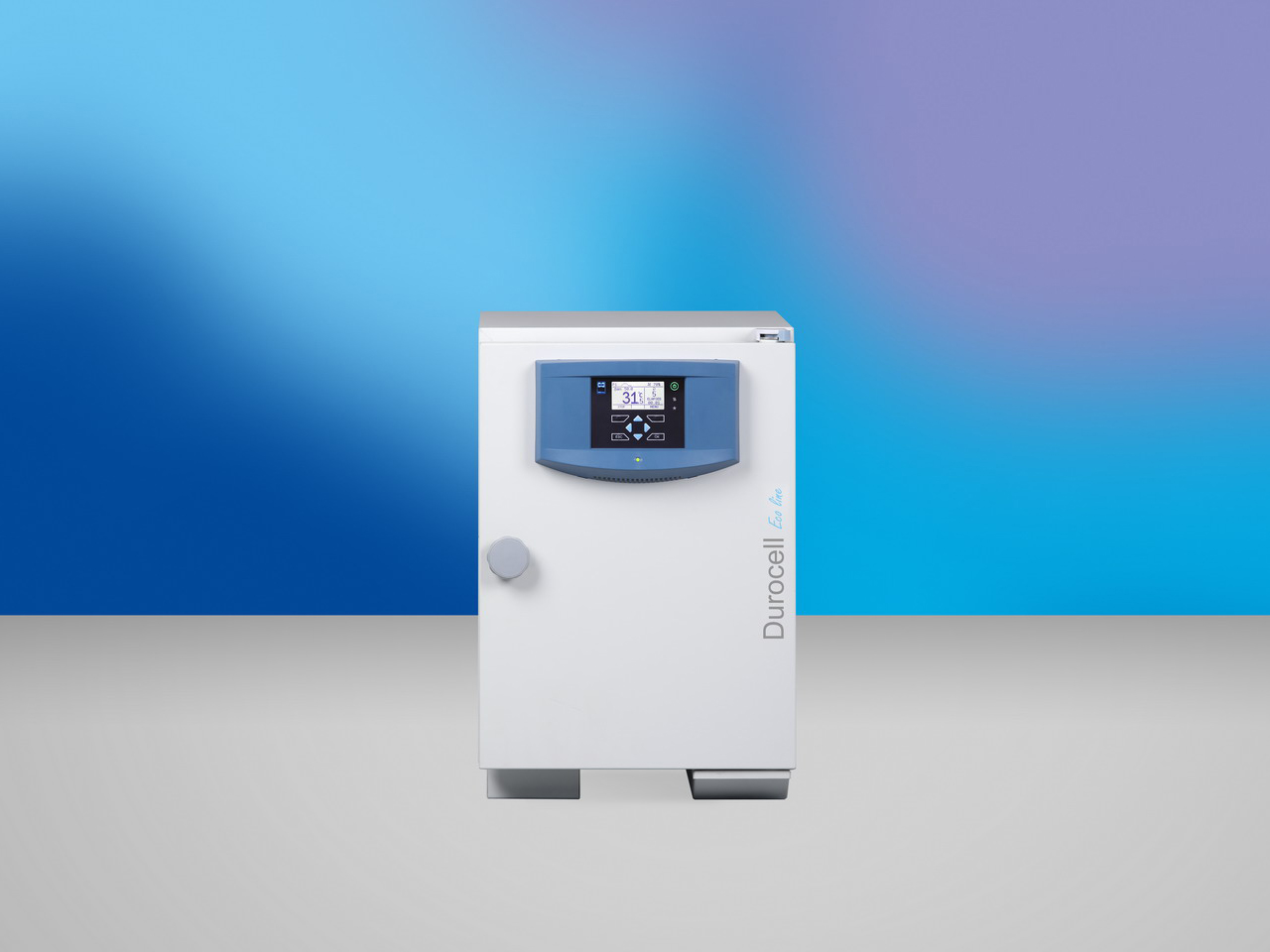

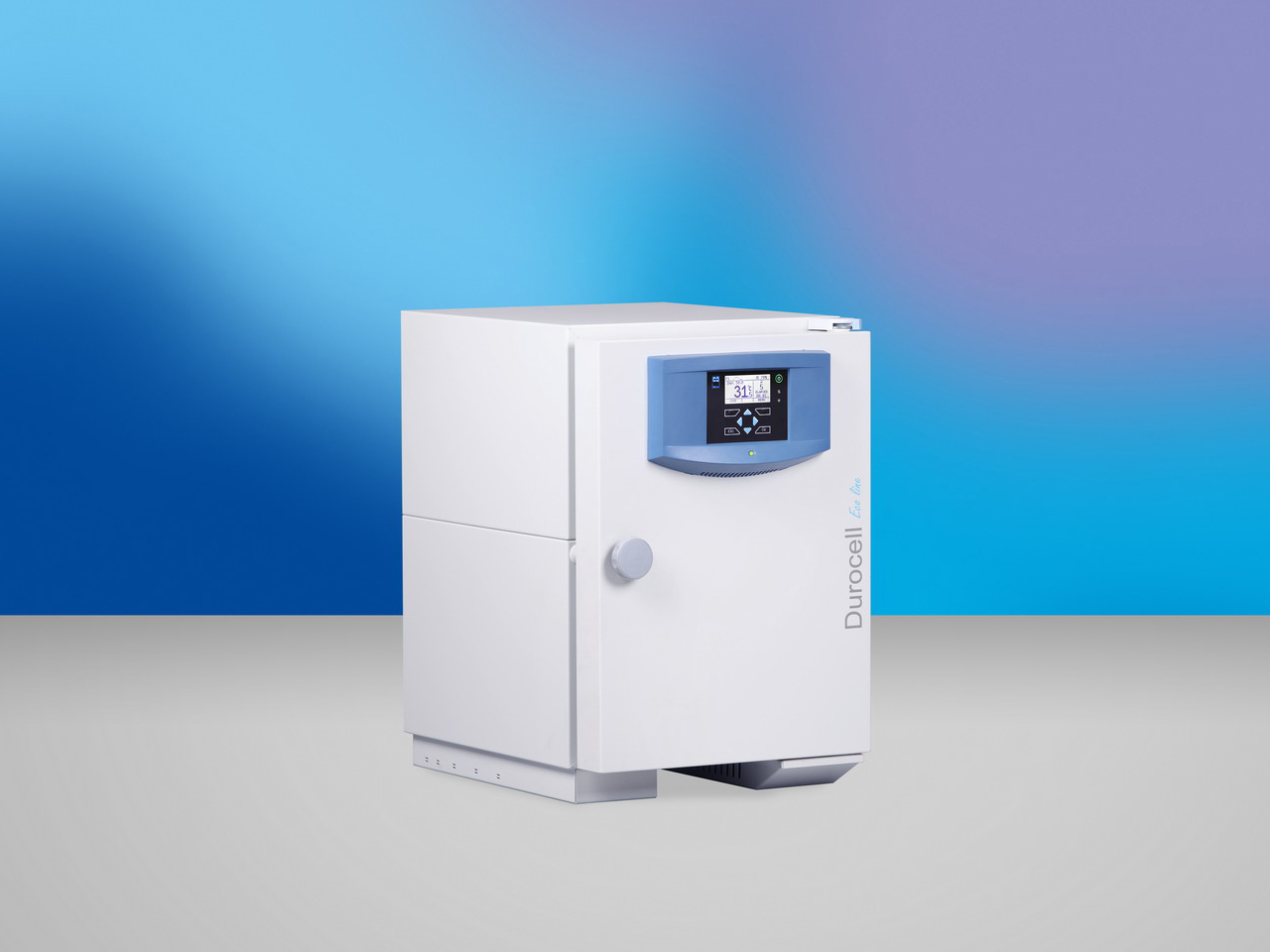

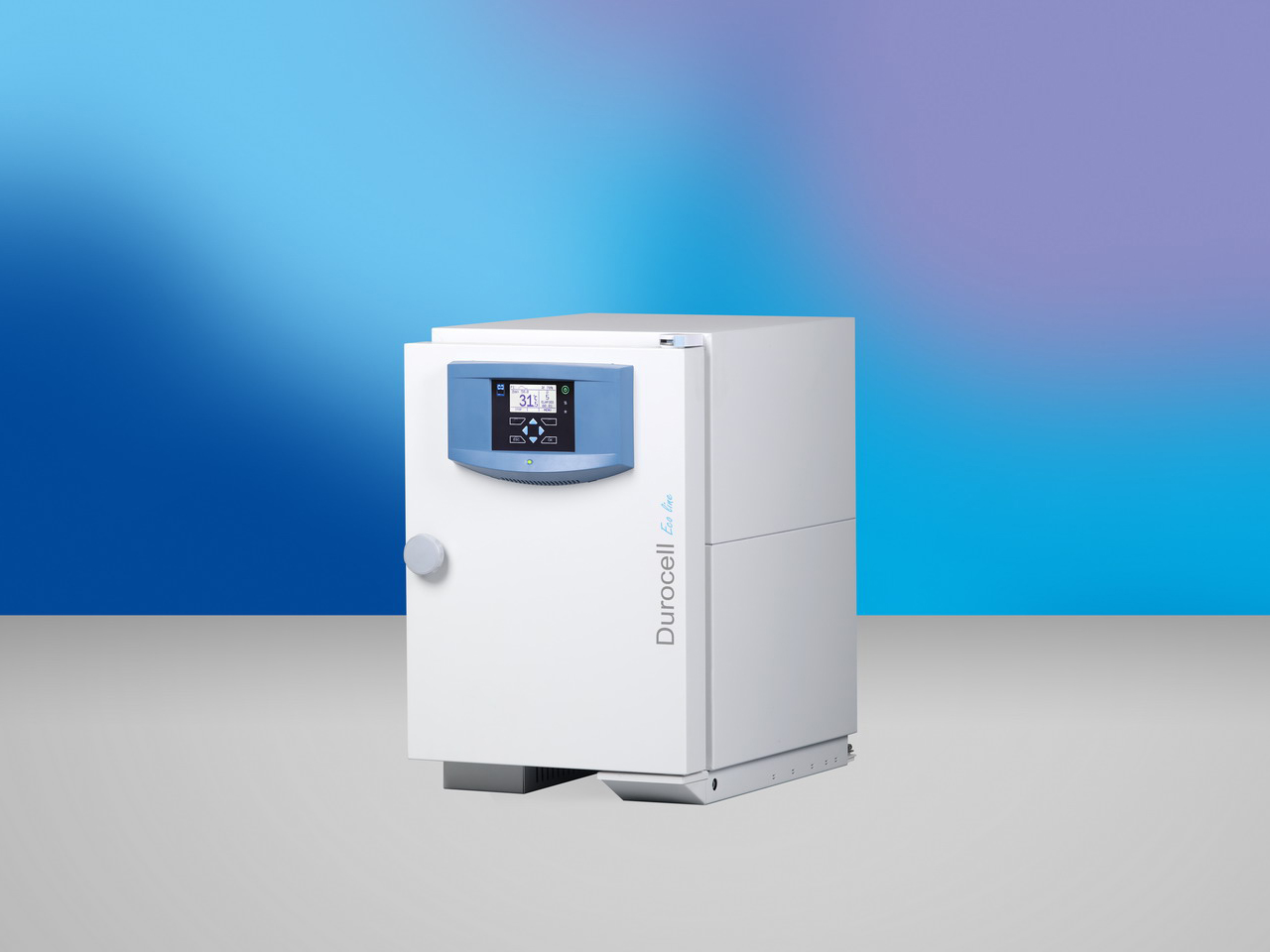

DUROCELL 22 - ECO line
0.00SAR
Product Details
- highly resistant laboratory drying oven
- chamber volume 22 litres
- temperature range from 5°C above ambient to 125°C
- natural fine airflow in the work area, noiseless operation
- high-quality and safe drying, heating and tempering of laboratory materials in the laboratory and industrial areas
- high operation comfort, precise temperature control and short chamber temperature equalization times after the door opening
- wide selection of optional equipment and accessories
- output for connecting a printer or PC
- possibility of validation (IQ, OQ)

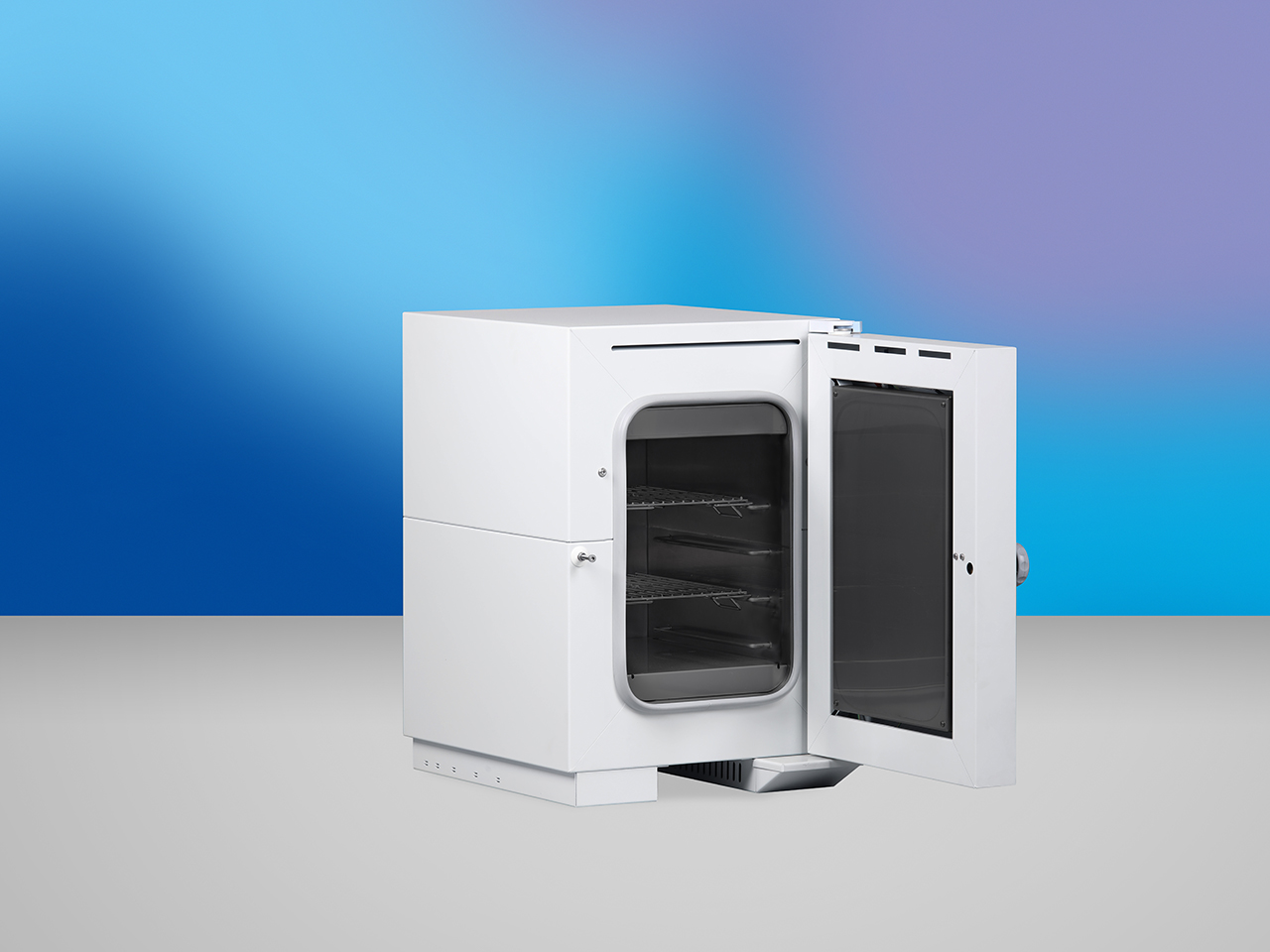

Interior of stainless steel material No. 1.4301
| volume | 22 l |
| depth | 350 mm |
| width | 240 mm |
| height | 300 mm |
Trays
| standard equipment | 2 pcs |
| storage area (w × d) | 185×265 mm |
| racks | 4 max. no |
| distance between guide rails | 60 mm |
Maximal weight of the load*)
| inside the oven | 25 kg/oven |
| per tray | 10 kg/tray |
Door
| 1 pcs |
External dimensions (including door and handle)
| depth | 560 mm |
| diameter of the air branch outer/inner | 52/49 mm |
| width | 406 mm |
| height (inclusive foots - N) | 610 (N) mm |
Package dimensions (three layers carton)
| depth | 720 mm |
| width | 500 mm |
| depth | 810 mm |
Weight
| brut | 36 kg |
| nett | 31 kg |
Working temperature (beginning of the regulation)
| from 5 °C above ambient temp. to: | 125 °C |
Temperature accuracy according to DIN 12 880 T2, at working temperature with closed air flap and door
| time variation cca (±) | 1 °C |
| space deviation cca (±) % of the reached temperature | 2,7 % |
Time required to reach 100 °C with closed air flap and voltage 230 V
| 34 min |
Heat emission at 100 °C
| 140 W |
Air exchange speed at 100 °C
| 6 per hour |
Electricity – mains 50/60 Hz
| max. power input | 0,9 kW |
| nominal voltage | 230 V |
| current | 4 A |
| input in stand by mode | 5 W |
Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.
Changes in the design and make reserved.The values may differ depending on specific charge and media parameters.
