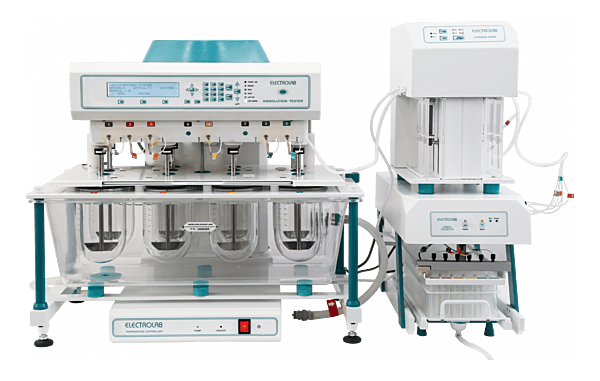

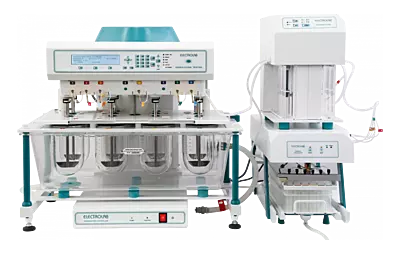

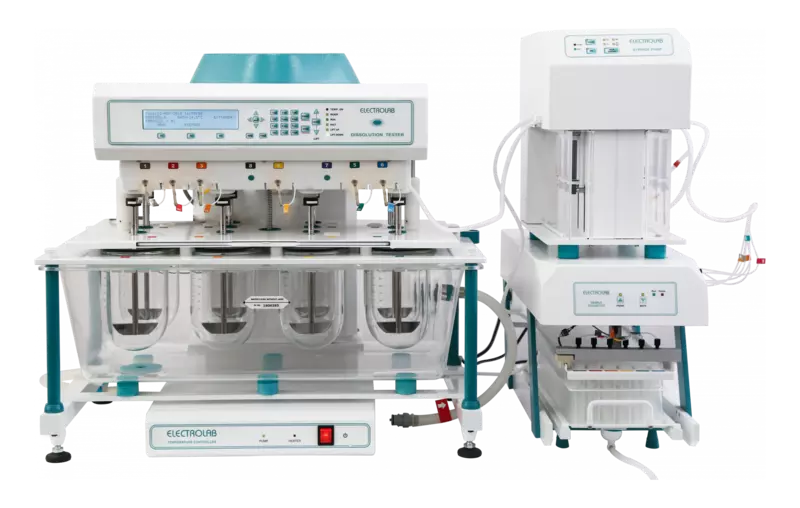

Inspire 08 with Sample Collector (Dc)
Non-returnable
0.00SAR
Out of stock
| New larger LCD display of 40 characters and 4 lines for user friendly operation |
| Multilevel security with password |
| Alphanumeric data entry of product and user details |
| Unique TimeAction™ function which allows media changeover and infinity test run, ideal for sustained and controlled release products |
| Complies with USP, IP, Ph. Eur. and JP specifications |
| Automatic stirrer height positioning for USP 1, 2, 5, 6, intrinsic test methods |
| Easy Snap-Fit™ shaft locking mechanism for positive engagement and wobble free operation |
| Clear water bath with metal top-plate |
| Precise individual vessel centering system |
| Adjustable leveling of instrument |
| Vibration free smooth motorized lift movement |
| Isolated water circulating pump for precise |
| temperature control of the water bath |
| 20 programmable protocols |
| 16 programmable sampling intervals |
| Easy to empty and clean water bath with bottom drainage |
| Designed to minimize routine validation |
| Report for online validation of test, protocol, error log during the test |
| Programmable wake-up for temperature control |
| Programmable sample volume from 1 mL to 20 mL |
| Audio-visual indicators for system status |
| Power failure detection facility |
| Split Rinse to avoid carry over |
| Replenishment |
| Individual vessel temperature monitoring |
Product Details
| Model | Inspire-08 with sample Collector dc |
| Speed range | Variable speed from 20 to 300 RPM |
| Speed accuracy | +1 RPM |
| Temperature range | 20°C to 40°C (Extended range 10°C to 40°C & 20°C to 55°C optional) |
| Temperature accuracy | ±0.1°C |
| Display | 40 x 4 character backlighted LCD |
| No. of protocols | 20 maximum |
| No. of samples | 16 |
| Sample interval | Maximum 16 of 1 min to 23 hrs 59 min |
| Printer interface | Serial port |
| Printer supported | 80 column Dot Matrix printer |
| No. of syringes (10ml) | Standard: 6, Optional: 8 (25mL Optional) |
| Interface port | RS 485/RS 232 |
| Water bath | One piece moulded clear bath |
| Temperature controller | Heater: 1kW, SS 316 with thermal protection Sensor: RTD |
| Vessel capacity | 150 ml, 250 ml, 500 ml, 1L |
| Electrical power | 220/230 VAC, 50/60 Hz,1.3 kW/6 Amp 110 VAC, 50/60 Hz.1.3 kW/10 Amp |
| Dimensions ( W x L x H) | 517 X 1100 X 665 |
| Weight | 141 kg |
