Electrolab

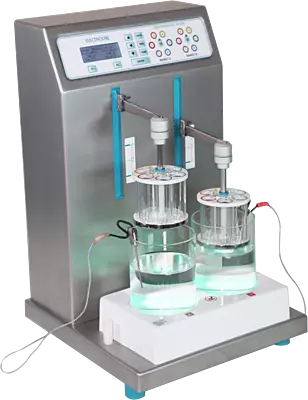

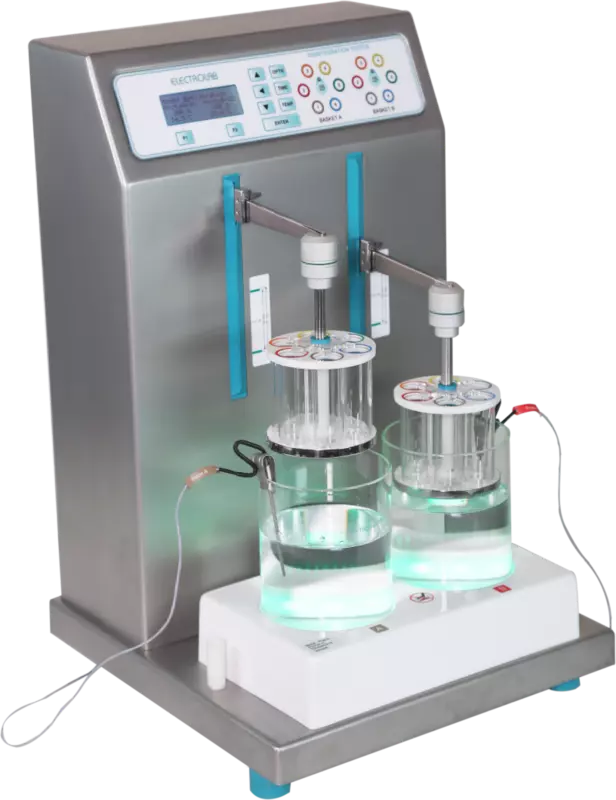

Disintegration Tester EDI-2SA
| Complies with USP, IP, Ph. Eur. specifications |
| Bathless heating (saves water, time, electricity) |
| Bathless disintegration tester is maintenance-free |
| Specially designed efficient heater plates for vessel, heats media quickly |
| Basket park-out from beaker on test completion |
| Disintegration time registration of individual tablets |
| Test results and validation gets printed |
| Individual motor and timer with external probe for each basket |
| Magnetically coupled basket for easy loadingbasket for easy loading |
| 50 Different users can login |
| Date & Time Lock Facility |
| Two individual jars |
| Bottom illumination for better view of tablets |
Non-returnable
Out of stock
Share:
Product Details
| Model | EDI-2SA |
| Beaker | 1000 ml glass beakers (2 nos.) |
| Basket | 2 nos. each carrying 6 test positions (dimensions as per latest USP) |
| Guided disc | Perforated cylindrical disc 6 nos. in each basket (dimensions as per latest USP) |
| Printer interface | RS232 Serial port |
| Display | 20 x 4 LCD |
| Motor | Single shaft 6V DC motor 10 kg cm torque (2 nos.) |
| Illumination | Green LED |
| Power supply | 230 V AC, 50 Hz, 550 VA |
| No. of strokes | 30 ±1 strokes/min |
| Stroke height | 55 mm ±2 mm |
| Controlled temperature range | 15° C to 40° C |
| Temperature resolution | ±0.5° C |
| Dimension ( L x W x H) | 360 x 372 x 570 |
| Weight Net | 18 kg |
