Digital display Overhead Stirrer 200
7,870.00SAR

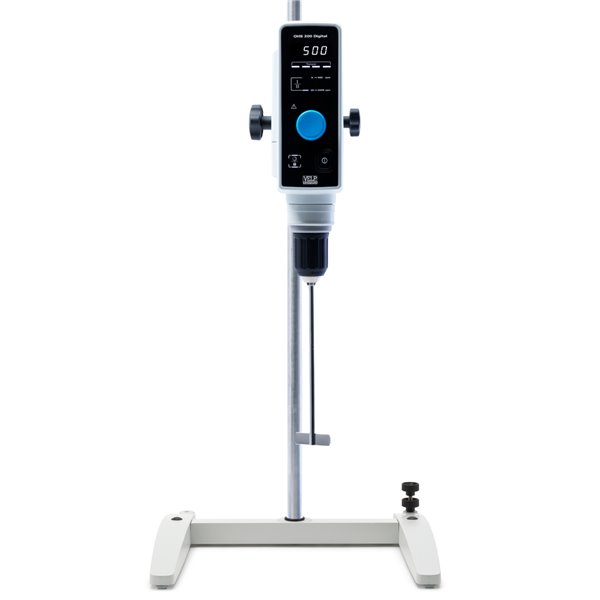

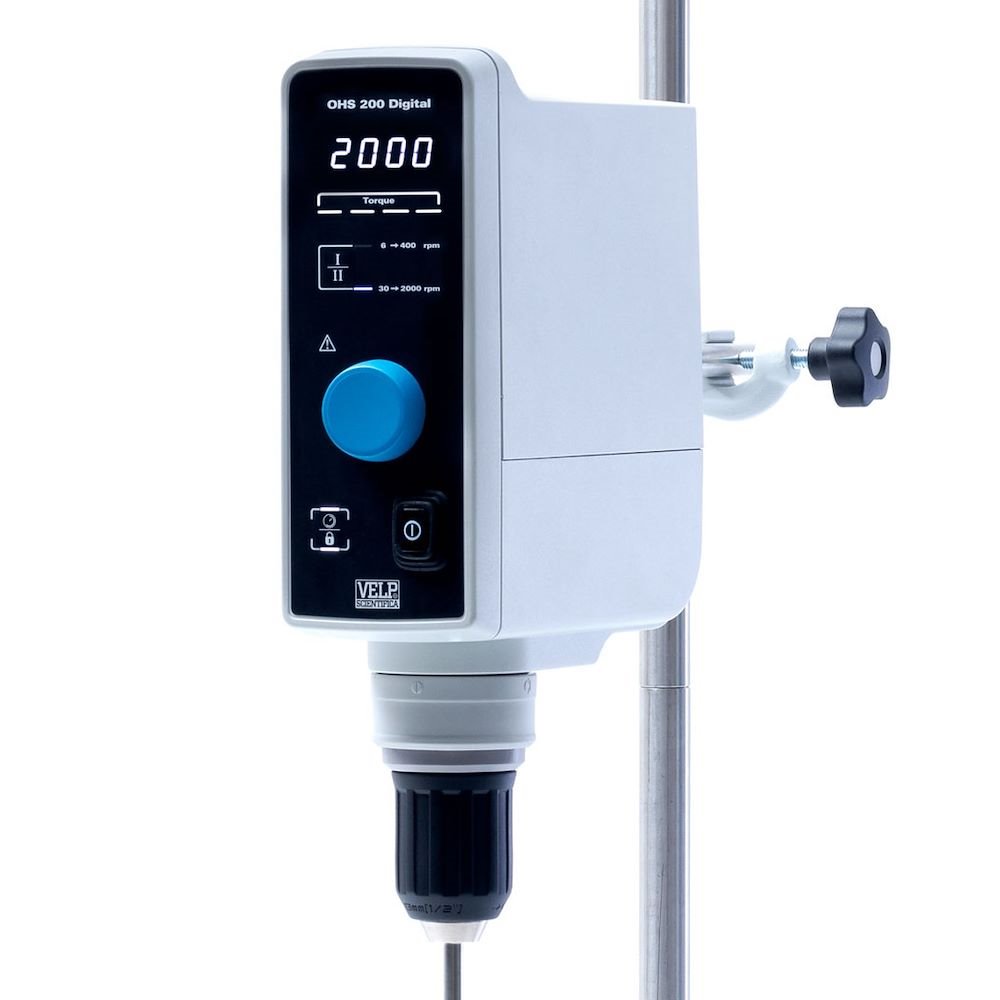

OHS 200 Digital Overhead Stirrer
Overhead Stirrer with 200 Ncm torque, double speed gear, digital display and timer able to stir up to 100 l.
Product Details
Specifications
Safety and resistance for your lab
OHS 200 Digital is designed to guarantee the highest safety standards. The resistant sealed housing and the IP 54 Protection Rating guarantee durability even in the most aggressive environments.- Integrated overload, overtemperature, and overcurrent safety alarms will preserve the performance over time and stop stirring for maximum safety in your lab.
- Safe start and stop knob operation and lock key avoid unintended stat up and changes of the working conditions.
OHS 200 Digital ensures continuous operation and is backed by 3 Years Warranty extension.
OHS 200 Digital is designed to guarantee the highest safety standards. The resistant sealed housing and the IP 54 Protection Rating guarantee durability even in the most aggressive environments.
OHS 200 Digital ensures continuous operation and is backed by 3 Years Warranty extension.
- Integrated overload, overtemperature, and overcurrent safety alarms will preserve the performance over time and stop stirring for maximum safety in your lab.
- Safe start and stop knob operation and lock key avoid unintended stat up and changes of the working conditions.
OHS 200 Digital ensures continuous operation and is backed by 3 Years Warranty extension.
Best-in-class Stirring Power
The OHS 200 Digital is the ideal solution for demanding applications operating with viscosities up to 100.000 mPa.
The electronic controlled brushless motor of the OHS 200 Digital stirs up to 100 l with a maximum torque of 200 Ncm, and ensures the longest lifespan.
SpeedServoTM torque compensation technology keeps the speed constant automatically adjusting to viscosity changes.
Thanks to the two-speed gears it provides the best performance for both high torque and high volume operations:- Speed gear 1: 6-400 rpm
- Speed gear 2: 30-2000 rpm
The OHS 200 Digital is the ideal solution for demanding applications operating with viscosities up to 100.000 mPa.
The electronic controlled brushless motor of the OHS 200 Digital stirs up to 100 l with a maximum torque of 200 Ncm, and ensures the longest lifespan.
SpeedServoTM torque compensation technology keeps the speed constant automatically adjusting to viscosity changes.
Thanks to the two-speed gears it provides the best performance for both high torque and high volume operations:
The electronic controlled brushless motor of the OHS 200 Digital stirs up to 100 l with a maximum torque of 200 Ncm, and ensures the longest lifespan.
SpeedServoTM torque compensation technology keeps the speed constant automatically adjusting to viscosity changes.
Thanks to the two-speed gears it provides the best performance for both high torque and high volume operations:
- Speed gear 1: 6-400 rpm
- Speed gear 2: 30-2000 rpm
Constant torque at any speed
The brushless motor and the microprocessor guarantee excellent performance marking the difference between a conventional overhead and the VELP OHS Series.
The torque is stable throughout the whole speed range, ensuring stirring at maximum torque even at the highest speed.
This is a very important parameter for the reproducibility of your tests.
The brushless motor and the microprocessor guarantee excellent performance marking the difference between a conventional overhead and the VELP OHS Series.
The torque is stable throughout the whole speed range, ensuring stirring at maximum torque even at the highest speed.
This is a very important parameter for the reproducibility of your tests.
The torque is stable throughout the whole speed range, ensuring stirring at maximum torque even at the highest speed.
This is a very important parameter for the reproducibility of your tests.
SmartChuck™ simplifies shaft accommodation
The OHS Digital SmartChuck™ technology simplifies the shaft accommodation process that can be carried out even with one hand and does not require any tool, making your life easier.
With two simple operations, you can unlock the protection ring to drive the shaft in and out with maximum ease.
The opening of the ring during the stirring process will automatically block the analysis and the instrument informs you for maximum safety.
The OHS Digital SmartChuck™ technology simplifies the shaft accommodation process that can be carried out even with one hand and does not require any tool, making your life easier.
With two simple operations, you can unlock the protection ring to drive the shaft in and out with maximum ease.
The opening of the ring during the stirring process will automatically block the analysis and the instrument informs you for maximum safety.
With two simple operations, you can unlock the protection ring to drive the shaft in and out with maximum ease.
The opening of the ring during the stirring process will automatically block the analysis and the instrument informs you for maximum safety.
Easy-to-use and precise
All the necessary information are available at a glance and the dedicated Torque Display with 4 LED segments informs about viscosity changes during the operation.
The OHS Digital integrated timer allows unattended operations. Program your OHS Digital from 1min to 99.59h and walk away!
USB interface facilitates software updates if required.
All the necessary information are available at a glance and the dedicated Torque Display with 4 LED segments informs about viscosity changes during the operation.
The OHS Digital integrated timer allows unattended operations. Program your OHS Digital from 1min to 99.59h and walk away!
USB interface facilitates software updates if required.
The OHS Digital integrated timer allows unattended operations. Program your OHS Digital from 1min to 99.59h and walk away!
USB interface facilitates software updates if required.
overhead stirrers
- DISPLAYDigital Display
- USER INTERFACEDigital
- MOTORBrushless DC
- STIRRING VOLUME (H2O)Up to 100 L
- SPEED GEARS2
- MAX TORQUE200 Ncm
- STIRRING SPEED RANGE6-400 rpm 30-2000 rpm
- SPEED SETTING RESOLUTION1 rpm
- SPEED CONTROLDigital
- MAX VISCOSITY50.000 mPa*s
- TORQUE COMPENSATIONSpeedServo™
- TEMPERATURE MEASURING RANGE-200 to +550 °C
- TEMPERATURE RESOLUTION0.1 °C
- PROTECTION CLASS DIN EN 60529IP 54
- CHUCK RANGEØ from 1 to 13 mm
- SHAFT DIAMATER PASS-THROUGHup to 8.5mm
- EXTERNAL PROBE CONNECTIONPt100
- INTERFACESUSB / WiFi
