Electrolab

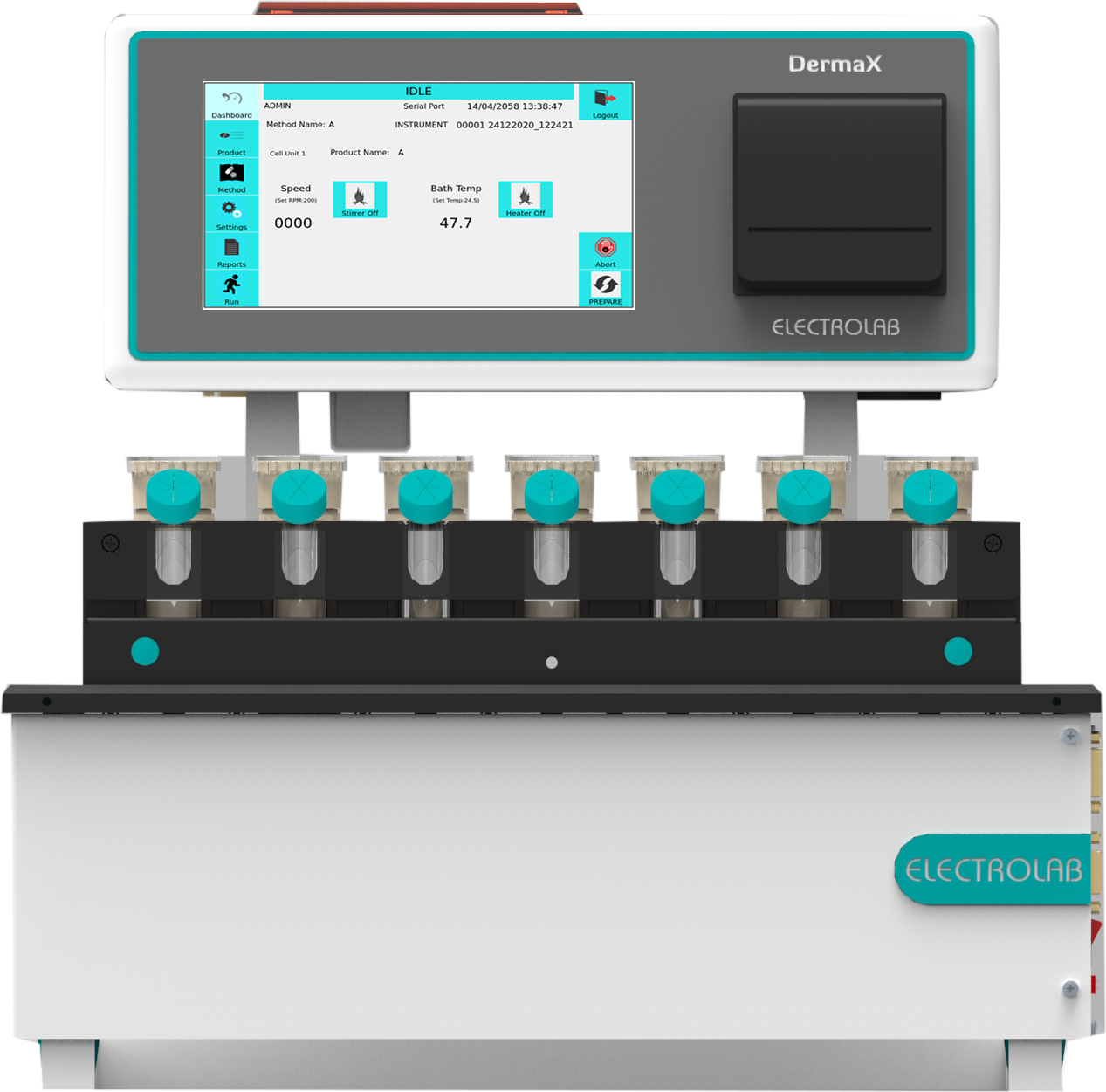

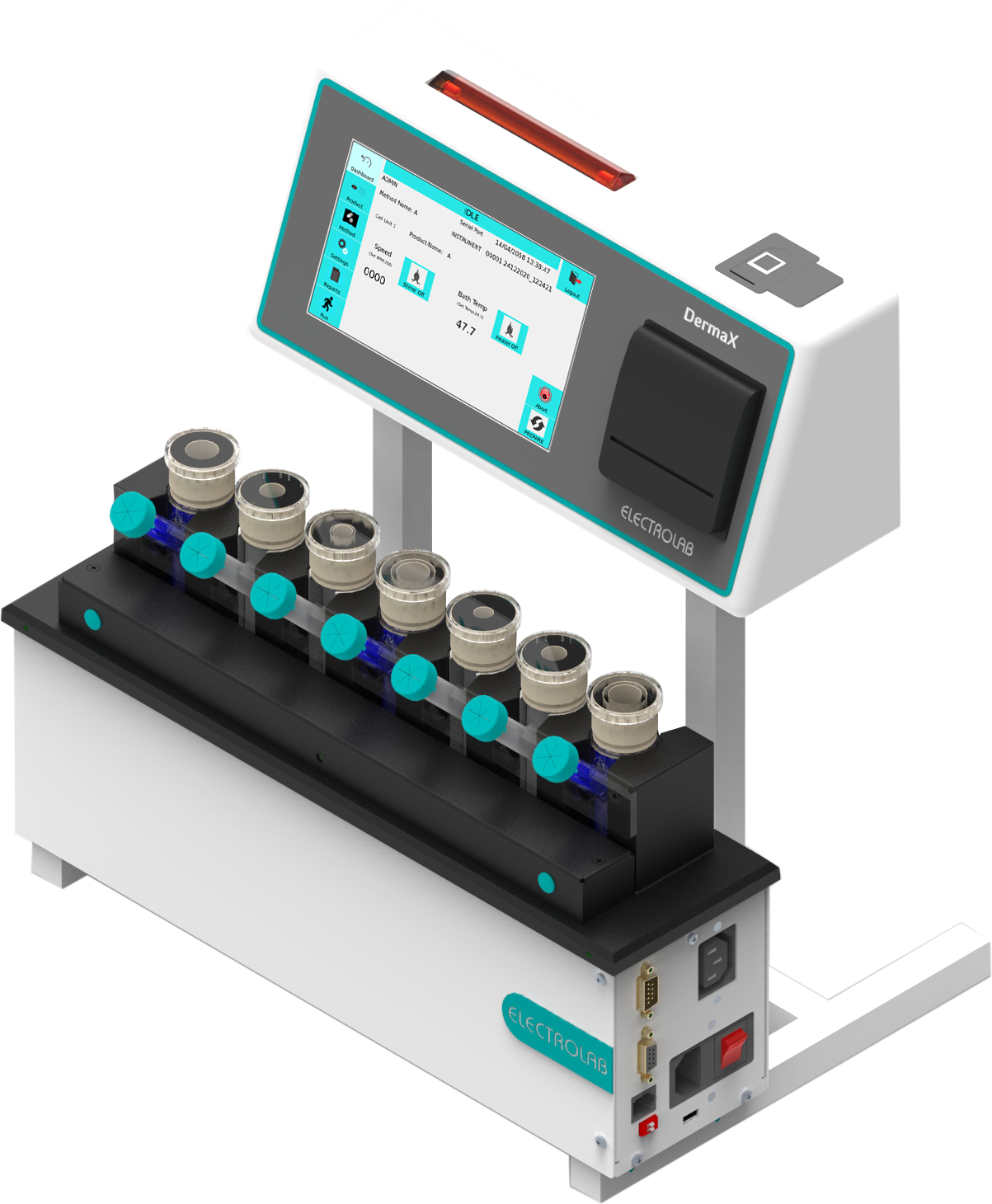

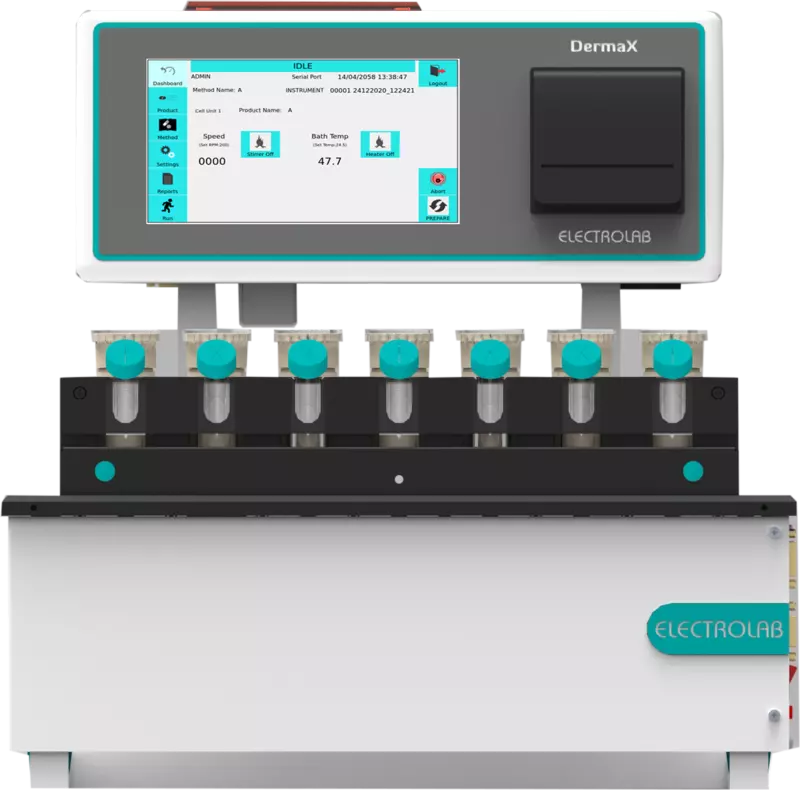

Diffusion Cell DermaX-07 Basic
| Biometric login |
| Interacve touch screen |
| Cells available in variable size |
| Electronic Logbook and Audit Trail |
| Power saving heaters for each cell |
| Infrared based temperature monitoring |
| Variable volumes between each cell and the heang block |
| >60% contact between each cell and the heang block |
| Provided 21 CFR Part 11 Compliance |
| Increased protocol storage space, number of usersand access levels |
Non-returnable
Out of stock
Share:
Product Details
| Model | DermaX-14 |
| Number of stations | 7 |
| Speed range | 200 RPM to 1000 RPM |
| Speed accuracy | ±2 RPM |
| Temperature range | 20°C to 45°C |
| Temperature accuracy | ±1.0°C |
| Display | Multi Touch Capacitive 7" TFT Touch Screen |
| Test Report Storage | 10,000 |
| Heater | 200 W |
| Report Printout | Ethernet, RS-232 |
| No. of Sampling Interval | 18 |
| Dosage Volume | 0.25-6.2 ml |
| Cell Type | Small, Medium and Large (Clear and Amber) |
| Water bath | One piece moulded clear |
| Cell Volume | 8-30 ml |
| Protocol Storage | 1000 |
| Dimensions (L x W x H) | 640 mm x 540 mm x 660 mm |
| Electrical power | 220/230 VAC, 50/60 Hz, 1.3 kW/6 Amp 110 VAC, 50/60 Hz, 1.3 kW/10 Amp |
| Illimination | D'Light |
| Security | Multilevel with password for 250 users with 10 user programable.role |
| Weight | 11 Kg |
