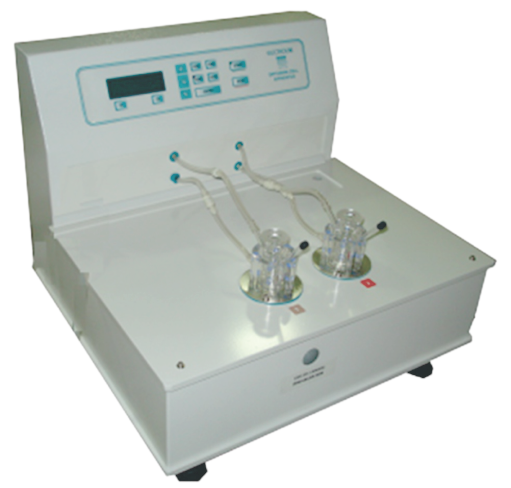

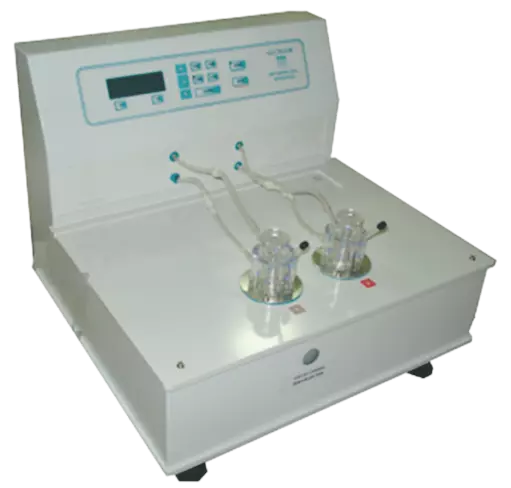

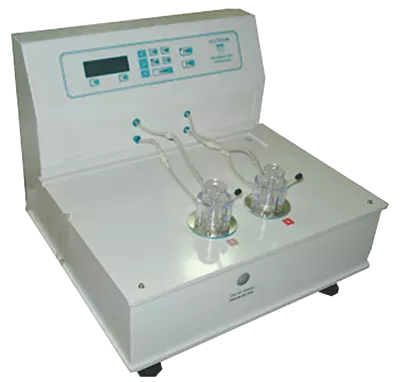

Diffusion Cell Apparatus Model EDC-02
Non-returnable
0.00SAR
Out of stock
| 2 station apparatus |
| Ideal for transdermal and topical products |
| 10 programmable protocols with 12 sample intervals |
| Ergonomically designed to save bench space |
| Vertical diffusion cells available in 5, 7.5,12, 15 ml and 20 ml sizes |
| Specially designed for academic instructions |
| Simultaneous timer function allows the sampling interval time to be cumulative |
| The machine is equipped with two diffusion cells |
| 30-1000 RPM Settable |
| External temperature sensor for validating the media temperature |
Product Details
| Model | EDC-02 |
| Number of Cells | 2 |
| No. of protocol | 10 Maximum |
| Sample interval | 12 |
| No. of motor | 1 |
| Range | 30.0⁰C to 40.0⁰C |
| Control accuracy | ± 0.1°C |
| Resolution | 0.1⁰C |
| Heater sensor | RTD (PT 100) |
| Heater wattage | 100 watts |
| External probe | RTD (PT 100) |
| Type | Magnetic Coupling |
| Flow rate | 15 litres/min |
| No. of Timer | 1 |
| Range | 1 min to 999 hrs 59 min |
| Display | 20 x 4 LCD |
| Supply | 230 VAC, 50 Hz OR 110 VAC, 60 Hz |
| Fuse | 2 Amp/250 V (For Input 230 V AC,50Hz) |
| Power Consumption | 1 K VA |
| Dimensions (L x W x H) | 450mm x 425mm x 365mm |
