2mag

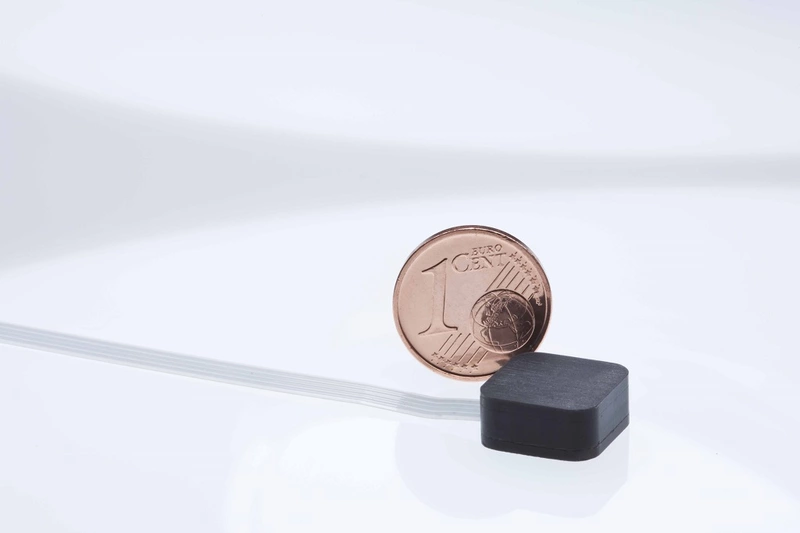

(cuvetteMIXdrive 1 ) Magnetic Stirrers (with external control unit)
Miniaturized, wear-free 2mag magnetic stirrer with 1 stirring position for cuvettes, optimized for stirring volume up to 25 ml, ideal size for system integration e.g. in photometer.
1 stirring position, 100% maintenance-free and wear-free by inductive 2mag-Magnetic-Drive concept for reliable mixing of solutions, jerk-free stirring even at low speeds. Fully encapsulated and hermetically sealed polyurethane housing, IP68, water-, dust- and germproof.
Extremely robust construction and performance, easy to clean and maximum resistance, submersible in water- resp. oil baths, suitable for the use in CO2-incubators and ovens.
Maintenance- and wear-free magnetic stirrer Submersible, up to +50°C Footprint 12.5 x 12.5 mm Stirring speed from 120 up to 1,200 rpm (depending on the control unit) Ideal for integration Outstanding long-life quality Developed and made in Germany
Non-returnable
Out of stock
Share:
Product Details
| Type | cuvetteMIXdrive 1 |
| Stirring points | 1 |
| Stirring volume/stirring point | 1 – 25 ml |
| Stirring power (max.) | 10 W |
| Housing material | PUR |
| Permitted operation conditions | -10 °C up to +50 °C in air, up to +50 °C in water submerged |
| Operating voltage (max.) | 48 VDC |
| Dimensions (WxDxH) | 12.5 x 12.5 x 6 mm |
| Protection class | IP68 |
| Shipping weight (gross) | approx. 0.14 kg |
| Order no. Basic-version | 40400 |
| Order no. HT-version | not available |
