Cooled Cameras

Name: Cooled Cameras
Brand: Euromex
Availability: OutOfStock

Write a review

Non-returnable

0.00SAR

Out of stock

Euromex cooled color cameras

The Euromex 6 and 20 Megapixel Peltier cooled cameras are equipped with Peltier cooling elements that allow the camera to be used for fluorescence and other low light applications. These advanced and premium models are supplied with a USB-3 interface

All cameras are supplied with ImageFocus Alpha software. The software has specific functions for fluorescence like combining captured fluorescence images. Besides that it allows capturing of images and videos, do measurements annotations, generate reports, live image stitching etc. Compatible with Windows 10 and higher, both 32 and 64 bits configurations

Add to Cart

Product Details

Peltier cooled cameras for universities, laboratories and industry
For fluorescence applications
6 or 20 Mpix color cameras
Large 1 inch camera sensors
USB-3 interfaces
Advanced imaging software

CCD Cooled Cameras

MODELS	Pixels (MP)	Sensor size (inch)	Pixel size (μm)	Resolutions	Max. frames (p/sec)*	USB-3	Dynamic range (db)	S/N Ratio (db)	Sensitivity @ 1/30 sec	Peltier cooling
DC.6000i	6	1	4.54 x 4.54	2748 x 2200 2748 x 1092	7.5 14	•	62.34	41.6	880 mV	•
DC.20000i	20	1	2.4 x 2.4	5440 x 3648 4096 x 2160 2736 x 1824 1824 x 1216	5 10 15 30	•	66.3	41.74	462 mV	•

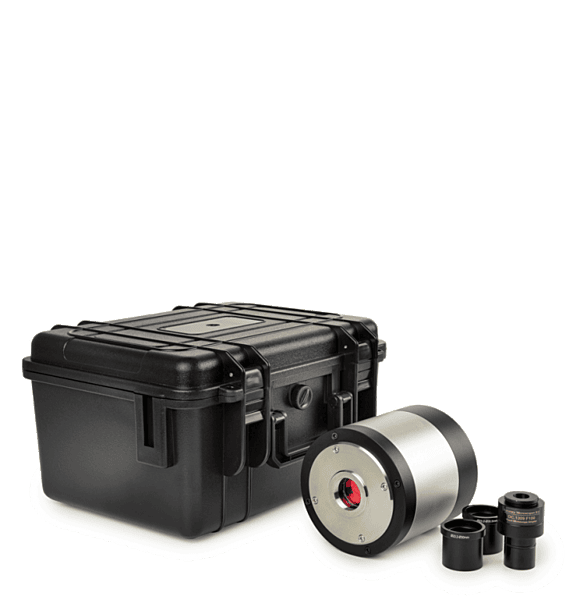

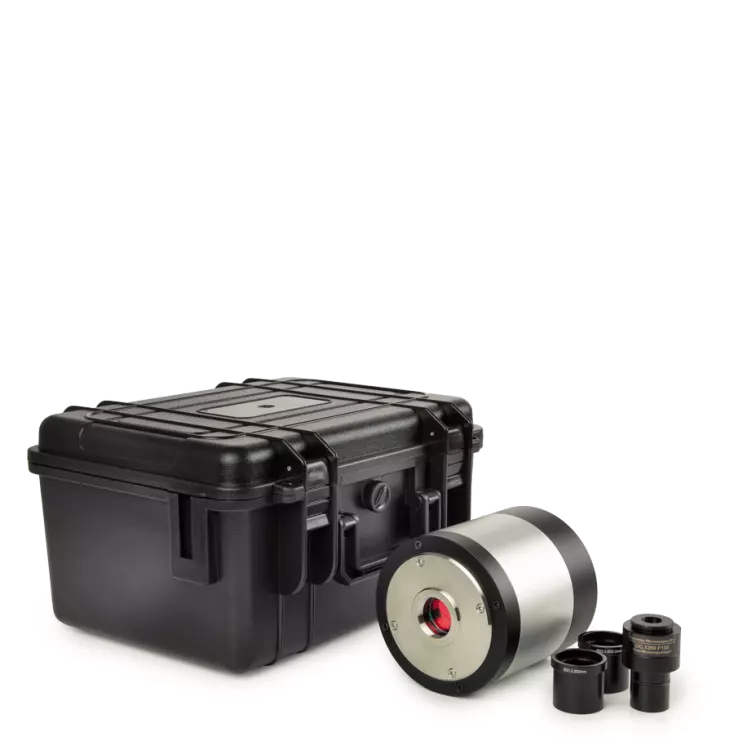

The Euromex cooled cameras are supplied in a carry case together with USB cable, 1x c-mount objective, 30.0 and 30.5 mm to 23.2 mm conversion adapters for use with stereo microscopes, 1mm/100 (10 µm/division) calibration slide and external 100-240 Vac power supply

* Frame rates have been determined at optimal conditions

TECHNICAL SPECIFICATIONS DC.6000i

Sensor
1 inch Peltier cooled CCD sensor

Pixels
2748 x 2200 pixels, 6 Mpix

Scan mode
Progressive, rolling shutter

Pixel size
4.54 μm x 4.54 μm

Filter
RGB

Mount
C-mount

Max fps
Up to 7.5 frames per second (2748 x 2200 pixels)
Up to 14 frames per second (2748 x 1092 pixels)
(Frame rates have been determined at optimal conditions)

Exposure
Automatic or manual, exposure time 0.06 ms ~ 3600 s

White balance
Automatic/manual

Sensitivity
880 mV @ 1/30 s

Data interface
USB 3.0 high speed (USB-2 compatible)

Peltier cooling system
Two-stage active-cooling system -45 °C below camera body temperature

Operation
-10~50°C, 30-80 % humidity

Storage temperature
-20~60°C

Power supply
5V over PC USB port
External power adapter for cooling system, DC 12 V, 3 A

Supplied with
USB-3 cable, 1x C-mount objective, 30.0 and 30.5 mm to 23.2 mm conversion adapters for use with stereo microscopes, 1 mm/100 (10 µm/division) calibration slide, ImageFocus Alpha software, external 100-240 Vac power supply and carrying case

___________

TECHNICAL SPECIFICATIONS DC.20000i

Sensor
1 inch Peltier cooled CMOS sensor

Pixels
5440 x 3648 pixels, 20 Mpix

Scan mode
Progressive, rolling shutter

Pixel size
2.4 μm x 2.4 μm

Filter
RGB

Mount
C-mount

Max fps
Up to 5 frames per second (5440 x 3648 pixels)
Up to 10 frames per second (4096 x 2160 pixels)
Up to 15 frames per second (2736 x 1824 pixels)
Up to 30 frames per second (1824 x 1216 pixels)
(Frame rates have been determined at optimal conditions)

Exposure
Automatic or manual, exposure time 0.1 ms ~ 3600 s
