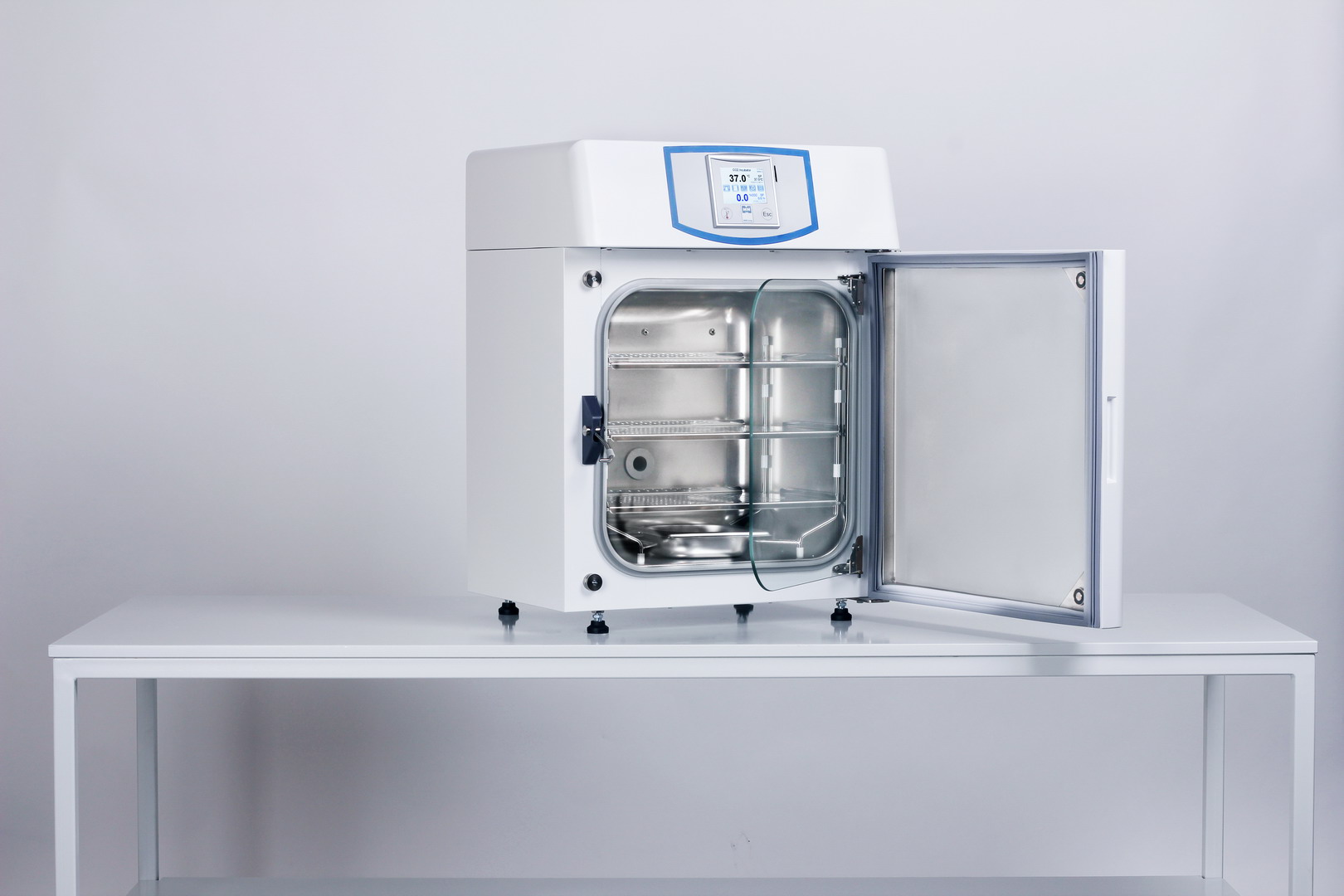

• laboratory incubator - always creates the right atmosphere
• chamber volume 50 litres
• temperature range: from 5°C above ambient temperature to 60°C
• uncontrolled relative humidity: up to 90 ± 5% RH at 37°C
• CO2 concentration: 0.2% to 20%
• CO2 sensor: no-deviation infrared sensor (IR)
• wide selection of optional equipment and accessories
• output for connecting a printer or PC
• possibility of validation (IQ, OQ)

Inner dimensions

volume	50 l
depth	300 mm
width	402 mm
height	402 mm

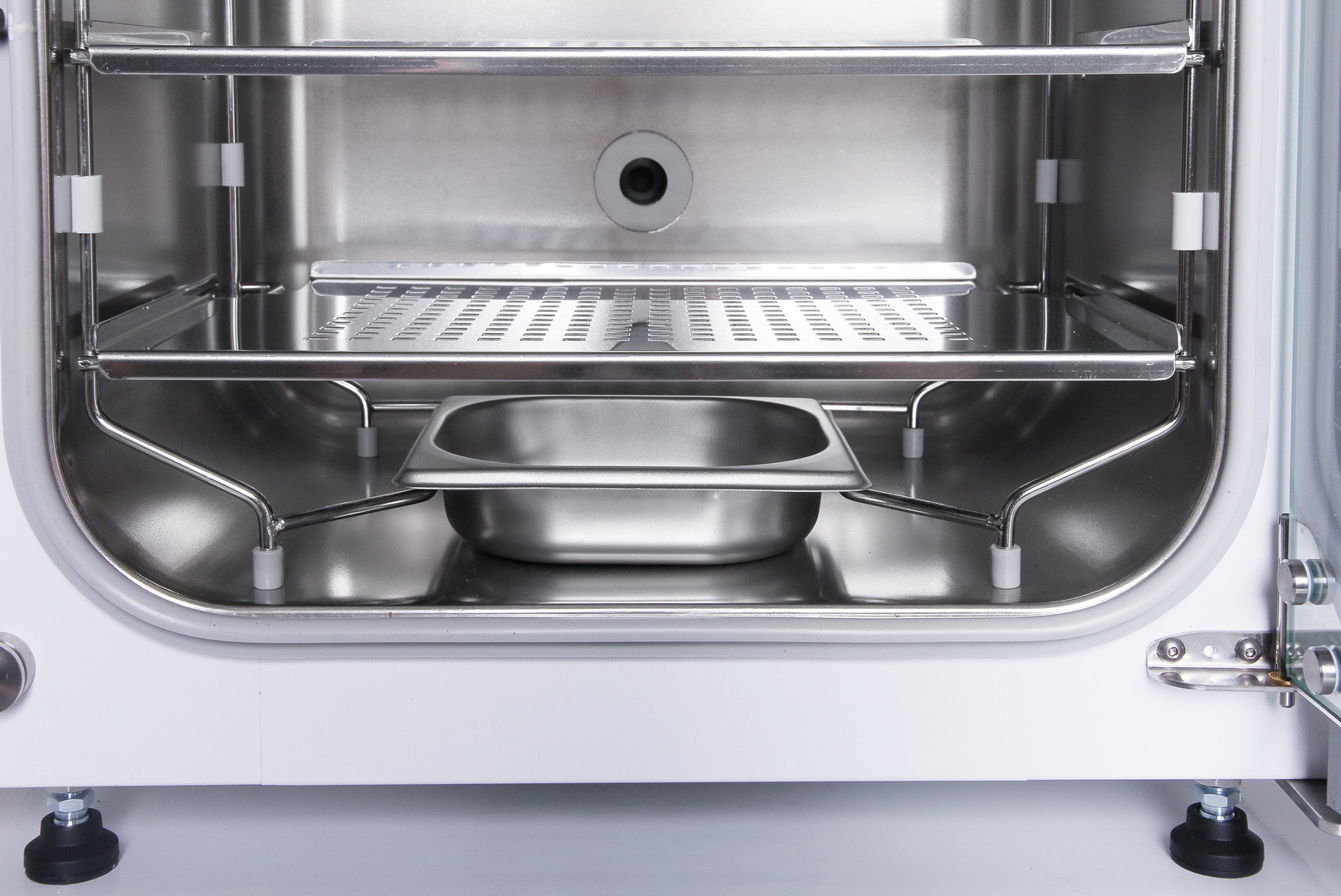

Shelves (trays)*

standard equipment	3 pcs
Number	3 max. pcs

External dimensios

depth	460 mm
width	534 mm
height	717 mm

Weight

brut	52 kg
nett	40 kg

Temperature data

60 °C

Temperature deviations at 37 °C max.

in time	± 0,1 °C
in time	± 0,1 °C
in space	± 0,25 °C

CO2 Control

0,2 - 20 % CO2

Control accurancy

in space	± 0,25 %
measurement	± 0,1 %
measurement	± 0,1 %

Recovery rate

<=0,8 % / min

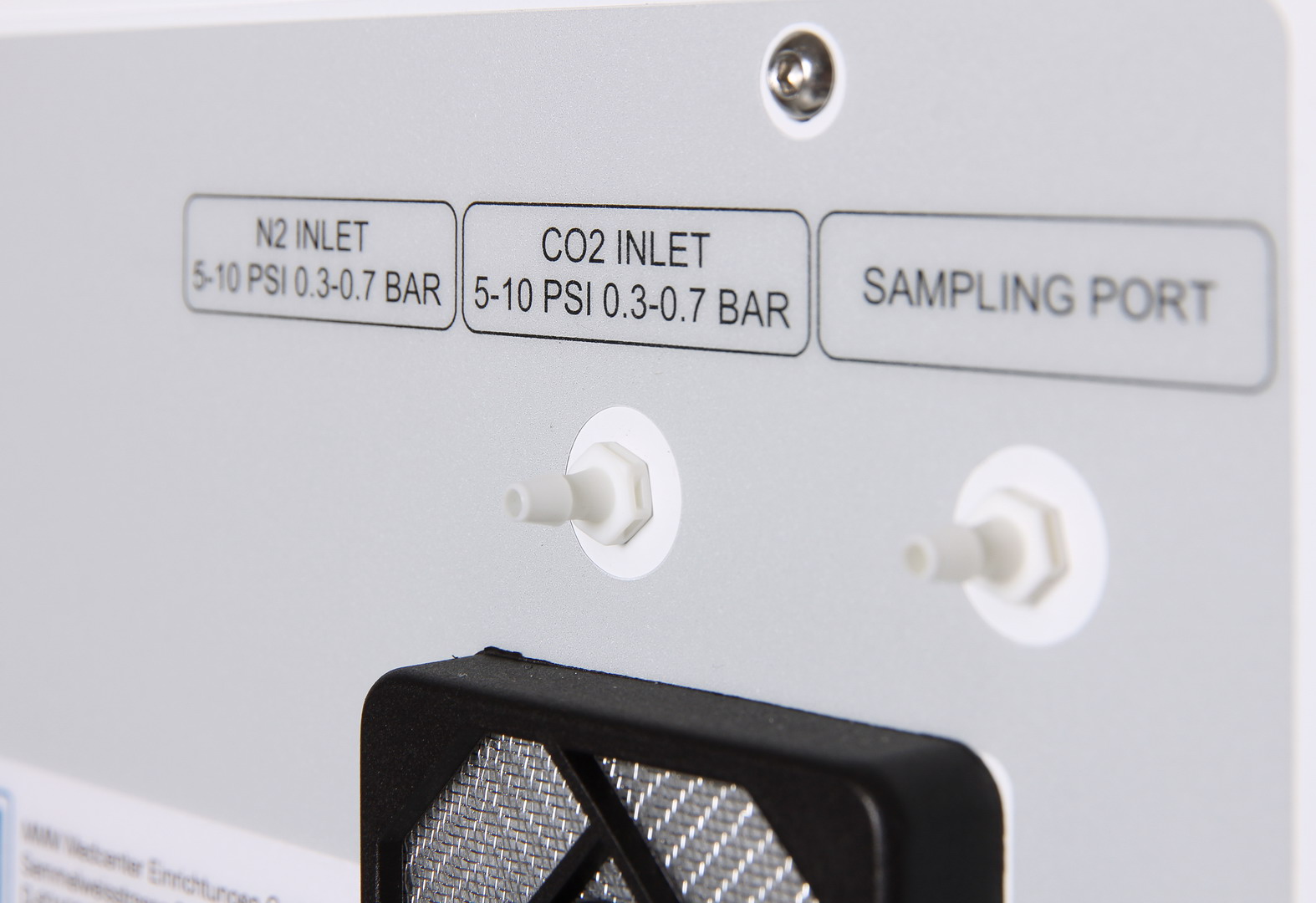

Required CO2pressure

5-10 bar / psi

Relative humidity

humidity dish volume

0,5 l

Humidity level at 37 °C, 5 °C CO2

standard

95 % RH

Electric parameters

max. output	0,95 kW
Voltage (50/60 Hz)	230 V
consumption at 37 °C	7,2 W

Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.

Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
