CMEX
The different USB-2 cameras with ImageFocus capture and analysis software are the perfect solution for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Materials Science microscopes as well as stereo microscopes
CMEX-f USB-2 cameras with fast CMOS sensor
The CMEX-2f, CMEX-5f and CMEX-12f are equipped with an extra fast CMOS sensor with 8 bits grayscale conversion and a 24 bits color rendering. The CMEX-f cameras are equipped with USB-2 data interface and supplied with ImageFocus Plus software
Besides capturing of images and videos, the ImageFocus Plus software allows measurements on still and live images and annotations on captured images, stitching and stacking of images and more. Compatible with Windows 10 and higher both 32 and 64 bits configurations. A Mac version is available
- Entry level cameras
- For amateur, education and laboratories
- CMOS color USB 2.0 camera
- 2.0 - 12.0 Mpix CMOS color USB 2.0 cameras
- 1920 x 1060 - 4000 x 3000 pixels
- Color depth 24 bits
- Low signal/noise ratio
- USB 2.0 interface
CMEX

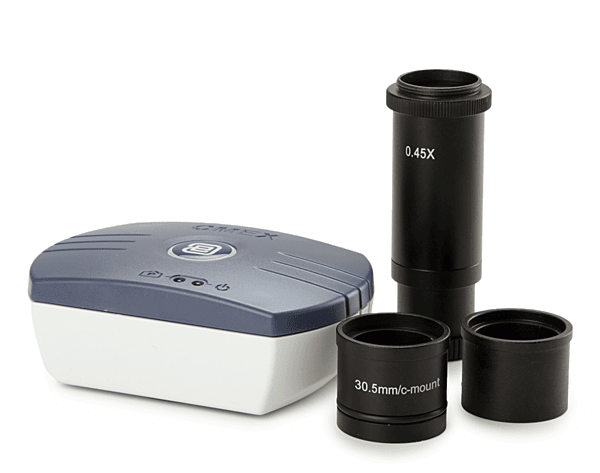

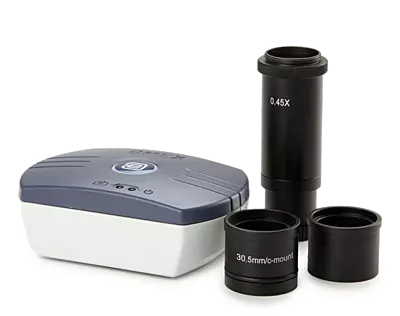

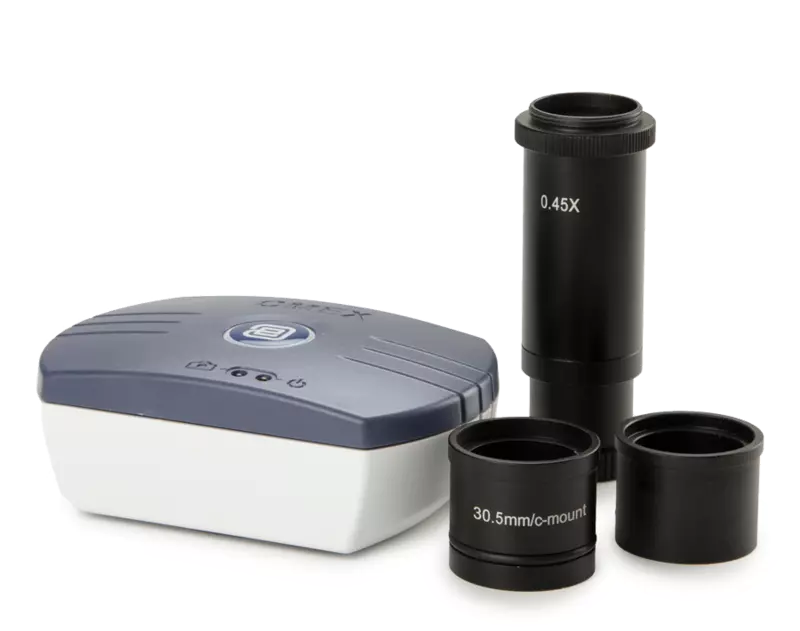

The CMEX cameras are supplied in a carton box with USB-2.0 cable, 30.0 and 30.5 mm to 23.2 mm conversion adapters for use with stereo microscopes, a 1mm/100 (10μm/division) calibration slide, a 0.45x C -mount objective and software
* Frame rates have been determined at optimal conditions
TECHNICAL SPECIFICATIONS CMEX-2f (DC.2000f)
Sensor
CMOS 1/2.9 inch
Pixels
1920 x 1060 pixels, 2.0 Mpix
Scanmode
Progressive, rolling shutter
Pixel size
2.8 μm x 2.8 μm
Filter
RGB
Mount
C-mount
Max fps
Up to 30 frames per second (1920x 1080 pixels)
(Frame rates have been determined at optimal conditions)
ADC
12 bits
Colordepth
24 bits
Sensitivity
0.51 V/lux-sec @ 550 nm
Exposure
Automatic or manual, from 1 ms to 2 s
White balance
Automatic/manual
Dynamic range
72 db
Data interface
USB 2.0 at 480 Mb/s
Operation
0 – 60° C, 10-85 % humidity
Suppliedwith
0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, USB stick with ImageFocus Plus software, carton box
Software
Windows 10 and higher (32 and 64 bit configurations) and Mac OS
Product number
DC.2000f
_____________________________________________________________________________
TECHNICAL SPECIFICATIONS CMEX-5f (DC.5000f)
Sensor
CMOS 1/2.8 inch
Pixels
1920 x 2560 pixels, 5.0 Mpix
Scan mode
Progressive, rolling shutter
Pixel size
2.0 μm x 2.0 μm
Filter
RGB
Mount
C-mount
Max fps
Up to 30 frames per second (2560 x 1920 pixels)
Up to 50 frames per second (1600 x 1200 pixels)
(Frame rates have been determined at optimal conditions)
Grayscaleconversion
8 bits
Color depth
24 bits
Sensitivity
2.0 V/lux-sec @ 550 nm
Exposure
Automatic or manual, from 1 ms to 2 s
White balance
Automatic/manual
Dynamic range
72 db
Data interface
USB 2.0 at 480 Mb/s
Operation
0 – 60° C, 10-85 % humidity
Supplied with
0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, USB stick with ImageFocus Plus software, carton box
Software
Windows 10 and higher (32 and 64 bit configurations) and Mac OS
Product number
DC.5000f
_____________________________________________________________________________
TECHNICAL SPECIFICATIONS CMEX-12 (DC.12000f)
Sensor
CMOS 1/2.3 inch
Pixels
3000 x 4000 pixels, 12.0 Mpix
Scan mode
Progressive, rolling shutter
Pixel size
1.33 μm x 1.33 μm
Filter
RGB
Mount
C-mount
Max fps
Up to 15 frames per second (4000 x 3000 pixels)
Up to 30 frames per second (2590 x 1944 pixels)
(Frame rates have been determined at optimal conditions)
Grayscaleconversion
8 bits
Color depth
24 bits
Sensitivity
1.5 V/lux-sec @ 550 nm
Exposure
Automatic or manual, from 1 ms to 2 s
White balance
Automatic/manual
Dynamic range
59.5 db
Data interface
USB 2.0 at 480 Mb/s
Operation
0 – 60° C, 10-85 % humidity
Supplied with
0.45x objective with C-mount, USB 2.0 cable, 30 and 30.5 mm adapters for stereo microscopes, 76 x 24 mm calibration slide, USB stick with ImageFocus Plus software, carton box
Software
Windows 10 and higher (32 and 64 bit configurations) and Mac OS
Product number
DC.12000f
