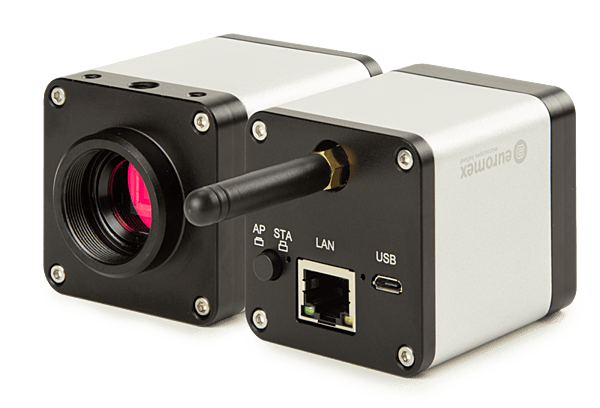

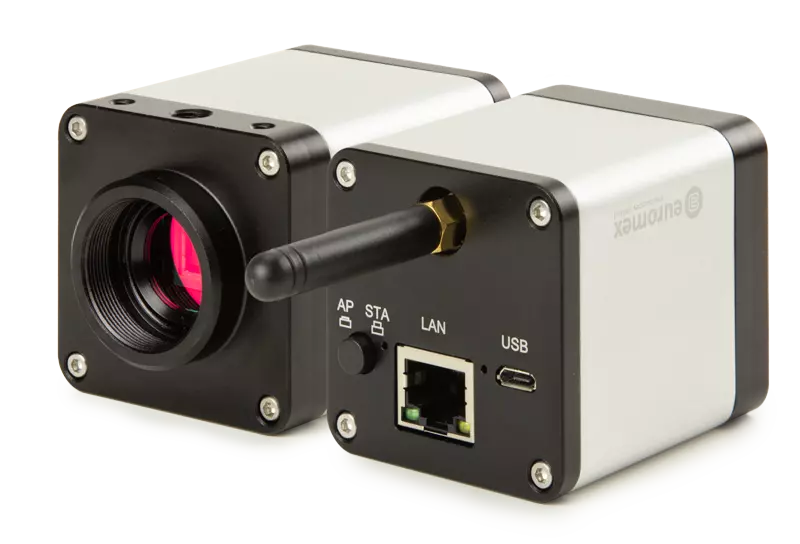

CMEX-5 WiFi-4
The CMEX-5 WiFi-4 camera is equipped with a 4 MP Sony CMOS sensor with 12 bits grayscale conversion and a 24 bits color rendering. The CMEX camera streams H.264 encoded high resolution images simultaneously to several WiFi enabled smartphones, tablets or computers with iOS, Android and Windows operating systems
CMEX-5 WiFi-4 4.0 MP digital WiFi + USB + LAN camera with 1/1.8 inch Sony CMOS sensor
Adding a WiFi camera to your microscope is ideal for wireless sharing/viewing microscope images. Ideal for demonstrations or places were remote viewing is needed
Apps for Android for this camera are supplied on cd or can be downloaded from this page under Downloads (free of charge) of from the Apple Store (free of charge). ImageFocus Alpha software can be used for Windows based devices and WiFi connected PC and is supplied on CD. The camera is powered by the included USB charger or a computers USB port. Standard C-mount mounting with 0.5x C-mount objective included
- Color CMOS WiFi+USB+LAN camera
- Real time images 2688 x 1512 pixels
- 1/1.8 inch, 4.0 MP CMOS sensor
- Low signal/noise ratio
- Power supply via USB port or USB charger
- Sends H.264 encoded images to WiFi enabled smartphones, computers, and tablets with iOS and Android
CMEX-5 WiFi-4
The CMEX-5 WiFi-4 camera is supplied in a carton box with USB cable, 30.0 and 30.5 mm adapters to use with stereo microscopes, 100-240 Vac USB power supply and a 0.5x C-mount objective
TECHNICAL SPECIFICATIONS CMEX-5 WiFi-4 (DC.5000-WiFi-4)
Sensor
CMOS 1/1.8 inch
Pixels
2688 x 1512 pixels, 4.0 Mpix
Scanmode
Electronic rolling shutter
Pixelsize
2.9 μm x 2.9 μm
Filter
RGB color filter and IR-cut off filter (380-650 nm)
Mount
C-mount
Max fps
Up to 30 frames per second*
ADC
12 bits
Sensitivity
921mV with 1/30 sec
Exposure
Automatic or manual, from 0.021- 1000 ms
White balance
Automatic/manual
Dynamic range
48 db
S/N max
44 db
DatainterfaceLAN
30fps*@2688*1512 H264 encoded video and Jpeg image capture
DatainterfaceUSB
MJPEG/H264 real-time images, 30fps*@2688*1512
*Frame rates were determined at optimal conditions
Operation
-10 – 50° C, 30-80 % humidity
Storage temperature
-20 to 60° Celsius
Powersupply
Micro USB DC 5V/1A adapter
Suppliedwith
0.5x objective with C-mount (DC.1355), 30 and 30, 5 mm to 23.2 mm adapters for stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), USB charger and USB-2 cable, CDROM with ImageFocus Alpha software, Android .apk app. A Mac OS version is also supplied (with a few differences in features). A carton box
Compatibility
Windows 10 and higher (32 and 64 bit configurations), Android Pad and Phones, Mac PC, iPad or iPhone
Requirements
PC with Intel Core2 2.8 GHz or higher or equivalent. Minimum 4Gb RAM memory PC with WiFi enabled. Android 5.1 and above is supported, Android 10.0 and above is recommended
Productnumber
DC.5000-WiFi-4
