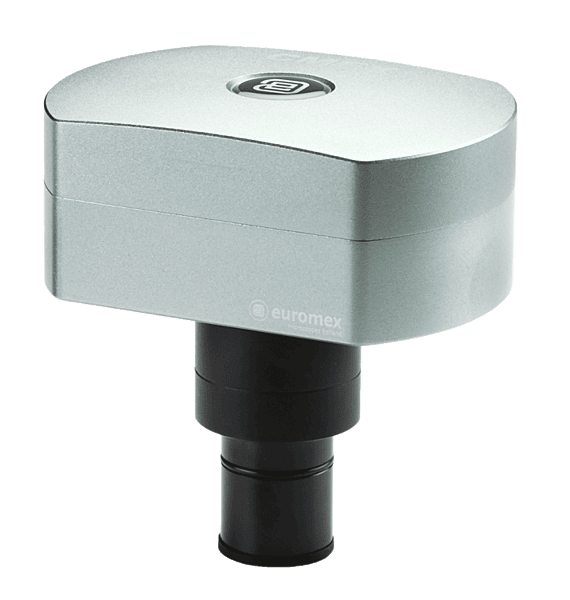

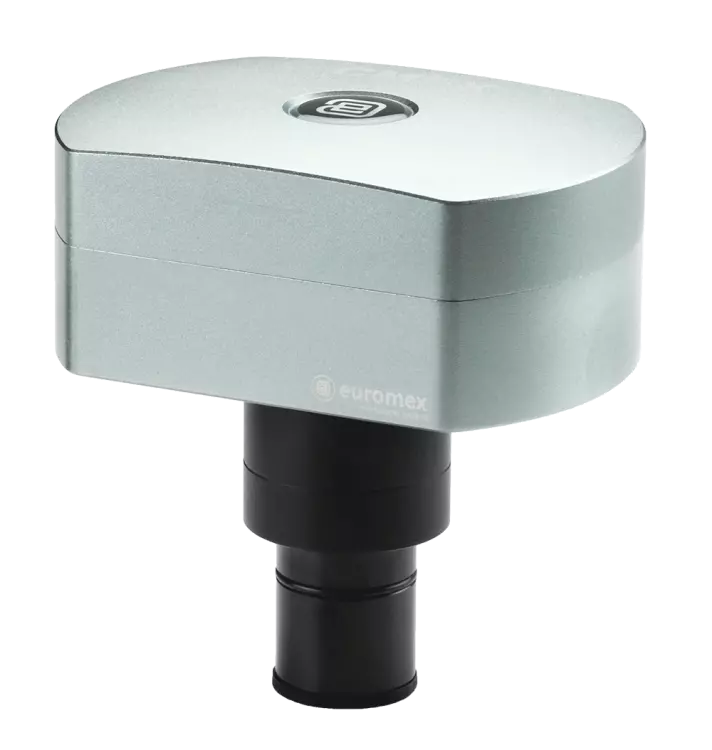

CMEX-5/10/20 Pro
The high speed USB-3 cameras with ImageFocus Alpha capture and analysis software are the perfect solutions for today’s educational, laboratory and industrial microscopy needs. The cameras are suitable for Life Science and Material Science microscopes as well as stereo microscopes
CMEX-5 Pro, CMEX-10 Pro and CMEX-20 Pro USB 3.0 high speed camera
The CMEX-5 Pro, CMEX-10 Pro and CMEX-20 Pro cameras are equipped with relatively 5.1, 10 or 20 MP CMOS sensors with 12 bits grayscale conversion and a 24 bits color rendering. This cameras are equipped with a USB- 3 data interface enabling fast frame rates
Besides capturing of images and videos, the ImageFocus Alpha software allows measurements on still and live images and to perform annotations on captured images. Compatible with Windows 10 and higher, both 32 and 64 bits configurations. A 2 GB RAM 2.8 GHz computer and 17 inch display is recommended as minimum requirement. A Mac OS version is available
- High speed cameras
- 5.1 to 20 Mpix CMOS sensors
- ADC 12 bits, color depth 24 bits
- Great color reproduction
- Excellent software
- High signal/noise ratio
- USB 3.0 interface (USB 2.0 compatible)
MODELS
The CMEX-Pro cameras are supplied with USB-3 cable, 30.0 and 30.5 mm adapters to use with stereo microscopes, 1mm/100 (10μm/division) calibration slide. The CMEX-5 Pro and -10 Pro are supplied with a 0.5x C-mount objective, the CMEX-20 Pro is supplied with a 0.75 C-mount objective
TECHNICAL SPECIFICATIONS CMEX-5 PRO (DC.5000-Pro)
Sensor:
CMOS 1/2.5 inch
Pixels:
2560 x 1922 pixels, 5.1 MP
Scan mode:
progressive, rolling shutter
Pixel size:
2.2 μm x 2.2 μm
Filter:
RGB
Mount:
C-mount 0.5x
Max fps:
Up to 16 frames per second (2592x1944 pixels)
Up to 50 frames per second (1296x972 pixels)
Up to 98 frames per second (640x486 pixels)
(Frame rates have been determined at optimal conditions)
Exposure:
automatic or manual
White Balance:
automatic or manual
Dynamic range:
68 dB
S/N max:
39 dB
Sensitivity V/lux-sec:
1.76
Data interface:
USB3.0 high speed
Operation:
-10~50°C, 30-80 % humidity
Storage temperature:
-20~60°Celsius
Power supply:
5V over PC USB Port
Housing:
integrated CNC aluminum alloy
Supplied with
0.5x objective with C-mount, USB 3 cable, 30 and 30.5mm adapters for stereomicroscopes, 76x24mm calibration slide (1mm/100), carton box
Software
ImageFocus Alpha capture and measuring software for Win 10 and higher (32 and 64 bit configurations).
A Mac OS version is available
PC requirements
Compatible with Intel Core 2, 2.8 GHZ or higher, 2GB, USB-3 high speed
Product number:
DC.5000-Pro
___________________________________________________________________________________
TECHNICAL SPECIFICATIONS CMEX-10 PRO (DC.10000-Pro)
Sensor:
CMOS 1/2.3 inch
Pixels:
3584 x 2746 pixels, 10.0 MP
Scan mode:
Progressive, rolling shutter
Pixel size:
1.67 μm x 1.67 μm
Filter:
RGB
Mount:
C-mount 0.5x
Max fps:
Up to 8 frames per second (3584 x 2746 pixels)
Up to 25 frames per second (1792 x 1372 pixels)
(Frame rates have been determined at optimal conditions)
Exposure:
automatic or manual
White balance:
automatic/manual
Dynamic range:
63.5 db
S/N max:
35.5 db
Sensitivity V/lux-sec:
0.31
Data interface:
USB 3.0 high speed 80 Mb/s
Operation:
0 – 50°C, 30-80 % humidity
Storage temperature:
-20 to 60° Celsius
Power supply:
5V over PC USB port
Housing:
integrated CNC aluminum alloy
Supplied with
0.5x objective with C-mount, USB 3 cable, 30 and 30.5 mm adapters for stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), carton box
Software
ImageFocus Alpha capture and measuring software for Win 10 and higher (32 and 64 bit configurations).
A Mac OS version is available
PC requirements
Compatible with Intel Core 2, 2.8 GHZ or higher, 2GB, USB-3 high speed
Product number:
DC.10000-Pro
___________________________________________________________________________________
TECHNICAL SPECIFICATIONS CMEX-20 PRO (DC.20000-Pro)
Sensor:
CMOS 1/1.8inch
Pixels: 5120 x 3840 pixels, 20.0 MP
Scan mode:
progressive, rolling shutter
Pixel size:
1.4 μm x 1.4 μm
Filter:
RGB
Mount:
C-mount 0.75x
Max fps:
Up to 20 frames per second (5120 x 3840 pixels)
Up to 45 frames per second (2560 x 1920 pixels)
(Frame rates have been determined at optimal conditions)
Exposure:
automatic or manual
White balance:
automatic/manual
Dynamic range:
39 db
S/N max:
60 db
Sensitivity V/lux-sec:
8.4 ke−/lux.sec
Data interface:
USB 3.0 high speed 80 Mb/s
Operation:
0 – 50°C, 30-80 % humidity
Storage temperature:
-20 to 60°Celsius
Power supply:
5V over PC USB port
Housing:
integrated CNC aluminum alloy
Supplied with:
0.75x objective with C-mount, USB 3 cable, 30 and 30.5 mm adapters for stereomicroscopes, 76 x 24 mm calibration slide (1mm/100), carton box
Software:
ImageFocus Alpha capture and measuring software for Win 10 and higher (32 and 64 bit configurations).
A Mac OS version is available
PC requirements:
Compatible with Intel Core 2, 2.8 GHZ or higher, 2GB, USB-3 high speed
Product number:
DC.20000-Pro
