CLIMACELL 707 - ECO line
0.00SAR
CLIMACELL 707 - ECO line
Product Details
- laboratory incubator – it always creates the right climate
- chamber volume 707 litres
- temperature range: from 0°C to 100°C without humidity, from 10° C to 90° C with humidity
- patented cooling system (environment-friendly working medium R 134a) and air flow in the chamber ensure fast and accurate distribution of the selected temperature and humidity in the chamber and thus the ideal process of sample heating and reduction of moisture condensation in the chamber
- offers high operation comfort, precise temperature control, possibility of achieving extremely short times of temperature changes and short times of temperature and humidity equalization in the chamber after the door opening
- suitable for use in research on germs, plant or tissue cultures, insects, stability tests, etc.
- comfortable design with multi-processor Fuzzy logic control system, controls placed on a foil keyboard, process information displayed on LED display.
- wide selection of optional equipment and accessories
- output for connecting a printer or PC
- possibility of validation (IQ, OQ)

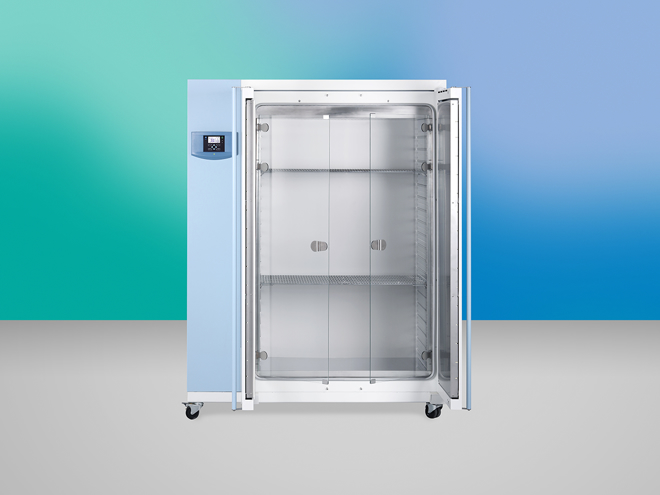

Interior of stainless steel material
volume 707 l depth 520 mm width 940 mm height 1415 mm
| volume | 707 l |
| depth | 520 mm |
| width | 940 mm |
| height | 1415 mm |
Volume of chamber space
876 l (aprox.)
| 876 l (aprox.) |
Trays, stainless steel *)
Min. distance between trays 70 mm number usual 2 pcs number max. 19 pcs Storage area (w × d) 920 × 485 mm
| Min. distance between trays | 70 mm |
| number usual | 2 pcs |
| number max. | 19 pcs |
| Storage area (w × d) | 920 × 485 mm |
Number of outer metal doors
number 2 pcs
| number | 2 pcs |
Number of inner glass doors
number 2 pcs
| number | 2 pcs |
Admissible weight of trays
together inside the oven 130 kg per 1 tray 50 kg
| together inside the oven | 130 kg |
| per 1 tray | 50 kg |
Electricity data
Max. power 3000 W IP 20 mains 50/60Hz 230 V
| Max. power | 3000 W |
| IP 20 | |
| mains 50/60Hz | 230 V |
Temperature data
Cooling/down time from 22 °C to 10 °C < 21 min Heating/up time to 37 °C from the ambient temperature 13 min Working temperature from 0,0 to 100 °C Working temperature from -20 to 100 °C Temperature accuracy - in time 0,4 ± °C Temperature accuracy in time at 10 °C < 1 ±°C Temperature accuracy in time at 37 °C < 1 ±°C
| Cooling/down time from 22 °C to 10 °C | < 21 min |
| Heating/up time to 37 °C from the ambient temperature | 13 min |
| Working temperature from 0,0 to | 100 °C |
| Working temperature from -20 to | 100 °C |
| Temperature accuracy - in time | 0,4 ± °C |
| Temperature accuracy in time at 10 °C | < 1 ±°C |
| Temperature accuracy in time at 37 °C | < 1 ±°C |
Recovery time after 30 sec. door open according DIN 12 880
at 37 °C 6 min at 50 °C 6 min
| at 37 °C | 6 min |
| at 50 °C | 6 min |
Relative humidity
range 10–98 %
| range | 10–98 % |
Heat emission
at 37 °C 148 W
| at 37 °C | 148 W |
Outer dimensions (incl. Door and handle, and Rollers)
depth 860 mm width 1460 mm height 1905 mm
| depth | 860 mm |
| width | 1460 mm |
| height | 1905 mm |
Weight
brut cca 331 kg nett cca 272 kg
*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber.Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.
Changes in the design and make reserved.
The values may differ depending on specific charge and media parameters.
| brut cca | 331 kg |
| nett cca | 272 kg |
*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber.Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.
Changes in the design and make reserved.The values may differ depending on specific charge and media parameters.
