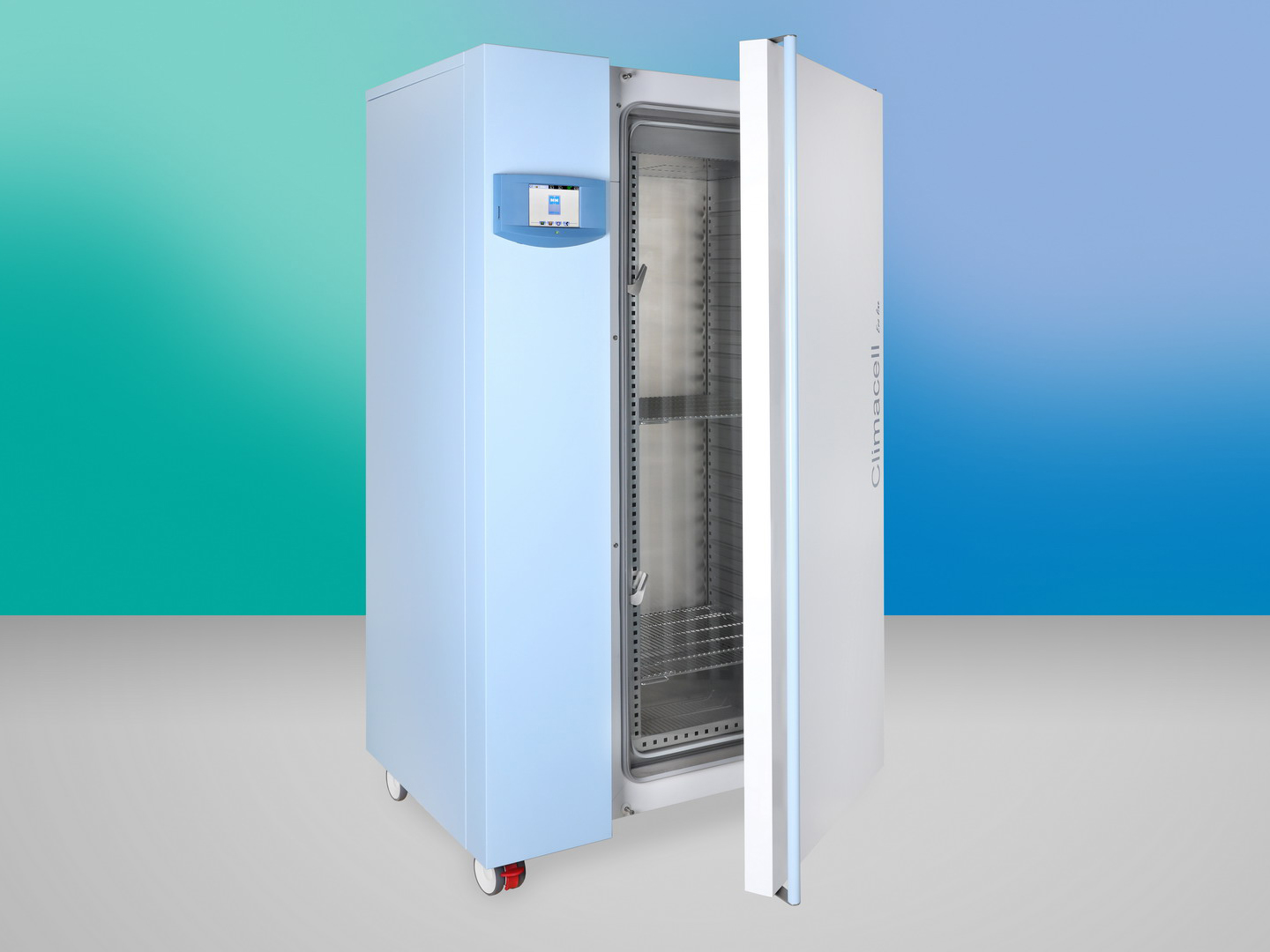

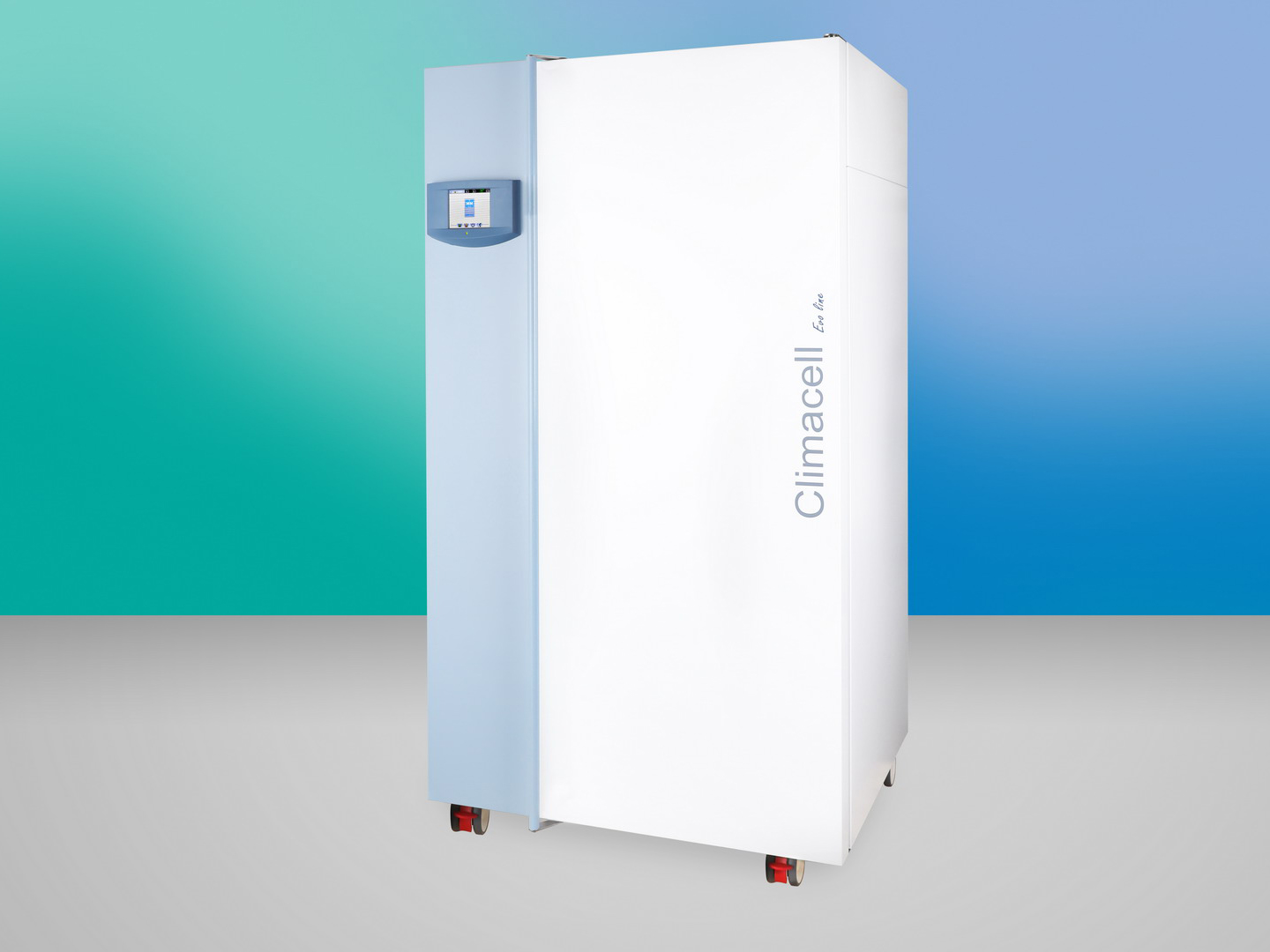

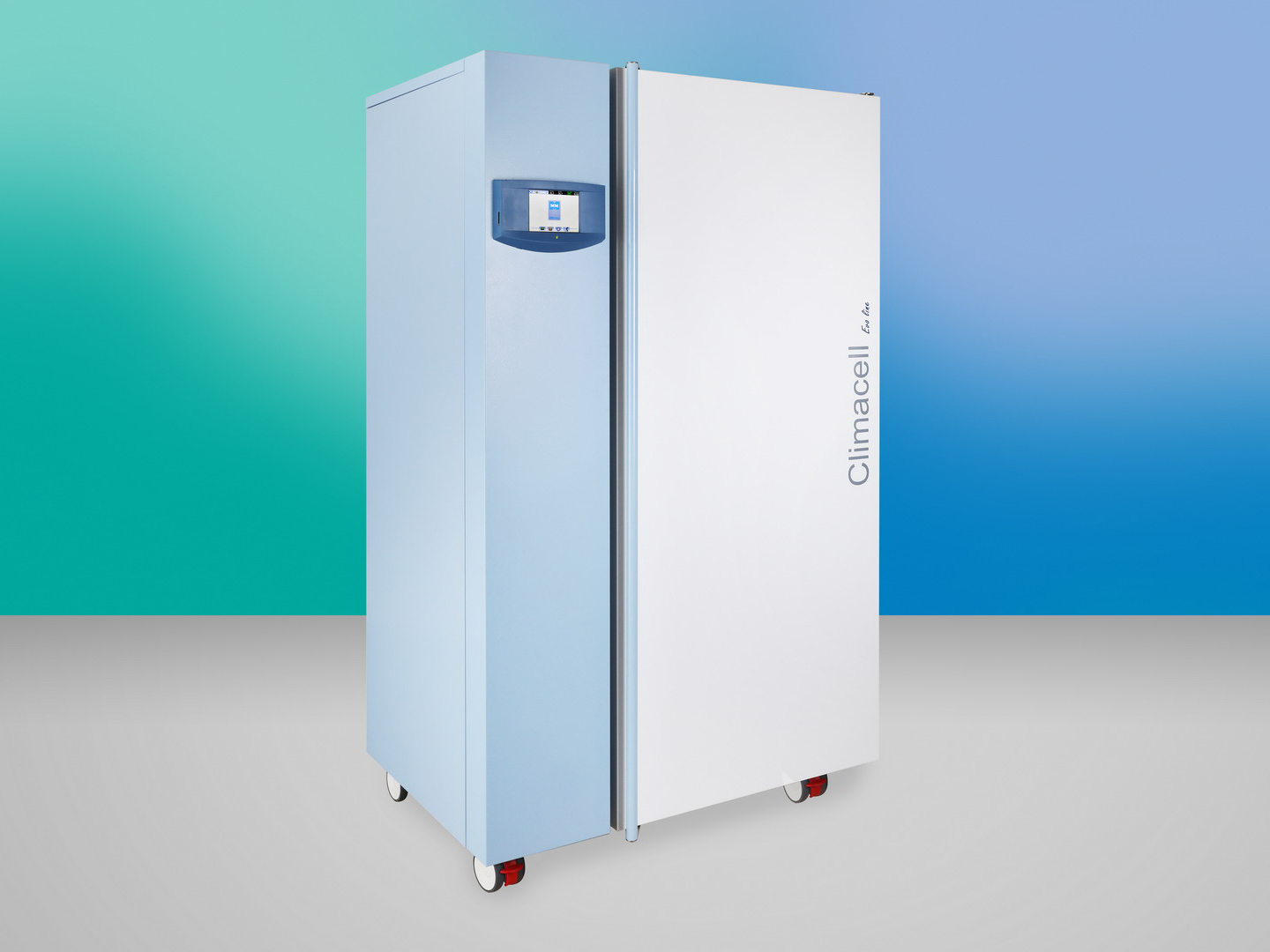

CLIMACELL 404- EVO line
0.00SAR
CLIMACELL 404 - EVO line
Product Details
- laboratory incubator – it always creates the right climate
- chamber volume 404 litres
- temperature range: from 0°C to 100°C without humidity, from 10° C to 90° C with humidity
- patented cooling system (environment-friendly working medium R 134a) and air flow in the chamber ensure fast and accurate distribution of the selected temperature and humidity in the chamber and thus the ideal process of sample heating and reduction of moisture condensation in the chamber
- offers high operation comfort, precise temperature control, possibility of achieving extremely short times of temperature changes and short times of temperature and humidity equalization in the chamber after the door opening
- suitable for use in research on germs, plant or tissue cultures, insects, stability tests, etc.
- comfortable design with multi-processor Fuzzy logic control system, controls placed on a foil keyboard, process information displayed on LED display.
- wide selection of optional equipment and accessories
- output for connecting a printer or PC
- possibility of validation (IQ, OQ)
Interior of stainless steel material
| volume | 404 l |
| depth | 530 mm |
| width | 540 mm |
| height | 1415 mm |
Volume of chamber space
| 530 l (aprox.) |
Trays, stainless steel *)
| Min. distance between trays | 70 mm |
| number usual | 2 pcs |
| number max. | 19 pcs |
| Storage area (w × d) | 520 × 485 mm |
Number of outer metal doors
| number | 1 pcs |
Number of inner glass doors
| number | 1 pcs |
Admissible weight of trays
| together inside the oven | 100 kg |
| per 1 tray | 30 kg |
Electricity data
| Max. power | 2700 W |
| IP 20 | |
| mains 50/60Hz | 230 V |
Temperature data
| Cooling/down time from 22 °C to 10 °C | < 19 min |
| Heating/up time to 37 °C from the ambient temperature | 13 min |
| Working temperature from 0,0 to | 100 °C |
| Working temperature from -20 to | 100 °C |
| Temperature accuracy - in time | 0,3 ± °C |
| Temperature accuracy in time at 10 °C | < 1 ±°C |
| Temperature accuracy in time at 37 °C | < 1 ±°C |
Recovery time after 30 sec. door open according DIN 12 880
| at 37 °C | 3 min |
| at 50 °C | 7 min |
Relative humidity
| range | 10–98 % |
Heat emission
| at 37 °C | 123 W |
Outer dimensions (incl. Door and handle, and Rollers)
| depth | 885 mm |
| width | 1100 mm |
| height | 1890 mm |
Weight
| brut cca | 390 kg |
| nett cca | 240 kg |
*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber.Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.
Changes in the design and make reserved.The values may differ depending on specific charge and media parameters.
