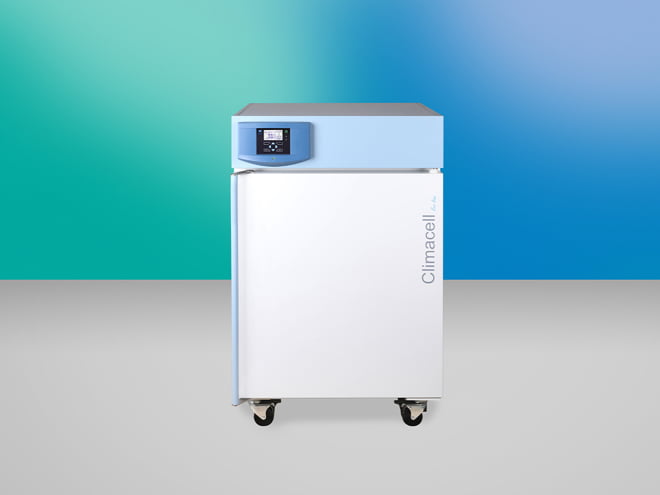

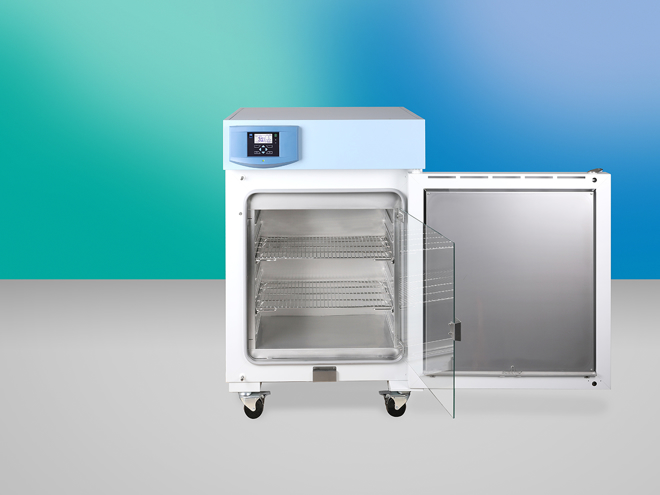

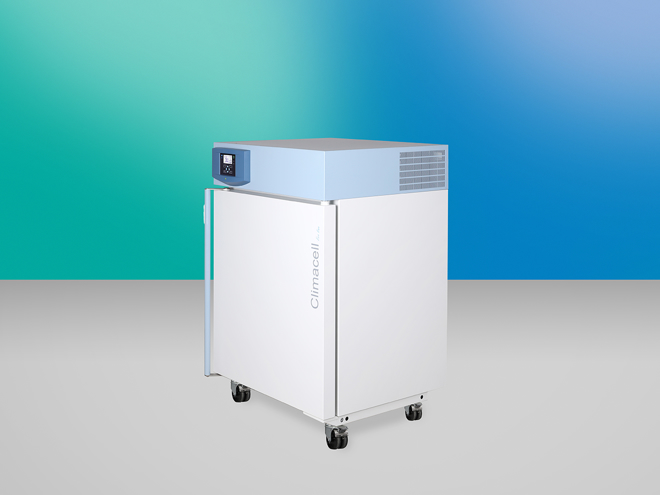

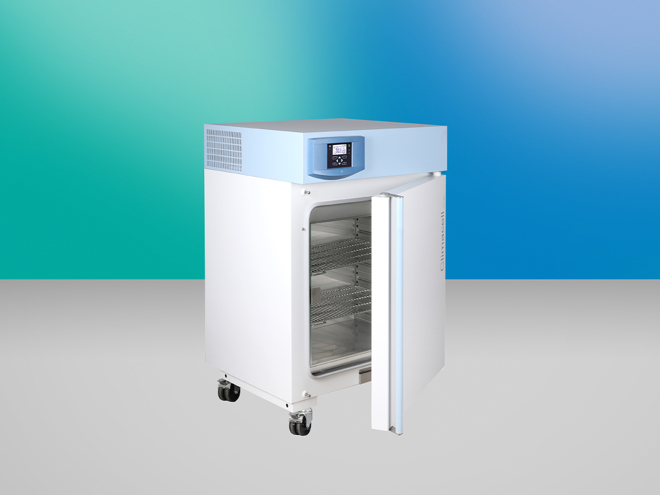

laboratory incubator – it always creates the right climate
chamber volume 111 litres
temperature range: from 0°C to 100°C without humidity, from 10° C to 90° C with humidity
patented cooling system (environment-friendly working medium R 134a) and air flow in the chamber ensure fast and accurate distribution of the selected temperature and humidity in the chamber and thus the ideal process of sample heating and reduction of moisture condensation in the chamber
offers high operation comfort, precise temperature control, possibility of achieving extremely short times of temperature changes and short times of temperature and humidity equalization in the chamber after the door opening
suitable for use in research on germs, plant or tissue cultures, insects, stability tests, etc.
comfortable design with multi-processor Fuzzy logic control system, controls placed on a foil keyboard, process information displayed on LED display.
wide selection of optional equipment and accessories
output for connecting a printer or PC
possibility of validation (IQ, OQ)
Interior of stainless steel material
volume
111 l
depth
370 mm
width
540 mm
height
530 mm
Volume of chamber space
163 l (aprox.)
Trays, stainless steel *)
Min. distance between trays
70 mm
number usual
2 pcs
number max.
7 pcs
Storage area (w × d)
520 × 335 mm
Number of outer metal doors
number
1 pcs
Number of inner glass doors
number
1 pcs
Admissible weight of trays
together inside the oven
50 kg
per 1 tray
20 kg
Electricity data
Max. power
1700 W
IP 20
mains 50/60Hz
230 V
Temperature data
Cooling/down time from 22 °C to 10 °C
< 21 min
Heating/up time to 37 °C from the ambient temperature
11 min
Working temperature from 0,0 to
100 °C
Working temperature from -20 to
100 °C
Temperature accuracy - in time
0,2 ± °C
Temperature accuracy in time at 10 °C
< 0,5 ±°C
Temperature accuracy in time at 37 °C
< 0,5 ±°C
Recovery time after 30 sec. door open according DIN 12 880
at 37 °C
4 min
at 50 °C
5 min
Relative humidity
range
10–98 %
Heat emission
at 37 °C
70 W
Outer dimensions (incl. Door and handle, and Rollers)
depth
750 mm
width
760 mm
height
1140 mm
Weight
brut cca
146 kg
nett cca
104 kg
*) Approx. 50 % of the tray area can be filled in a way a uniform air circulation is enabled inside the chamber.Note: All technical data are related to 22 °C of ambient temperature and ±10 % voltage swing rate ventilator 100 %, defrost off, lighting off.
Changes in the design and make reserved. The values may differ depending on specific charge and media parameters.
