Grant

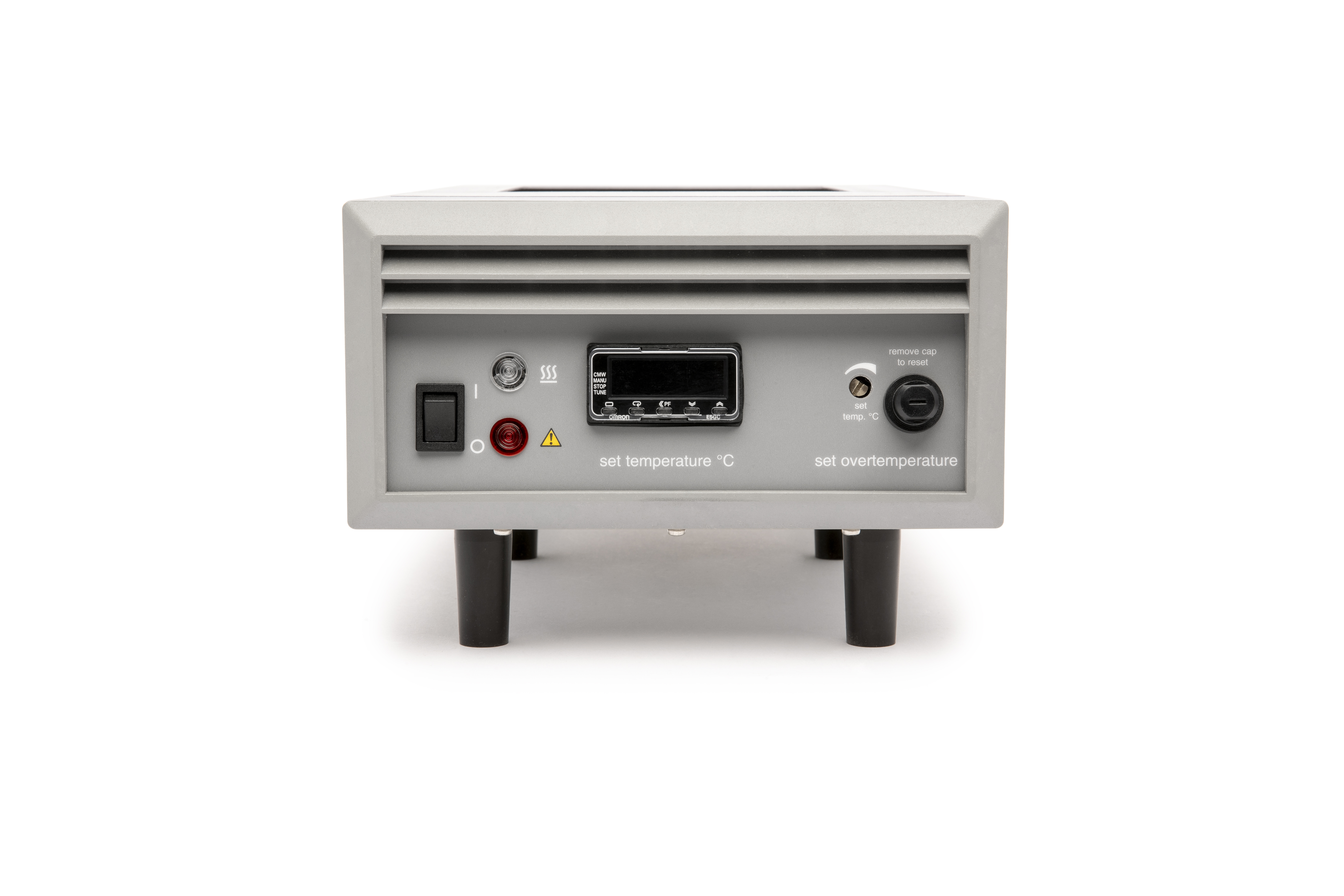

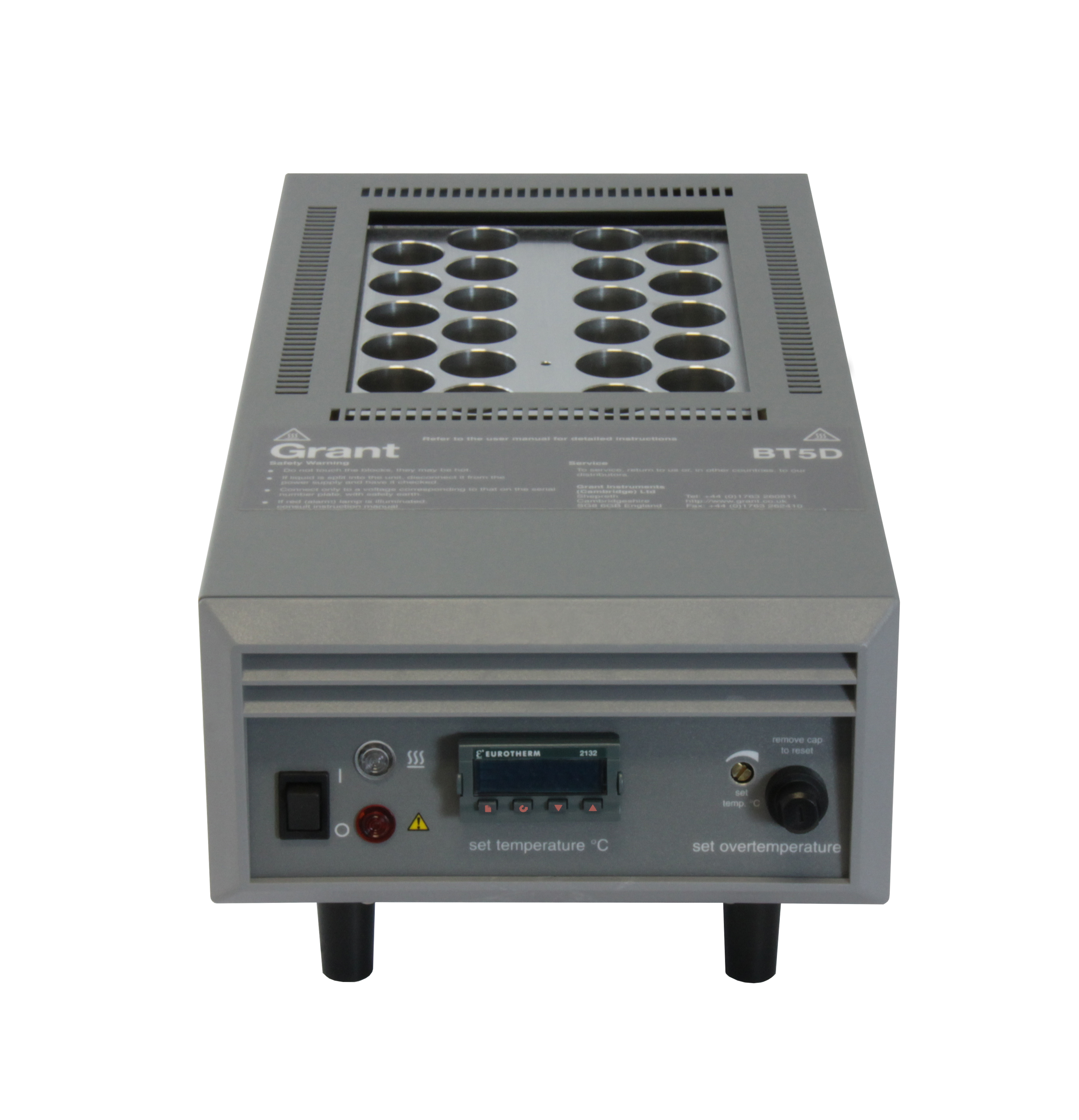

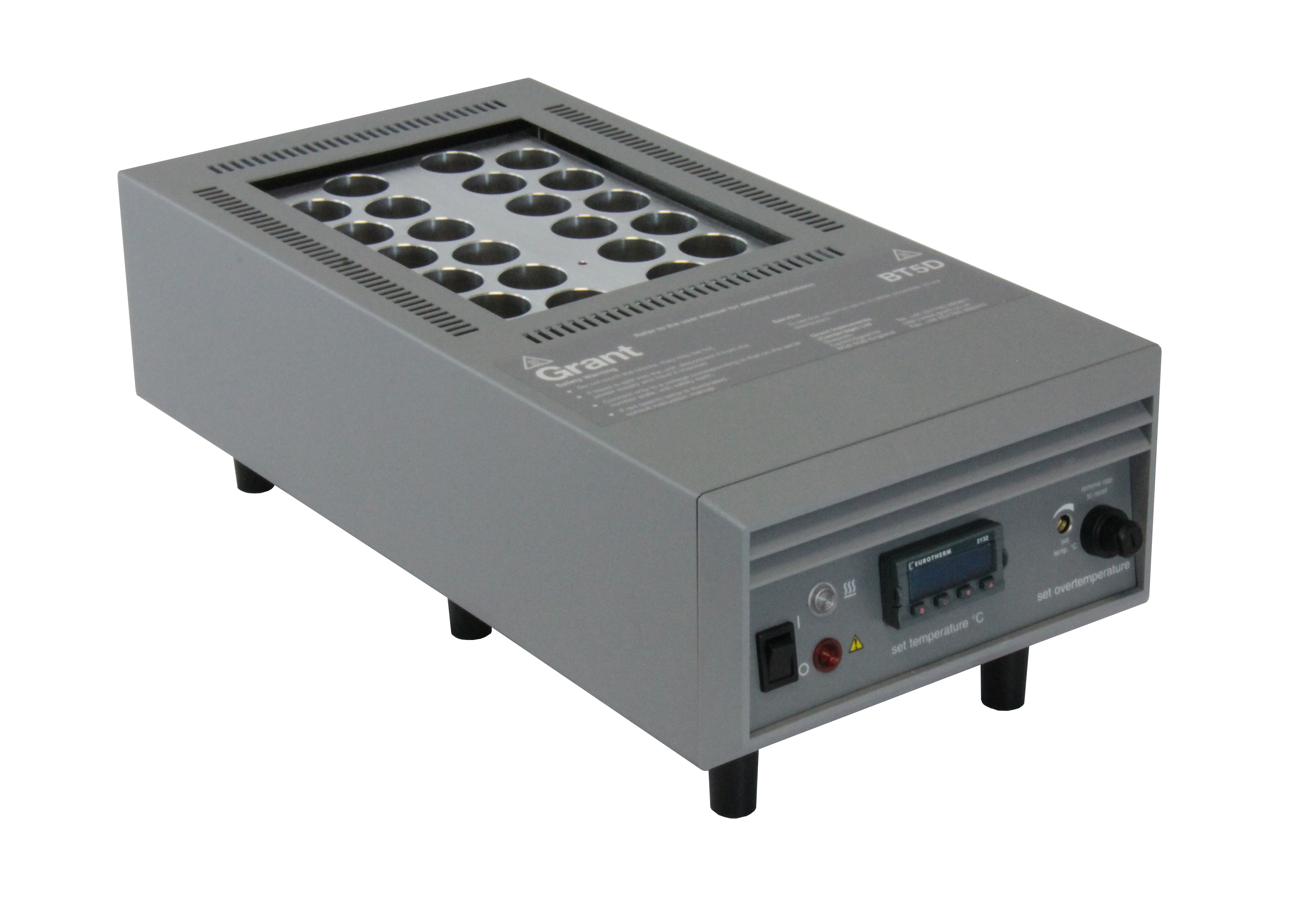

BT5D High Temperature Dry Block Heater
The Grant BT5D is a convenient digitally controlled dry block heating system for high temperature applications where the use of a bath is not desirable.
Capacity:
Share:
Product Details
Applications
- Veterinary laboratories - digestion of tissue samples for lead analyses
- Chemical laboratories - organic synthesis
- Technology and research - materials (explosives) testing
- Any application requiring heating in a dry block up to 400ºC
- Veterinary laboratories - digestion of tissue samples for lead analyses
- Chemical laboratories - organic synthesis
- Technology and research - materials (explosives) testing
- Any application requiring heating in a dry block up to 400ºC
About
It provides temperature control without the need for fluids and reduces the risk of contamination.
- Temperature range ambient plus 10 to 400ºC
- Stability ±0.5ºC, uniformity 1%
- Timed or continuous operation
- Choice of two models with different block capacities
- Custom size blocks available
It provides temperature control without the need for fluids and reduces the risk of contamination.
- Temperature range ambient plus 10 to 400ºC
- Stability ±0.5ºC, uniformity 1%
- Timed or continuous operation
- Choice of two models with different block capacities
- Custom size blocks available
Specifications
- Dimensions (h x d x w)145 x 420 x 205mm
- Temperature rangeAmbient +10 to 400ºC
- Stability (DIN 58966)0.5±ºC (up to 300ºC
- Uniformity±1%
- DisplayLED
- Display resolution1ºC
- Heat up time (ambient +10 to 400ºC)1 hour 40 minutes
- Timer1 to 9999 minutes
- SafetyAdjustable cut-out
- Electrical power - 230V750W
- Electrical power - 120V750W
- Supply voltage120 or 230V (50/60Hz)
- Weight7.5kg
