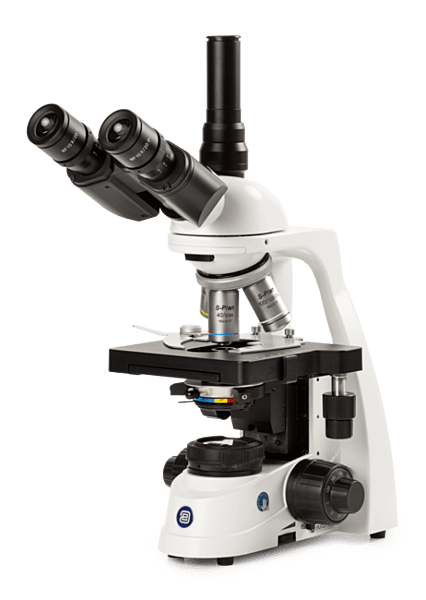

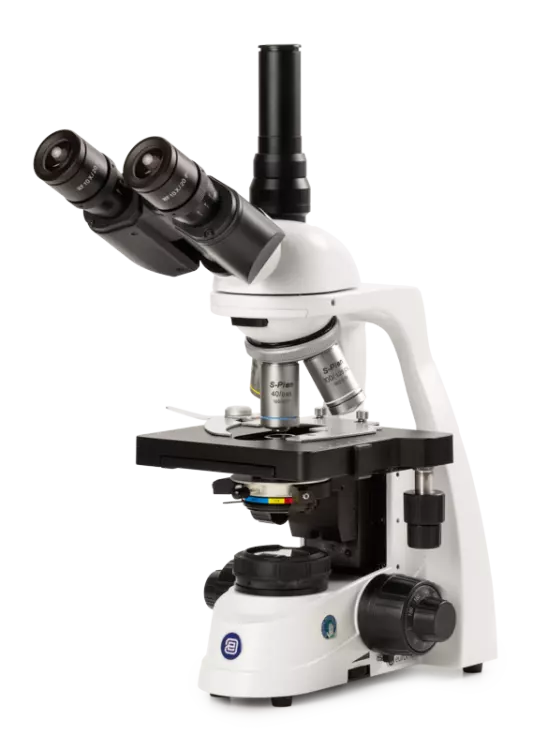

The all new microscopes of the BlueScope series are designed for education, universities and small laboratories. Focus on durability and safety while maintaining the highest quality standards. These microscopes are equipped with a rotating head that can be adjusted in two heights and have a rackless stage for user safety and ergonomics
A color-coded condenser, quick focus aid and storage compartment for accessories make this microscope ideal for students and over all, easy to use
| Models | Mono | Bino | Trino | Digital | Digital tablet | Digital 7 inch LCD | 4/10/40x objectives | 60x objective | 100x objective | Mechanical X-Y Stage | Dual color NeoLED™ | |
| BL.1051 | • | • | • | • |  | |||||||
| BL.1151 | • | • | • | • | • |  | ||||||
| BL.1651 | • | • | • | • | • |  | ||||||
| BL.1152 | • | • | • | • | • |  | ||||||
| BL.1652 | • | • | • | • | • |  | ||||||
| BL.1153 | • | • | • | • | • |  | ||||||
| BL.1653 | • | • | • | • | • |  | ||||||
| BL.1055 | • | • | • | • | • | |||||||
| BL.1057 | • | • | • | • | • | |||||||
| BL.1057‑T | • | • | • | • | • |  | ||||||
| BL.1057‑LCD | • | • | • | • |
- Coming soon (end 2025)
- WF 10x/20 mm eyepieces
- Models with an integrated 5.0 MP CMOS camera
- Models with a 7” LCD screen or tablet
- Universal USB-C 5V charging port
- Smart storage compartment
- Slot for polarization filter
- Integrated mechanical X-Y stage
- Color-coded height adjustable condenser
- Köhler illumination
- Dual colored illumination: 3 W white & halogen colored NeoLED™
- Quick focus aid
- 10 Years warranty
EYEPIECE(S)
Wide field WF 10x/20 mm secured eyepieces.
The eyepiece of monocular models is supplied with pointer
HEAD
- Monocular models with 45° inclined tubes
- Binocular and trinocular models have 30° inclined tubes, interpupillary distance is adjustable between 48 and 75 mm and equipped with diopter adjustments ± 5 on both eyepieces
- All heads are 360° rotatable. The trinocular head has a fixed light path beam splitter (50:50) and generates an erect image
- The BlueScope can also be supplied with a discussion head
- Models with an integrated 5.0 MP CMOS camera, with a 7” LCD screen or tablet available
NOSEPIECE
Reversed quadruple nosepiece on ball bearings
OBJECTIVES - 45 MM PARFOCAL
- All models are supplied with Semi Plan 4x/0.10, 10x/0.25 and S40x/0.65 objectives
- The S40x, S60x (optional) and S100x (optional) objectives are spring loaded
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
- Coaxial coarse and fine adjustments with 100 graduations
- Precision 2 μm per graduation, 0.2 mm per rotation
- Total travel range is approximately 10 mm
- Supplied with an adjustable rack stop to prevent damage to sample and objectives
- Improved coarse & fine adjustment, which is equipped with tension control
- With quick focusing aid for finding the slides focusing region with ease
STAGE
Rackless 140 x 135 mm stage with mechanical 70 x 50 mm X-Y translation stage
CONDENSER
Color coded, height adjustable Abbe condenser N.A. 1.25 with iris diaphragm and filter holder
KÖHLER ILLUMINATION
Köhler illumination ensures the highest possible contrast and the maximum achievable resolving power. It generates a uniform illumination of the sample and eliminates all interference from dust on lenses and side glare of the light source
DUAL ILLUMINATION SYSTEM
- White LED: 6000 – 6500 K white 3 W LED™.Ideal for standard observations with crisp, cool lighting
- Halogen colored LED: 3000 – 3200 K 3 W NeoLED™. Enhances contrast for specific applications such as transparent objects
QUICK FOCUS AID
The BlueScope is equipped with a quick focus aid
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
PACKAGE CONTENT
Supplied with blue filter, Allen key, 5 ml immersion oil, 100-240 Vac / 5 Vdc USB multi-plug power adapter, 3 rechargeable type AA batteries, manual and dust cover
BLUESCOPE DIGITAL
