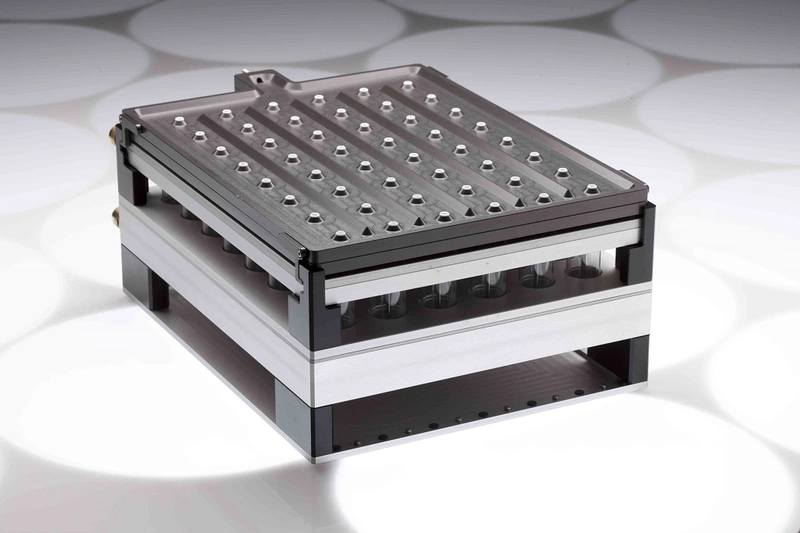

(bioREACTOR 48) bioREACTOR
The 2mag bioREACTOR is an extremely space-saving and user-friendly bioreactor block with 48 parallelized minireactors.
The high degree of parallelization makes it easy to implement high-throughput cultivations in the fields of biotechnology, chemistry and pharmacy. Miniaturisation into the low millilitre scale (8-15 ml) provides a significant saving of material and process costs. This strongly reduces development time and costs for new production processes.
The 2mag bioREACTOR is characterised by an exactly controllable stirring speed with automatic stirrer monitoring as well as precise non-invasive real time measurement of pH and dissolved oxygen (DO). Gassing and mixing of the culture vessels is provided by the gas inducing, inductive stirring elements.
The sterile headspace gassing prevents cross and foreign contamination and enables the cultivation of aerobic and anaerobic microorganisms.
Precisely defined process engineering parameters and the power and oxygen input (kLa > 0.4 s-1), which is comparable to classic stirred tank reactors, ensure simple and reliable scaling of the results.
The bioREACTOR 48 can be integrated into a pipetting robot for fed-batch cultivation, pH control and sampling. We have found an experienced and competent partner in the robot manufacturer Hamilton Bonaduz AG. We will be happy to put you in touch with them.
Product Details
| bioREACTOR | bioREACTOR 48 | |
| Stirring points | 48 | |
| Stirring point distance | 35 mm | |
| Material block | Aluminum, hard-coated | |
| Width | 240 mm | |
| Length (with PreSens sensor bars) | 367 mm | |
| Height | 135.5 mm (without rubber feet); 138.6 mm (with rubber feet) | |
| Weight | 12.0 kg | |
| Electrical data | 230 V / 60 Hz oder 115 V / 50 – 60 Hz | |
| Protection category | IP31 | |
| Culture vessels | ||
| Working volume | 8 – 15 ml | |
| Material | Polystyrene (PS) | |
| Block Temperature | ||
| Permitted operating conditions (with sensors) | +10 °C up to +50 °C (at 60% humidity) | |
| Permitted operating conditions (without sensors) | 0 °C up to +65 °C (at 60% humidity) | |
| Mixing | ||
| Stirring element | gas inducing stirring elements | |
| Stirring speed | 100 – 4,000 rpm | |
| Gassing | ||
| Flow rate | 4.8 l/min | |
| Real-time measurement | ||
| pH range | 4.0 up to 7.5 | |
| DO range | 0 – 50 % O2 | |
| Order no. | 100730 | |
