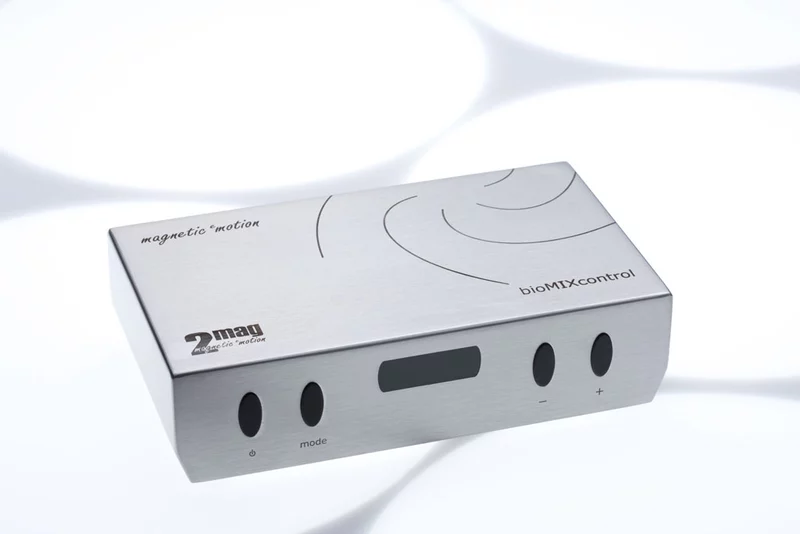

bioMIXcontrol S ( Control units ) for bioMIXdrive stirring drives
Efficient stackable control unit, for 2mag bioMIXdrive series, developed for the hard daily lab use and uncompromising warming-free continuous operation.
Control unit for the connection of 1 stirring drive bioMIXdrive 1, 2, 3 or 4, extended speed range from 5 to 250 rpm, jerk-free stirring, even and smooth stirring also at slow speeds without any own-generated heating effect. Power setting (10-steps) for high power with regard to large and viscous stirring amounts and reduced power for the warming-free continuous operation e.g. in CO2-incubators.
Digital display for speed- and power setting, SoftStart for reliable and safe accelerating of stirring bar, QuickSet for quick setting of start- and maximum speed, storage of last working status when turning off, firm stainless steel housing, easy to clean.
Interfaces 0-10 volts, calibrateable 4-20 mA for process control systems, RS232, USB, Ethernet, OPC UA, LADS oriented, other housings (e.g. for DINrail installation) and firmware adaptions on request.
Product Details
| Type | bioMIXcontrol S |
| Speed range | 5 – 250 rpm |
| Stirring power (max.) | 40 W |
| Power setting | 10 – 100% (10-stage) |
| Housing material | Stainless steel |
| Permitted operation conditions | 0 up to +40°C (at 80% humidity) |
| Connected load | 100-240 V / 50-60 Hz / 1.5 A |
| Dimensions (WxDxH) | 215 x 120 x 57 mm |
| Protection class | IP20 |
| Shipping weight (gross) | approx. 1.9 kg |
| Order no. | 98500 |
