BioBlue.Lab
Non-returnable
0.00SAR
Out of stock

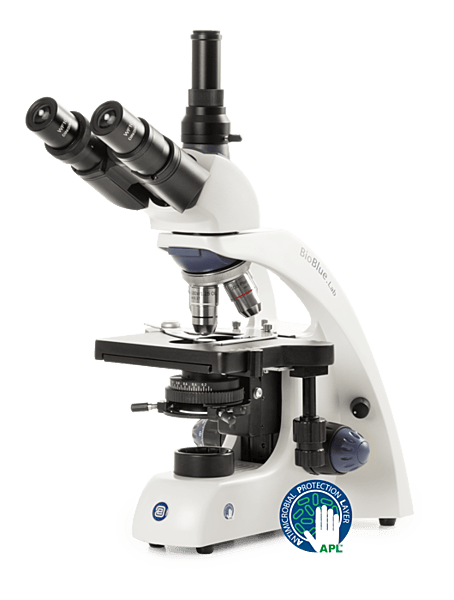

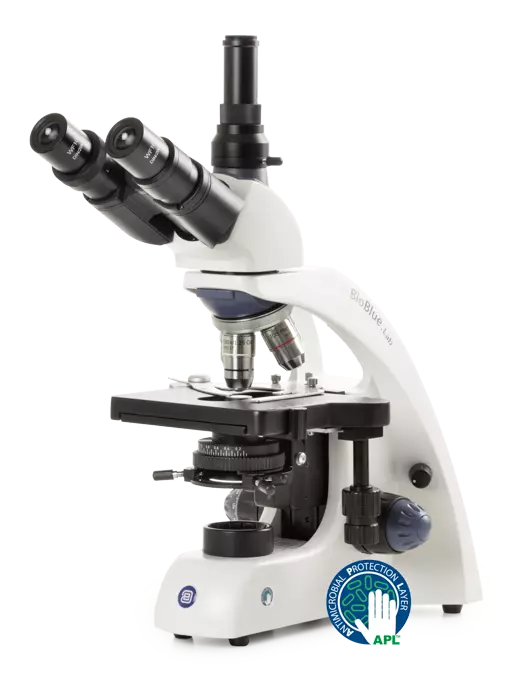

The BioBlue.Lab is an instrument that precisely matches highest expectations of microscopy users. These ergonomic easy-to-use microscopes have specifically been designed for educational and laboratory applications. The 150 x 140 mm stage with integrated rackless X-Y mechanical stage with 75 x 30 mm travel, provides a smooth translation of the specimen and highly precise positioning which is highky appreciated in most demanding cytology and histopathology applications
The BioBlue.Lab microscope models offer great functionality and are equipped with WF10x/20 mm eyepieces, plan and IOS plan 4x/ 10x/ S40x/ S100x objectives. All models are equipped with NeoLED illumination system and are available in binocular and trinocular versions
The BioBlue.Lab microscope models offer great functionality and are equipped with WF10x/20 mm eyepieces, plan and IOS plan 4x/ 10x/ S40x/ S100x objectives. All models are equipped with NeoLED illumination system and are available in binocular and trinocular versions
Product Details
- Binocular and trinocular models
- Reversed quadruple nosepiece
- Plan and plan IOS objectives
- Finity and infinity optical system
- Integrated mechanical stage
- NeoLED™ illumination
- Ergonomic carrying grip
Wide field WF 10x/20 mm eyepieces
HEAD
- All models have 30° inclined Ø 30 mm tubes
- The interpupillary distance is adjustable between 48 to 75 mm
- All models have a ±5 diopter adjustment on left tube
- All heads are 360° rotatable and secured with a screw
- The trinocular head has a fixed light path beamsplitter (50:50) and generates an erect image
NOSEPIECE
Reversed quadruple nosepiece on ball bearings. Slot for analyzer
OBJECTIVES - 45 MM PARFOCAL
- The microscopes are equipped with plan, plan IOS, plan phase and plan phase IOS objectives
- Optional 20x/0.40 and S60x/0.85 objectives are also available
- The S40x, S60x and S100x objectives are spring loaded.
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
FOCUSING
- Coaxial coarse and fine adjustments with 200 graduations
- Precision 1.5 μm per graduation, 0.3 mm per rotation
- Total travel approximately 28 mm
- Supplied with an adjustable rack stop to prevent damage to sample and objectives
- The coarse adjustments are equipped with friction control
STAGE
Rackless 150 x 140 mm stage with mechanical 75 x 30 mm X-Y translation stage
CONDENSER
Height adjustable Abbe condenser N.A. 1.25 with iris diaphragm
ILLUMINATION
- All models are supplied with an adjustable 3 W NeoLED™ illumination system for increased light output
- Power supply with integrated 100-240 Vac
STORAGE AND TRANSPORTATION
from left to right: BB.9900 - AE.9919 - AE.9916
ANTI-THEFT SLOT
At the back of the microscope a Kensington Security Slot is placed, which can be used to secure the instrument from theft
PACKAGING
- Supplied with power cord, dust cover, a spare fuse, user manual and 5 ml immersion oil and white filter, for on lamp house
- All packed in a polystyrene box
