Bed Scale [Max]: 500 kg [d]: 200 g
0.00SAR
C315.4B.500.C-1Bed Scale
Maximum capacity [Max]: 500 kg
Readability [d]: 200 g
Readability [d]: 200 g
Product Details
Specifications

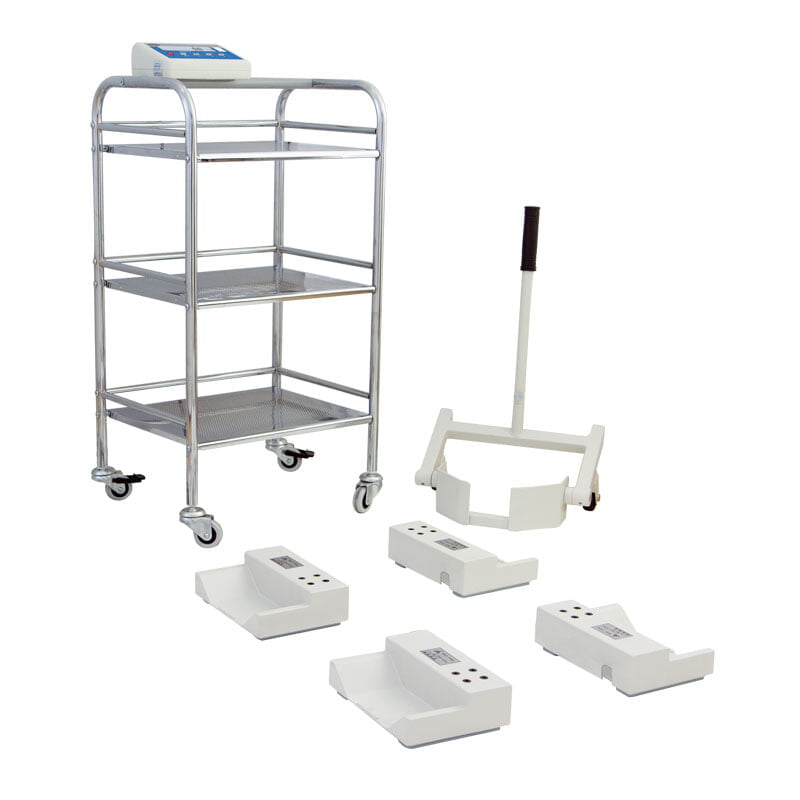

Bed scales series is a precise weighing instruments verified in class III, designed for weighing a patient who lies on a bed.
Four weighing modules connected through cables enable placing the scale under a bed of optional size. Lifting the bed is very simple with a jack specially designed for this purpose (it is designed for wheels size between 100 and 200 mm).
The scales comes standard with an indicator PUE C315 series comprising a backlit LCD display and 5-button keyboard for simple operation of basic scale functions.
Scale is transported on a trolley, which is simultaneously a stand for the scale indicator.
Four weighing modules connected through cables enable placing the scale under a bed of optional size. Lifting the bed is very simple with a jack specially designed for this purpose (it is designed for wheels size between 100 and 200 mm).
The scales comes standard with an indicator PUE C315 series comprising a backlit LCD display and 5-button keyboard for simple operation of basic scale functions.
Scale is transported on a trolley, which is simultaneously a stand for the scale indicator.
Balance
- Maximum capacity [Max]500 kg
- Readability [d]100 g
- Tare range-500 kg
- OIML ClassIII
- DisplayLCD (backlit)
- Packaging dimensions390×820×360 mm
- Net weight18.5 kg
- Gross weight28 kg
- Communication interfaceRS232
- Power supply100 – 240 V AC 50/60 Hz and battery
- Operating temperature0 — +40 °C
- Relative humidity10% — 85% RH no condensation
- Power consumption max.5 W
- Operation time on batteriesup to 8 h
- Optional interfacesRS232
