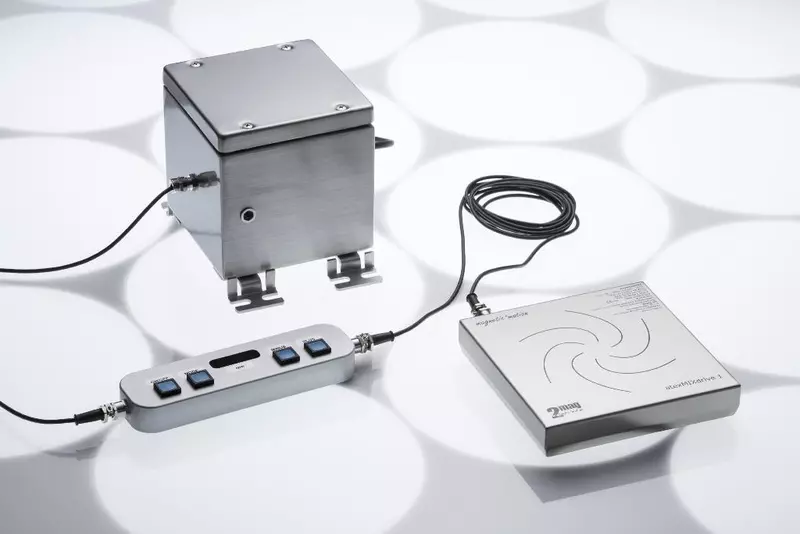

(atexMIXdrive) Specialized stirrers
Explosion protected, ultra flat, wear-free 2mag magnetic stirrer with 1 stirring position, for up to 10.000 ml.
One stirring point with 100% wear- and maintenance-free 2mag induction drive for powerful mixing of solutions, jerk-free stirring even at low speeds, temperature range up to +40°C, suitable for use in CO2-incubators and ovens.
Fully encapsuled and hermetically sealed stainless steel housing, IP68, waterproof, dustproof and germproof, extremely robust construction and design, easy to clean and maximum resistance, submersible in water or oil baths, certified according to ATEX II 2G Ex mb IIC T4 Gb.
Explosion-proof magnetic stirrer, certified according to ATEX Maintenance- and wear-free magnetic stirrer Footprint 18 x 18 cm Stirring speed from 100 up to 2,000 rpm (depending on the control unit) Up to 10 litres strirring volume Extremely robust construction Integrable in systems Developed and made in Germany
Product Details
| Type | atexMIXdrive |
| Stirring points | 1 |
| Stirring volume/stirring point | 1 – 10,000 ml |
| Stirring power (max.) | 20 W |
| Housing material | Stainless steel |
| Permitted operation conditions | -10 °C up to +40 °C in air, up to+40 °C in water |
| Operating voltage (max.) | 48 VDC |
| Dimensions (WxDxH) | 180 x 180 x 38 mm |
| Protection class | IP68 |
| Ex marking | ATEX II 2G Ex mb IIC T4 Gb |
| Shipping weight (gross) | approx. 3.5 kg |
| Order no. | 49001 |
