Velp

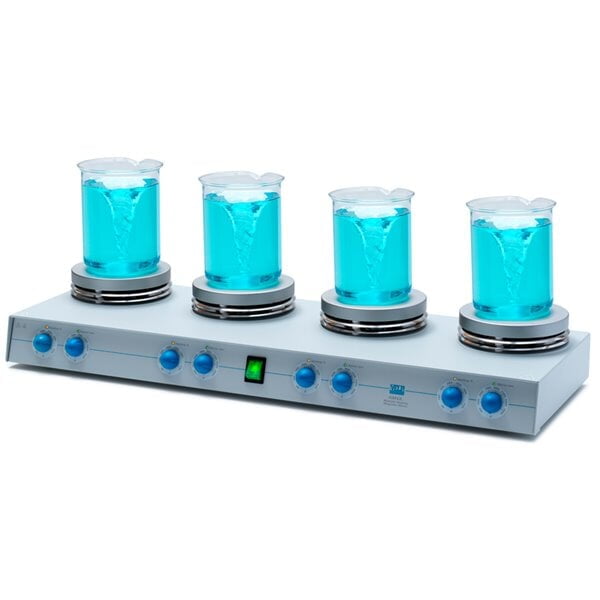

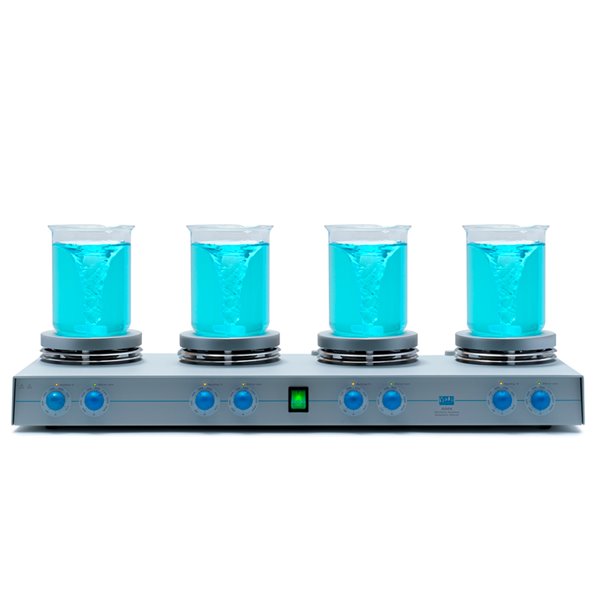

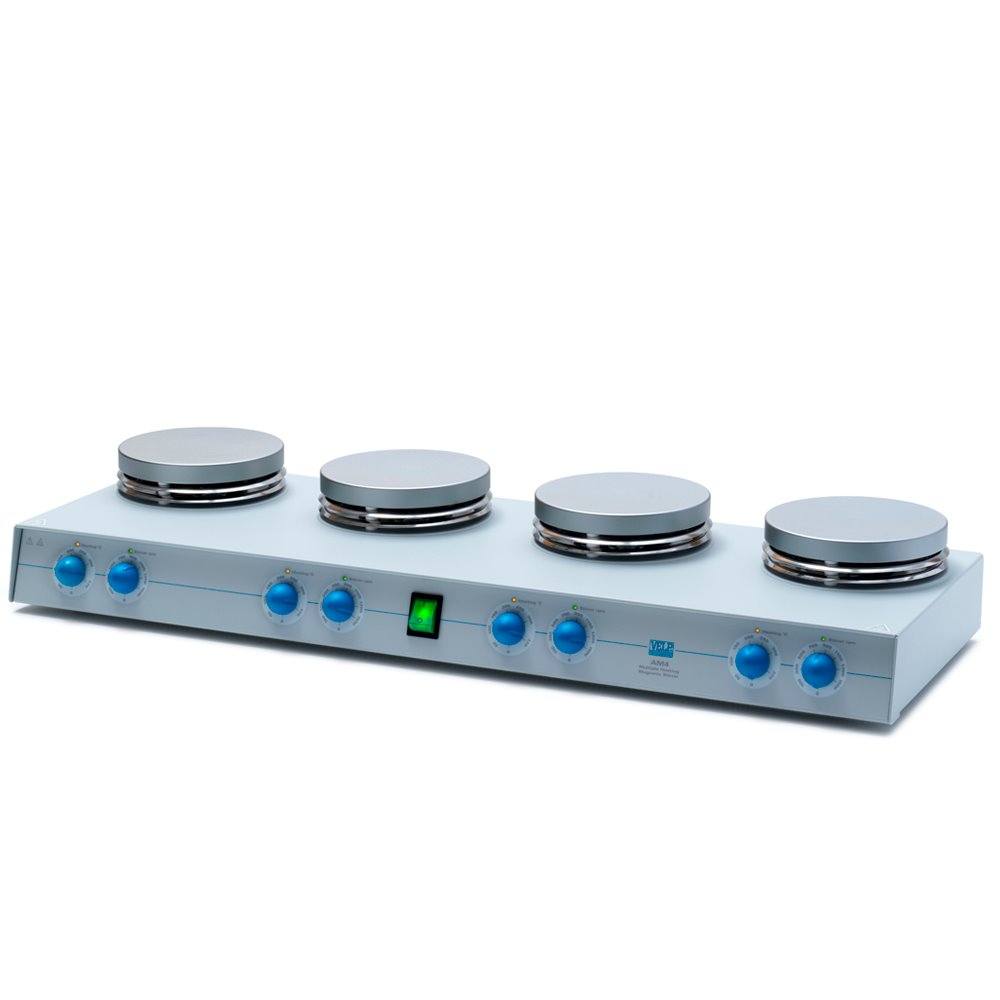

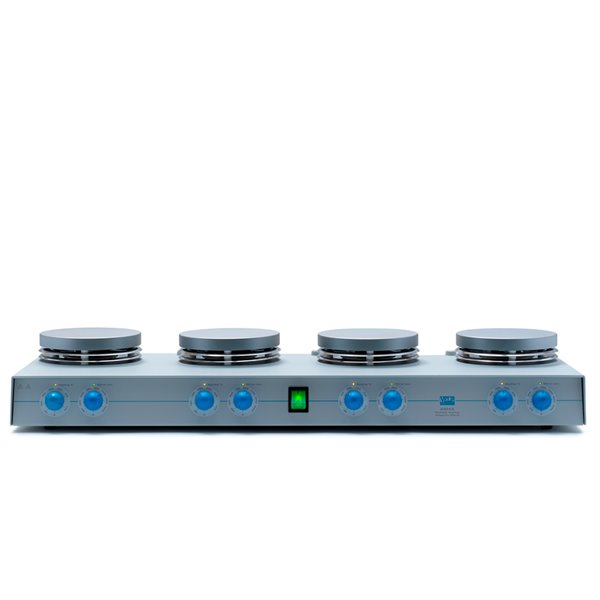

AM4 Multi-positions Hot Plate Stirrer
AM4 Multi-positions Hot Plate Stirrer
Multiple-position hot plate stirrer with four separately controlled stirring plates.
Share:
Product Details
Excellent Performance
- Uniform heat distribution with coated aluminum alloy heating plate
- Excellent resistance to chemicals
- Maximum temperature 370 °C
- Accepts up to 4 x 15 liter beakers
- Electronic speed regulation up to 1500 rpm
- Excellent speed control, even at low speeds
- SpeedServo™ ensures constant speed even when the viscosity changes
- High power PCM-type driving magnet
- Designed for the longest lifespan and guaranteed by 3 years warranty
- 4 heating stirrers, independently controlled
- Distance between stirring position centres: 186 mm
- Accept up to Ø 135 mm flasks
- Uniform heat distribution with coated aluminum alloy heating plate
- Excellent resistance to chemicals
- Maximum temperature 370 °C
- Accepts up to 4 x 15 liter beakers
- Electronic speed regulation up to 1500 rpm
- Excellent speed control, even at low speeds
- SpeedServo™ ensures constant speed even when the viscosity changes
- High power PCM-type driving magnet
- Designed for the longest lifespan and guaranteed by 3 years warranty
- 4 heating stirrers, independently controlled
- Distance between stirring position centres: 186 mm
- Accept up to Ø 135 mm flasks
Specifications
- Stirring Volume:up to 15 liters (x4)
- DIMENSIONS (WXHXD)715x115x246 mm
- WEIGHT8.3 Kg (18.2 lb)
- HEATING PLATEaluminium alloy coated with a special protection
- HEATING PLATE DIAMETER135 mm
- CONSTRUCTION MATERIAL:epoxy painted metal structure
- ELECTRONIC SPEED CONTROL:up to 1500 rpm for each stirring position
- TEMPERATURE REGULATION:from room temp. to 370 °C for each stirring position
- COUNTER-REACTION:constant speed
- STIRRING SYSTEM:high-power driving magnet type ''PCM''operated by a mono-phase motor for continuous operation
- STIRRING POSITIONS:4
