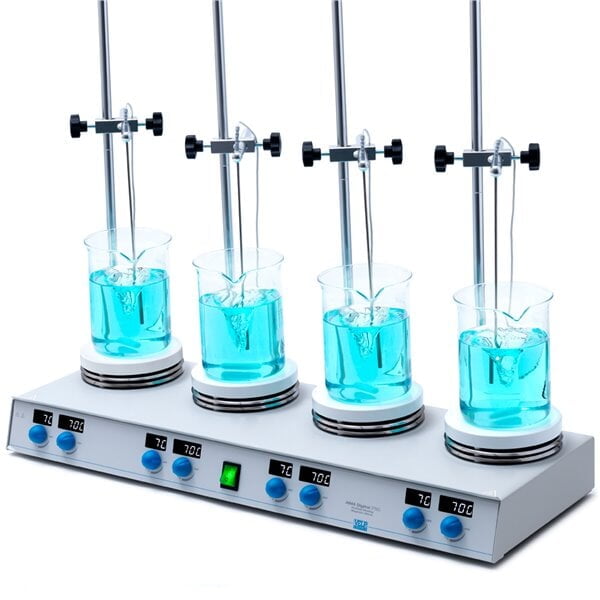

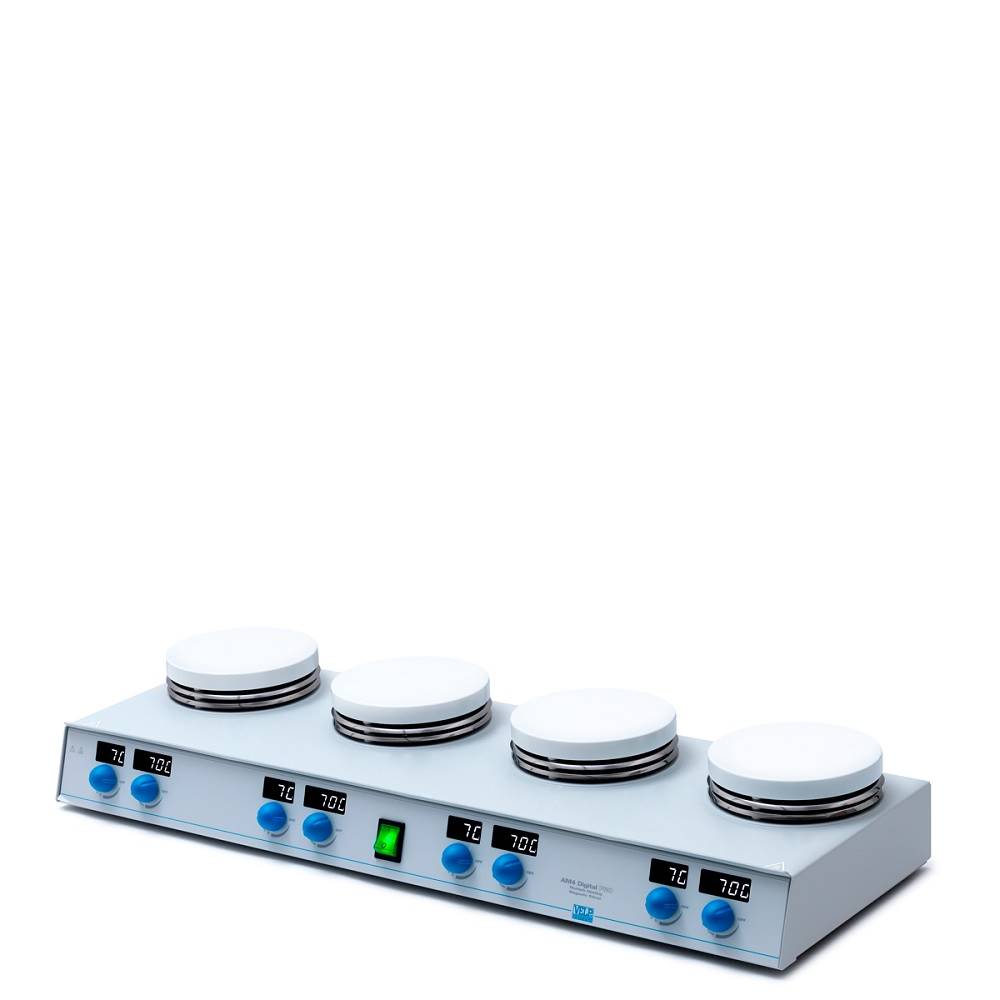

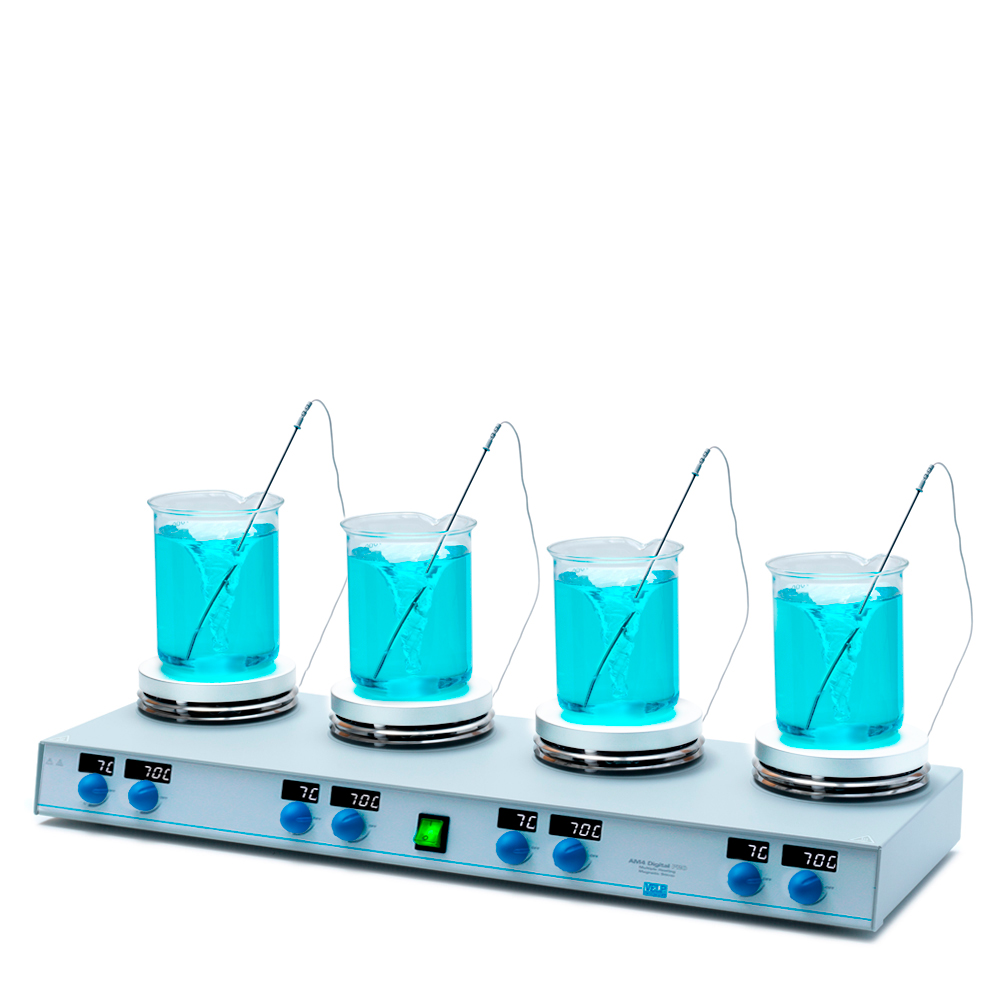

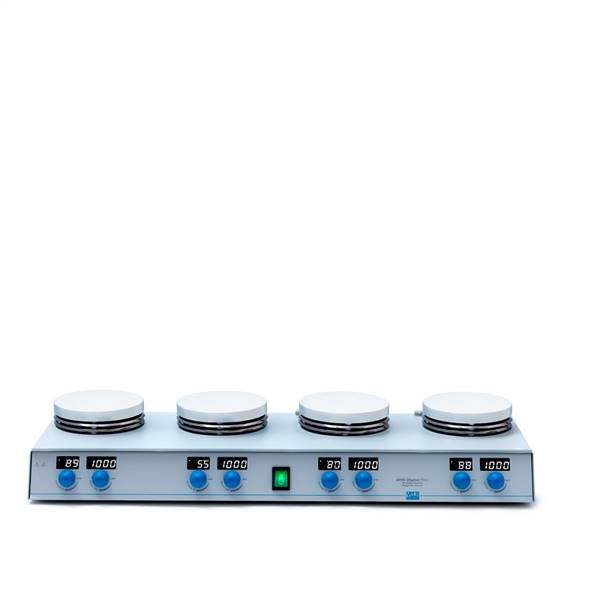

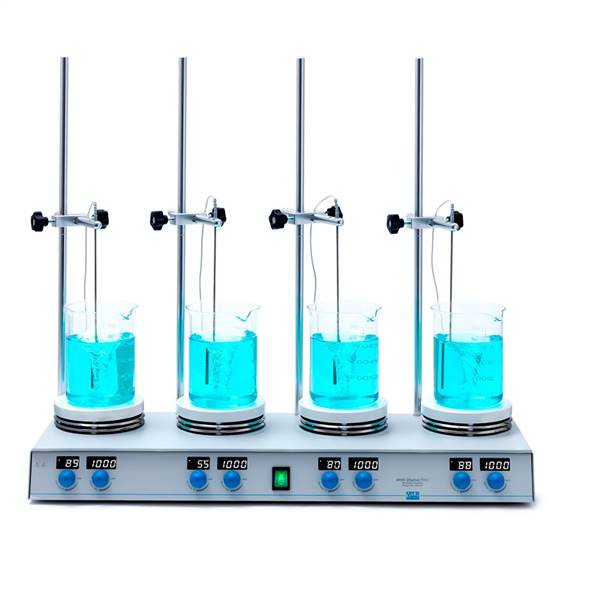

AM4 Digital PRO Multi-position Hot Plate Stirrer
AM4 Digital PRO Multi-position Hot Plate Stirrer
Digital Display for Speed and Temperature
AM4 Digital PRO is the digital hot plate stirrer with 4 independent positions for precise thermoregulation.
With AM4 Digital PRO it is possible to set the temperature up to 370 °C, and the stirring speed from 50 to 1500 rpm.
SpeedServo™ ensures constant speed even when the viscosity changes (counter-reaction).
AM4 Digital PRO is equipped with digital display to finely set the stirring speed and the temperature.
AM4 Digital PRO is the digital hot plate stirrer with 4 independent positions for precise thermoregulation.
With AM4 Digital PRO it is possible to set the temperature up to 370 °C, and the stirring speed from 50 to 1500 rpm.
SpeedServo™ ensures constant speed even when the viscosity changes (counter-reaction).
AM4 Digital PRO is equipped with digital display to finely set the stirring speed and the temperature.
Excellent Thermoregulation with Pt100 and VTF
The AM4 Digital PRO package, includes the external probe Pt100, for thermoregulation up to 250 °C, with an accuracy of ± 1.0 °C.
AM4 Digital PRO can be connected to VTF ensuring perfect thermoregulation up to 300 °C, with premium accuracy of ± 0.5 °C.
The exclusive CerAlTop™ , made of aluminum alloy covered with ceramic, ensures an outstanding temperature homogeneity and optimum resistance and heat transfer.
The AM4 Digital PRO package, includes the external probe Pt100, for thermoregulation up to 250 °C, with an accuracy of ± 1.0 °C.
AM4 Digital PRO can be connected to VTF ensuring perfect thermoregulation up to 300 °C, with premium accuracy of ± 0.5 °C.
The exclusive CerAlTop™ , made of aluminum alloy covered with ceramic, ensures an outstanding temperature homogeneity and optimum resistance and heat transfer.
Maximum Protection and Comfort
The hot plate stirrer AM4 Digital PRO ensure a premium level of safety and protection for the user.
The control panel is easily accessible, is positioned at a safe distance from sources of heat and is protected against possible damage caused by liquid spills thanks to a dedicated run-off groove.
AM4 Digital PRO can be programmed with a maximum safety temperature, useful for some particular applications that requires not to exceed certain temperatures, and preventing unintentional heat up.
In addition, a high temperature warning "Hot Plate Warning" is activated and remains displayed even when the instrument is turned off, until the temperature of the plate has cooled to below 50 °C.
The pressure die-cast structure is designed so that accidental liquid spills cannot reach the internal parts of the hot plate stirrer.
The hot plate stirrer AM4 Digital PRO ensure a premium level of safety and protection for the user.
The control panel is easily accessible, is positioned at a safe distance from sources of heat and is protected against possible damage caused by liquid spills thanks to a dedicated run-off groove.
AM4 Digital PRO can be programmed with a maximum safety temperature, useful for some particular applications that requires not to exceed certain temperatures, and preventing unintentional heat up.
In addition, a high temperature warning "Hot Plate Warning" is activated and remains displayed even when the instrument is turned off, until the temperature of the plate has cooled to below 50 °C.
The pressure die-cast structure is designed so that accidental liquid spills cannot reach the internal parts of the hot plate stirrer.
Heating Magnetic Stirrers
- WEIGHT9.0 Kg
- STIRRING VOLUME (H2O)up to 20 liters x4
- STRUCTUREepoxy painted aluminium structure
- HEATING PLATEaluminum alloy coated with ceramic coating
- HEATING PLATE DIAMETER135 mm x4
- DIGITAL DISPLAY4 for speed, 4 for temperature
- PT100 CONNECTIONprovided x4
- VERTEX CONNECTIONprovided x4
- POWER630 W x4 (2520 W)
- ELECTRONIC TEMPERATURE REGULATIONfrom room temp. to 370°C
- MAXIMUM SAFETY TEMPERATURE DIGITALLY SETTABLEtemperature limit can be set between 50 and 370 °C
- "HOT PLATE WARNING"whenever the top plate temperature is over 50 °C
- HEAT CONTROL ACCURACY WITH PT100± 1,0°C
- HEAT CONTROL ACCURACY WITH VTF± 0,5°C
- STIRRING SYSTEMhigh-power driving magnet type ''PCM'' operated by a mono-phase motor for continuous operation
