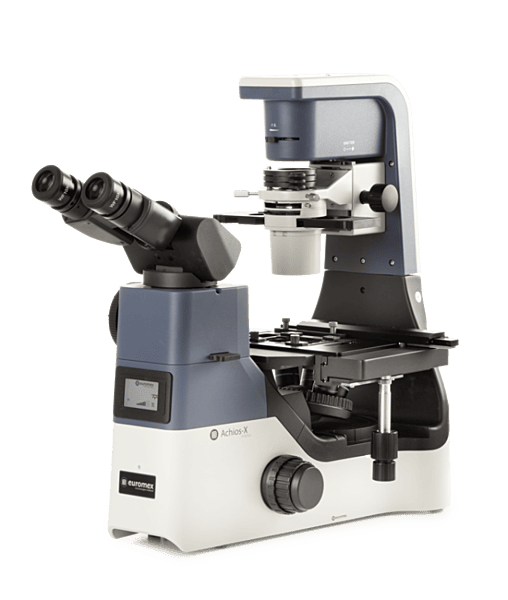

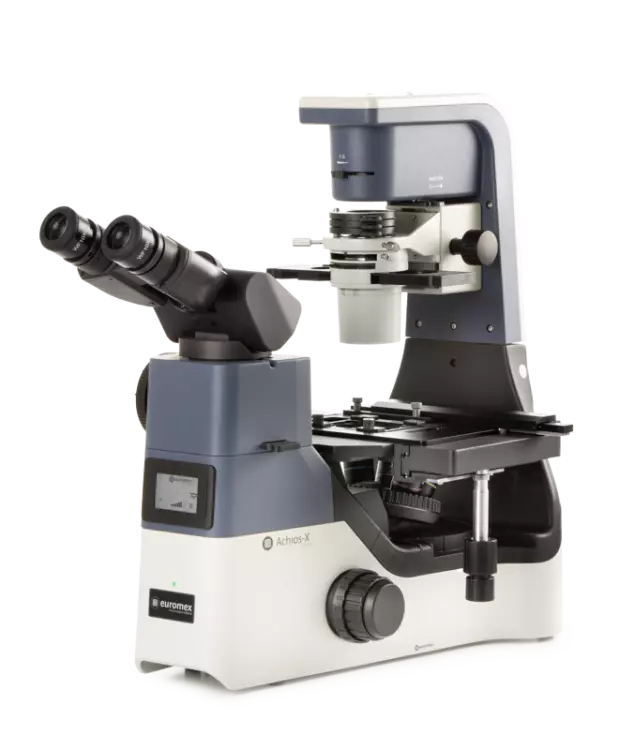

Achios-X Inverso

o = Optional

EYEPIECES
SWF 10x/22 mm wide field eyepieces with adjustable diopter. ø 30 mm tubes

HEAD
Binocular head with 45° inclined tubes or binocular ergo head with 5-35° tilting tubes. Interpupillary distance of 48 to 75 mm. Optional side photo port with 100-0/0-100 beamsplitter

NOSEPIECE
Revolving quintuple nosepiece on ball-bearings

OBJECTIVES - 60 MM PARFOCAL, M25 THREAD

Objectives with 1.2mm coverslip correction

Objectives with adjustable coverslip correction

Fluarex™ objectives are made of low-absorption glass. Fluarex™ is a trademark of Euromex microscopen bv. All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

STAGE

• 170 x 250 mm stage with 129 x 83 mm mechanical X-Y stage
• Supplied with metal insert for Ø 65 glass plate and universal cell culture dish holder (AI.9569)
• Optional metal inserts, Ø 35, Ø 54 and Ø 90 mm cell culture dish holder with 27x26 mm slide holder
• Optional metal insert for Multiwell plates (127.76  x 85.48 mm) (AI.9517)

CONDENSERS

• WD (Working distance): 75 mm, without condenser: 187 mm
• The condenser can be removed to increase WD (178), allowing multilayered culture flasks
• With slot for phase contrast/embossed contrast/Hoffman contrast sliders

For AI.1xxx and AI.3xxx models

• Condenser N.A. 0.30 with iris diaphragm. WD* 75 mm, without condenser: 187 mm

 For AI.4xxx models

• Height adjustable Kohler condenser N.A. 0.30 with iris diaphragm and 3 filter holders and shutter function.
• Mounted on a backwards tilting illumination column allowing easy access to samples and placement multilayered culture flasks, without removing the condenser

WD = Working distance

CONDENSER FOR HOFFMAN CONTRAST
All models can be equipped with a Hoffman condenser and slider with Hoffman slits for 10/20/40objectives. Needs Hoffman objectives

SLIDER FOR 3D RELIEF CONTRAST
All models can be equipped with a 3D relief contrast slider. Works for standard condenser and Plan or Plan Semi-Apo IOS 10/20/40x objectives

FOCUS ADJUSTMENT

• Coaxial 37.5 mm coarse and fine adjustments with 200 graduations
• Precision 1 μm, 0.2 mm per rotation
• Fine focus knobs are left/right interchangeable

ILLUMINATION

• Transmitted 3W NeoLED™ illumination with adjustable intensity
• Internal power supply 100-240 V (CE). Fuse 500 mA 250 Vac

SMART LIGHT CONTROL
This intelligent function:

• memorizes the light intensity level for each objective
• increases comfort
• saves valuable time during routine magnification shifts
• includes a sleep function

NEOLED

The innovative NeoLED™ design is a combination of a custom LED and a specially designed thin lens with a short focal length

Four main benefits:

• More oblique light from the NeoLED™ light source, which increases the light output significantly
• Less energy is required to achieve this level of light intensity
• The larger aperture of NeoLED™ allows the optical system of the microscope to produce images at higher resolutions, very close to the theoretical diffraction limit of the optics
• Super long life span, up to 50.000 hrs nominal, L70 norm

PACKAGE CONTENT

• Supplied with Ø 65 glass plate and universal cell culture dish holder
• Power cord, dust cover and user manual
• Phase contrast models are supplied with green filter and alignment telescope
