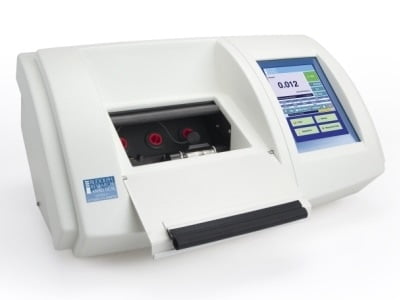

Polarimeter – AUTOPOL® II
A Perfect choice as an educational polarimeter. The AUTOPOL® II is designed as a general purpose automatic polarimeter for budget focused Pharmacuetical, Contract Laboratories, Food Laboratories, and College Chemistry Laboratories. Great price yet packed with features and Quality! The Autopol® II offers the same standard and optional features as the Autopol® I but allows greater wavelength flexibility with 589nm and 546nm standard wavelengths and optional 365nm, 405nm, 436nm, 578nm, and 633nm available.

Autopol® II Polarimeter Standard Features:

• 0.01° Arc Accuracy.

• 589nm and 546nm wavelengths. (A total of 2-4 wavelengths may be ordered initially or as needed)

• Built in thermoprobe for temperature measurement.

• Windows Embedded for direct connection to the network server and flexible USB Printing.

Optional Features:

• TempTrol™ Automatic Electronic Heating & Cooling 15° – 40°C ±0.2°

• 365nm, 405nm, 436nm, 578nm, and 633nm wavelengths. (A total of 2-4 wavelengths may be ordered initially or as needed)

• AP Accuracy Option: 0.003° Arc Optical Rotation

• AP Resolution Option: 0.01, 0.001° Arc Selectable.

High Quality Components
Rudolph manufactures its entry-level and education polarimeter with the same high quality optics as its more expensive instruments. While other manufacturers in this price range use Polaroid Plastic Dichroic Sheet Polarizers, Rudolph does not. Instead, Rudolph uses the same high quality Glan Thompson Calcite Polarizers used in its high accuracy models (Figure A).  Why are high quality polarizing prisms important? Because prisms are two of the most critical optical components in the automatic polarimeter. Polaroid prisms are made of a polymeric plastic where the molecules are stretched and oriented in a specific direction so as to linearly polarize light. These types of plastic sheet polarizers are very low price ($50.00 USD) and are vulnerable to heat, warp over time, deteriorate from moisture, and also have greater light absorption than Calcite Polarizers. In many cases, the plastic polarizers must be replaced in 3 – 5 years. Glan Thompson Calcite Polarizers are comprised of a carbon crystalline structure similar to diamond and have excellent light transmission characteristics. The quality of these prisms is so good, Rudolph guarantees its prisms over the life of the education polarimeter. Automatic Polarimeter Sample Temperature Monitoring  As shown in Figure B, the Autopol II comes with a Temperature Probe so that sample temperature can be displayed and printed. However, if your product requires Temperature Control, then the Autopol II will most likely not be accurate enough for this type of sample, as is the case for 98% of pharmaceutical applications where a Certificate of Analysis must be issued.
Wavelengths and Automatic Polarimeter Accessories
The Autopol® II automatic education polarimeter comes with two built-in wavelengths that are selectable via the touch screen: 589nm (often referred to as the Sodium D-Line) and 546nm. Optional wavelengths of 365nm, 405nm, 436nm, 578nm, and 633nm are available. The Autopol® II also includes the Standard Polarimeter accessories Package shown in Figure C or you can upgrade to the Calibration Package shown in Figure D.   Increase workflow with Laboratory Automation, our high yield lab automation will allow your employees extra free time to complete other tasks.
All Rudolph Instruments carry our exclusive 20 Commitment to service your instrument.

Rudolph Research Analytical offers a comprehensive range of Preventive Maintenance and Service Programs. Rudolph has demonstrated a commitment to its customers by keeping installed instruments operational, not only for 20 years, but in some cases for over 40 years. This long-term commitment to keeping our instruments running makes the cost of ownership, over the life of a Rudolph Education Polarimeter, one of the lowest in the laboratory market segment. At the date this document was published, there is no other laboratory instrument manufacturer guaranteeing service and technical support for 20 years.

Autopol II Specifications

Measuring Mode	Optical Rotation Specific Rotation Specific Rotation Plus Concentration User Defined Scale Sugar Degrees °Z(ISS)
Measuring Scale	Degrees Arc Optical Rotation
Resolution	0.01° Arc Optical Rotation 0.01% Concentration 0.01 Specific Rotation
Accuracy	0.01° Arc Optical Rotation 0.03°Z (ISS) Sugar Degrees
AP Acccuracy Option	Resolution: 0.001° Arc Optical Rotation Reproducibility: 0.002° Arc Optical Rotation Accuracy ±0.003° Arc Optical Rotation
AP Resolution Option	AP Selectable Resolution: 0.01, 0.001° Arc
Reproducibility	0.01° Arc Optical Rotation
Measuring Range	± 89.99° Arc Optical Rotation ± 999.99°Arc Specific Rotation 0-99.9% Concentration
Prism	Glan Thompson Calcite
Optical Wavelengths	589nm 546nm Optional Wavelengths 365nm, 405nm, 436nm, 578nm.
Wavelength Selection	Touchscreen Selectable: 2 standard, 4 Optional
21 CFR Part 11 Compliant Software	Yes with optional PC Software
Temperature Control	By external water bath (Standard) TempTrol™ Automatic Electronic Heating & Cooling 15° – 40°C ±0.2° (Optional)
Temp. Probe Measurement Range	10° - 100°C
Temp. Probe Measurement Accuracy	±0.1°C
Measurement Time	5 measurements in less than 25 seconds (avg.)
Light Source	Tungsten-halogen 6V, 20W, avg. 2,000 hour life
Optional Light Source	LED 20-30 mA 100,000 hr. avg. life
Sample Chamber	Accepts sample tubes up to 200mm
Data Storage	32 GB Non-removable Compact Flash
Communication Interface	3- USB Ports, 1-USB 3.0 2- RS232 serial ports, Ethernet Port for Network Communication
Calibration	Automatic calibration via touch screen
Operating System	Windows Embedded
Display	8 inch Color, 800 x 600 pixel resolution with 400 nits of brightness.
User Interface	Touchscreen
Automatic Sensitivity Control	Measures samples with transmittance as low as 0.01% (up to OD 4.0)
Input Power	100 - 240V, 50/60Hz
Operation Dimensions	24.3"W x 12.7"H x 17"D, 617mm W x 323mm H x 432mm D
Shipping Dimensions	36"W x 19"H x 21"D, 923mm W x 487mm H x 538mm D
Operating Weight	42 lbs. (19.05 kg)
Shipping Weight	72 lbs. (32.6 kg)
Calendar/Clock Functions	Battery-backed clock; time and date sent to computer and printer
