MYA 2.5YMicrobalance
Maximum capacity [Max]: 2.1 g
Readability [d]: 1 µg
Readability [d]: 1 µg
Product Details
Specifications

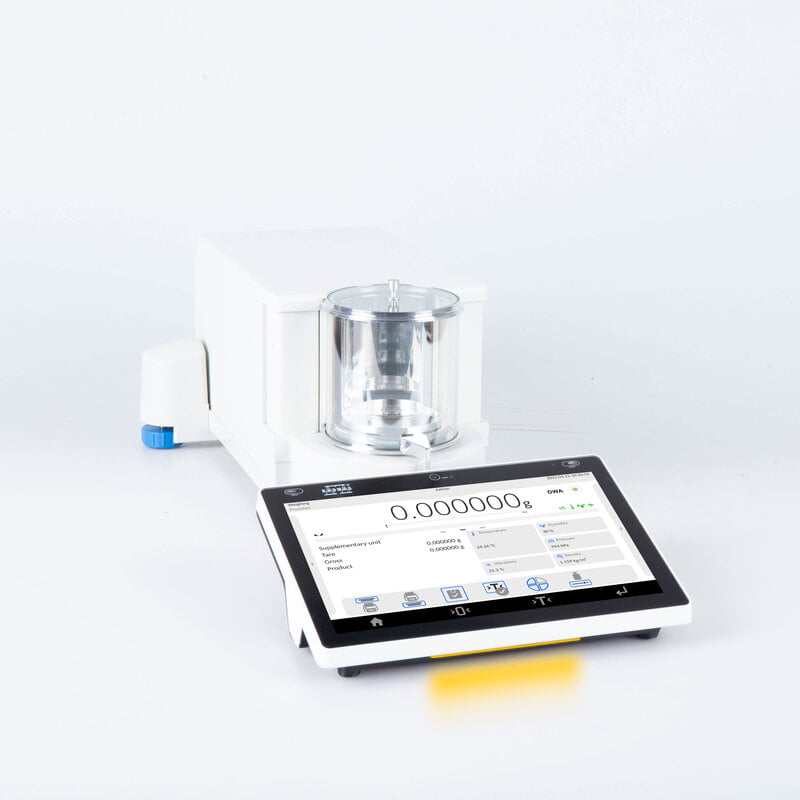

MYA 2.5Y Microbalance
Do you need a balance that not only determines weight with impressive accuracy, but also performs a digital audit, responds to your voice commands and sends you light messages?
If so, learn about the functionality of the ELLIPSIS series of balances:
Digital Weighing Auditor
Ensures that your balance is ready for use. It enables air buoyancy compensation in real-time. What is more, it informs about the need for a balance inspection or a periodic audit of the balance’s accuracy and sensitivity.
10-Inch Display
Bigger screen – 10’’ – means more information in one place. On the new ELLIPSIS terminal, you will see up to 3 screens, widgets, graphs, statuses, notes, handy measurement history.
Uncompromising User Verification
For the first time ever, the balance will verify the user using a password,
RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.
RFID card, fingerprint reader, facial recognition mechanism, or any combination of these.
Ambient Light – An Innovative Way for the Balance to Communicate With the User
The light colour will tell you about status, process results, procedures, or alerts.
Hotspot
Use the balance on any device connected to it. This can be a smartphone, tablet, or computer.
RFID
ELLIPSIS works with RFID tags* that can be used to tag your products or formulation ingredients in the database. They can also be used to identify a user.
Live Note – Note Down Your Conclusions
It’s the first time you can add a voice memo to a measurement series or procedure report. If you prefer to write it down, ELLIPSIS allows you to add a text note.
Handy Library
This is where a series of recent measurements or a report ready for digital signature, according to 21 CFR Part 11, can be found.
Widgets
Prepared to display what you need most at any given moment.
Automatic Leveling of the Balance ReflexLEVEL System
Instead of manually leveling your scale - level it automatically.
The ReflexLEVEL System saves you time and gives you maximum precision
in your measurements.
The ReflexLEVEL System saves you time and gives you maximum precision
in your measurements.
Smart Min Weight
The balance displays whether the value of the weight you want to weigh is below or above the minimum weight threshold.
21 CFR Part 11
Do you work in the pharmaceutical industry? Do you need a digital signature?
We are offering the laboratory balance which as a standalone fully meets the requirements of 21 CFR Part 11/ EU GMP Annex 11.
- Full data security
- Electronic signatures
- Validations
- Electronic records
- Audit trails
Two-point adjustment
Adjacency, which takes place at two measurement points instead of one, improves measurement precision over the full weighing range. And what does this mean for you? More accurate measurement.
Balance
- Maximum capacity [Max]2.1 g
- Minimum load0.1 mg
- Readability [d]1 µg
- Verification unit [e]1 mg
- Tare range-2.1 g
- Standard repeatability [5% Max]0.41 µg
- Standard repeatability [Max]1 µg
- Standard minimum weight (USP)0.82 mg
- Standard minimum weight (U=1%, k=2)0.082 mg
- Permissible repeatability [5% Max]0.8 µg
- Permissible repeatability [Max]1.5 µg
- Linearity±3 µg
- Eccentric load deviation3 µg
- Sensitivity time drift1×10⁻⁶/Year×Rt
- Stabilization timemax 8 s
- OIML ClassI
- Adjustmentinternal (automatic)
- Leveling systemautomatic - Reflex Level System
- Display10″ touchscreen
- Weighing chamber doorsautomatic
- Weighing chamber dimensionsø90×90 mm
- Weighing pan dimensionsø16 mm
- Packaging dimensions750×492×595 mm
- Net weight9.1 kg
- Gross weight16.5 kg
- Communication interfaceUSB-A ×2, USB-C, HDMI, Ethernet, Wi-Fi®, Hotspot
- Power supplyAdapter: 100 – 240V AC 50/60Hz 1A; 15V DC 2.4A Balance: 12 – 15V DC 1.4A max*
- Operating temperature+10 — +40 °C
- Operating temperature change rate±0.3°C/1h (±1°C/8h)
- Relative humidity change rate±1%/h (±4%/8h)
- Relative humidity40% — 80%
