Sieve Shaker
0.00SAR

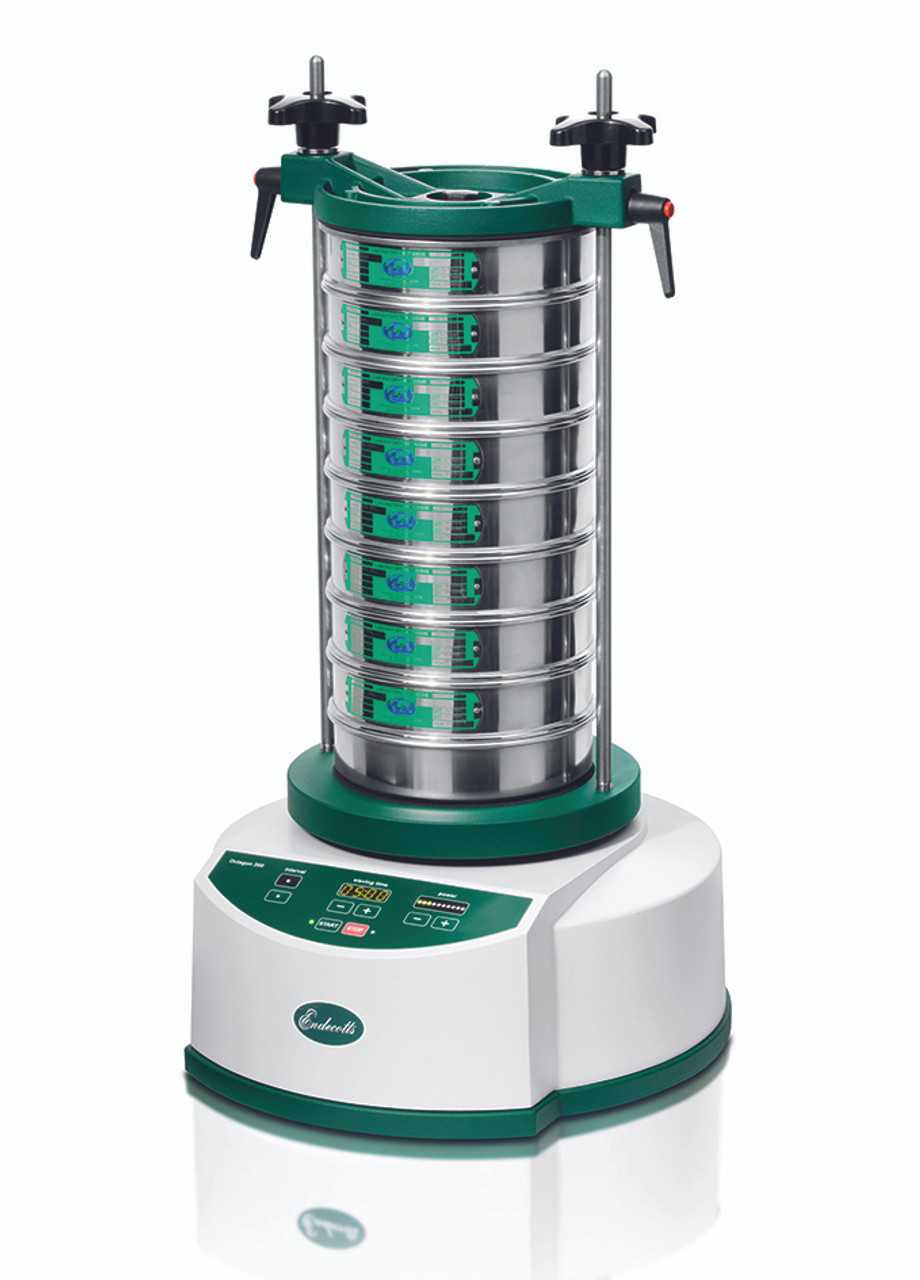

Sieve Shaker OCTAGON 200
Range: 20 µm to 125 mm Drive / sieving motion: electromagnetic 3D Amplitude: 0 - 3 mm* digital setting in 10 steps Sieve diameter: 100 / 200 mm 8''
Product Details
Specifications
PRODUCT ADVANTAGES
- Easy-to-use sieve clamping system
- Accepts up to 8 full height 200 mm (8") diameter sieves
- Suitable for dry and wet sieving
- 10 amplitude settings & digital timer
- 3D sieving motion allows for high separation efficiency and non blinding sieving action
- Different voltages available
- No mechanical moving parts
- Compact & portable
Sieve Shaker
- Range20 µm to 125 mm
- Drive / sieving motionelectromagnetic 3D
- Max. batch / feed capacity3 kg
- Max. number of sieves8 full height / 16 half height (200 mm / 8" sieves)
- Amplitude0 - 3 mm* digital setting in 10 steps
- Speed3,000 min-1 at 50 Hz
- Time displaydigital, 00:10-99:50 min
- Interval operationyes (one mode)
- Suitable for dry sievingyes
- Suitable for wet sievingyes
- Serial interfaceno
- Sieve diameter100 / 200 mm 8''
- Max. height of sieve stackup to 450 mm
- Clamping devicequick-release clamping system (included)
- Modelbenchtop
- Protection codeIP 21
- Electrical supplydifferent voltages available
- Power connection1 - Phase
- W x H x D418 x 232 x 435 mm
- Net weight~35 kg
- StandardsCE
